Overview

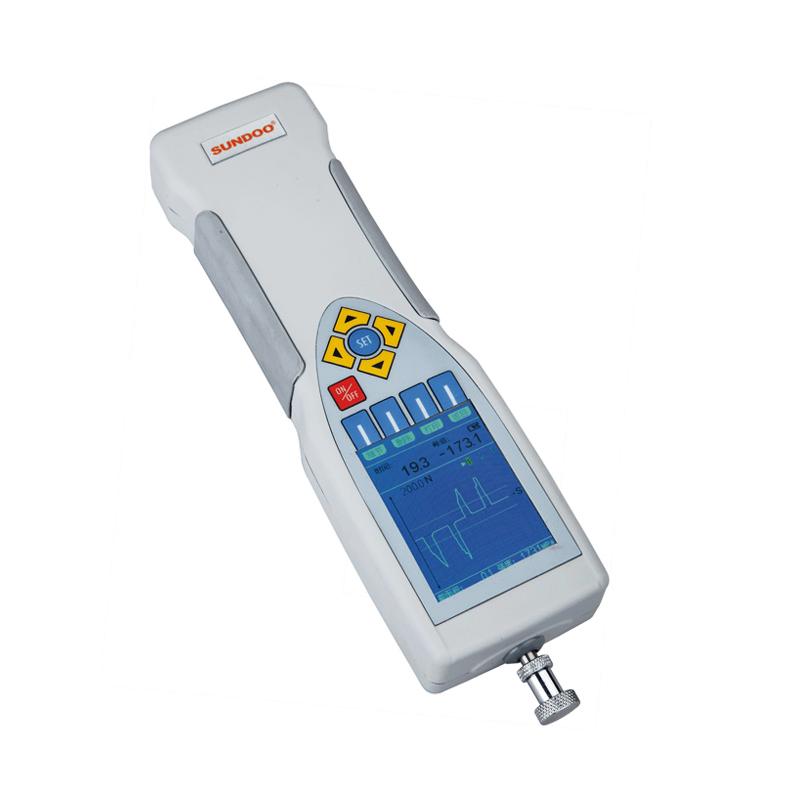

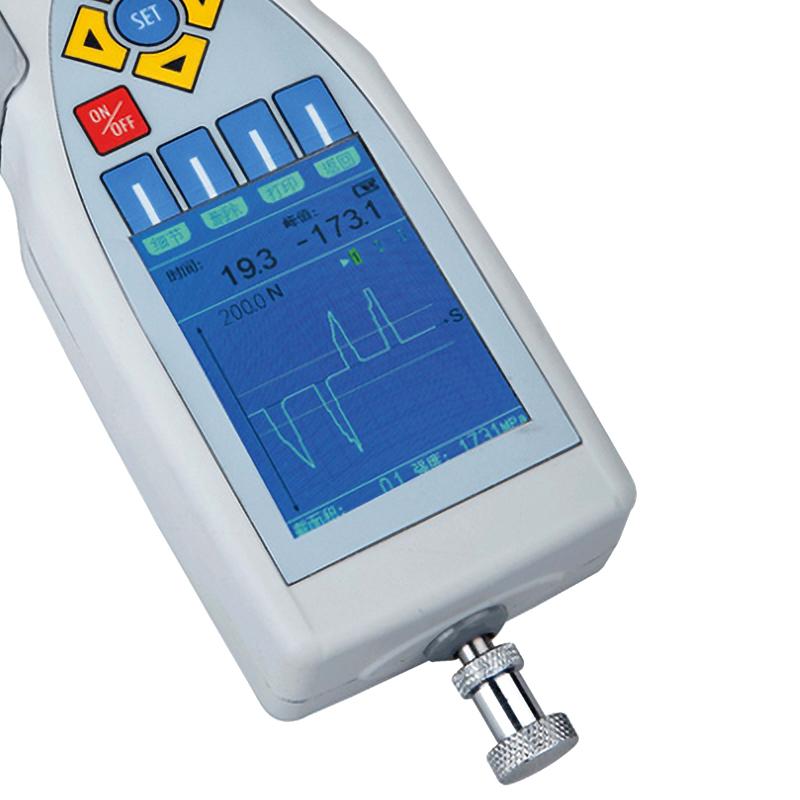

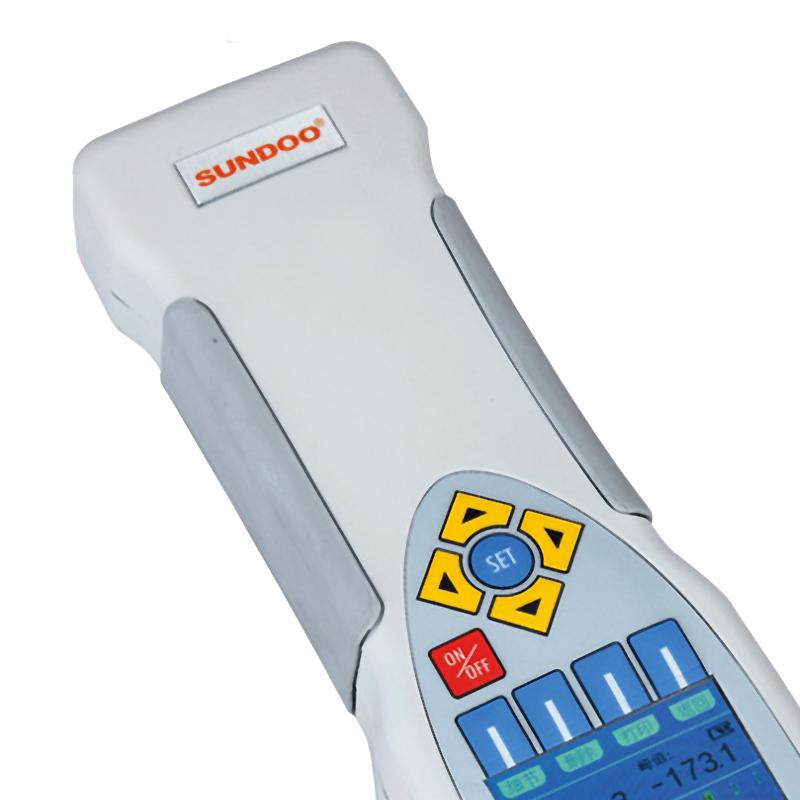

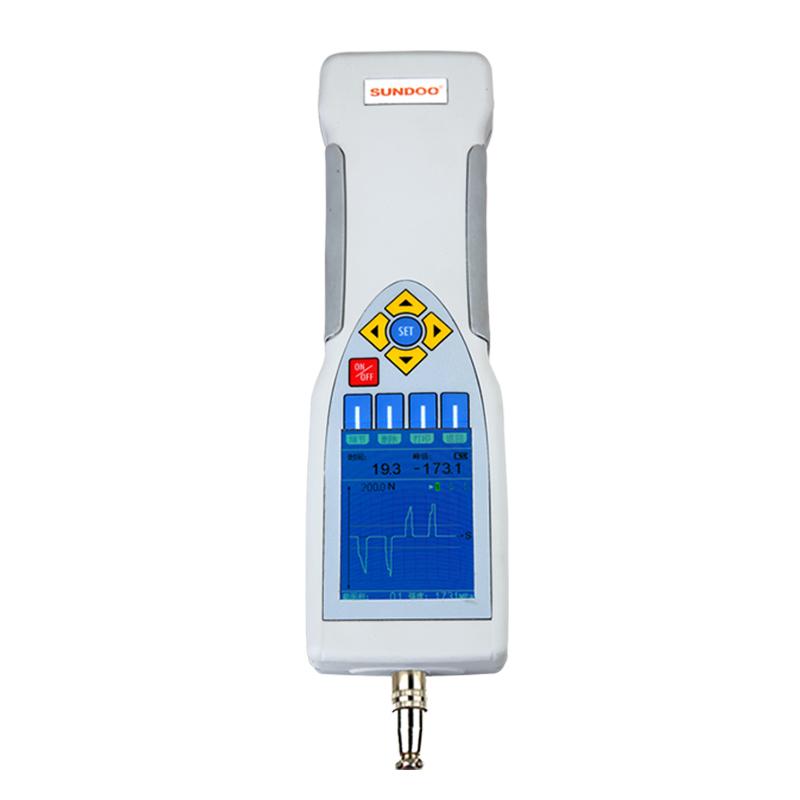

SP-50 Force Gauge is a small and simple thrust and tensile testing instrument produced by SUNDOO, with the characteristics of High Accuracy and high resolution. The figure shows that the Force Gauge adopts 240 × 320TFT color screen to display the whole process of Linear dispersion monitoring and testing. It is suitable for push-pull load testing, plug-in force testing, failure testing, etc. of various products. It can be combined with various machines and fixtures to form a small testing machine for different purposes.
Features
1. 240 × 320 pixel 65535 color TFT screen
2. Peak value, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process
3. Free setting of upper and lower deviation values
4. The screen can be flipped to display
5. Can store 3 sets of Linear dispersion data
6. Can store 70 sets of peak and tracking value data
7. Four units N, kgf, lbf, and ozf are automatically exchanged
8. With peak hold function, peak automatic release function and free release time setting
9. Test the material strength by entering the material cross-sectional area
10. Power-saving design for automatic shutdown without operation, free shutdown time setting
11. It can be connected to a dedicated machine to stop running when the predetermined force value is reached
12, USB port hot plug connection PC, through the supporting software to achieve a variety of modes of measurement, unlimited storage, transfer, traceability test Linear dispersion data and custom test reports
Principle
The SP-50 Force Gauge detects thrust or pull through the built-in Sensor, and displays the measurement data on the TFT color screen in real time, while recording the peak value and the test process Linear dispersion. The instrument can set the upper and lower deviation values for judgment, and automatically alarm through the buzzer. When connected to a special machine, the machine can be controlled to run, and the data transmission and various Measurement modes can be realized by connecting with the PC through the USB interface.
Applications
Product push-pull load test, insertion force test, failure test
Steps
1. Read the instructions carefully before use
2. Set the upper and lower limit deviation values as needed
3. Connect the testing device or fixture
4. Start testing and monitor the screen display
5. View Peak and Test Linear dispersion data
6. Connect to PC via USB interface for data transmission
Notice
• Operating temperature should be kept within the range of 20 ° C +/- 10 ° C
• The relative humidity should be controlled between 35% RH and 65% RH
• The surrounding environment should have no vibration source and no corrosion medium
• Please read the instructions carefully before use
• Make sure the battery is fully charged, Charging time is about 6 hours
