Overview

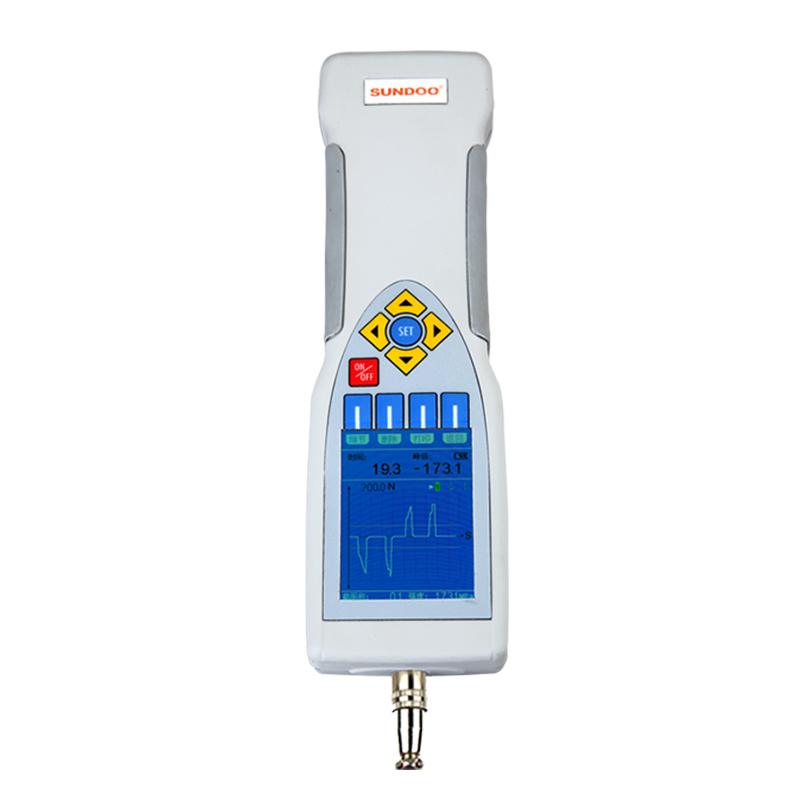

SP-100 Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO, with the characteristics of High Accuracy and high resolution. It uses 240 × 320TFT color screen to display the whole process of Linear dispersion monitoring and testing, supports upper and lower limit deviation setting judgment, buzzer automatic alarm setting, can store 3 groups of test Linear dispersion, four units are automatically exchanged, with peak hold function, automatic release function and power saving design.
Features
1.240 × 320 pixel 65535 color TFT screen
2. Peak, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process
3. Free setting of upper and lower deviation values
4. The screen can be flipped to display
5. Can store 3 sets of Linear dispersion data
6. Can store 70 sets of peak and tracking value data
7. Four units N, kgf, lbf, and ozf are automatically exchanged
8. With peak hold function, peak automatic release function and free setting of release time
9. Test material strength by entering material cross-sectional area
10. Power-saving design of automatic shutdown without operation, free shutdown time setting
11. Can be connected to a dedicated machine to stop running when the predetermined force value is reached
12. USB port hot-swappable connection PC, through supporting software to achieve multi-mode measurement, unlimited storage, transmission, traceability test Linear dispersion data, custom test report
Principle
SP-100 Force Gauge converts the signal into digital display on the TFT screen through the built-in Sensor measurement of thrust or tensile load. During the test process, the peak value, real-time value and test Linear dispersion are displayed in real time, and the upper and lower limit deviation judgment and automatic alarm are supported. The instrument can be connected to a special machine for control operation, and communicates with the PC through the USB interface for Data storage and analysis.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
1. Read the instructions carefully before use
2. Connect the power supply or ensure that the battery is fully charged
3. Set the upper and lower limit deviation value, unit, peak release time and other parameters as needed
4. Perform thrust or tensile tests, monitor Linear dispersion and values displayed on the screen
5. After the test is completed, the data can be stored or exported via USB connection to the PC
Notice
- Operating temperature: 20 ℃ +/- 10 ℃
- relative humidity: 35% RH~ 65% RH
- no vibration source and no corrosion medium around
- Please read the instructions carefully before use
