Overview

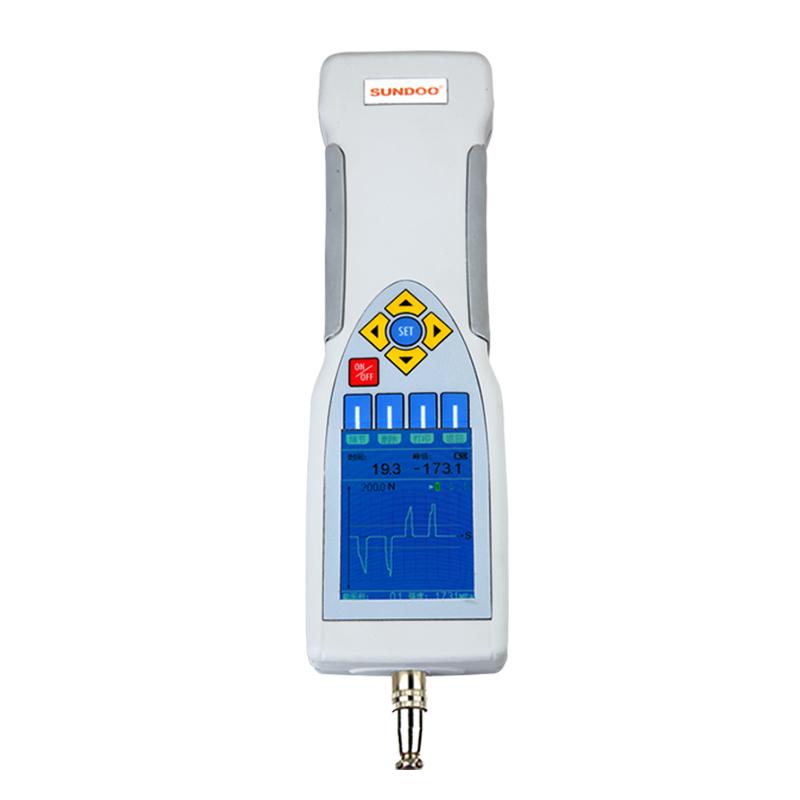

SP-500 Force Gauge is a small and simple thrust and tensile testing instrument produced by SUNDOO, with High Accuracy and high resolution characteristics. The instrument adopts 240 × 320TFT color screen display, which can monitor the whole process of testing Linear dispersion, and is suitable for push-pull load testing, plug-and-pull force testing and failure testing of various products.
Features
1.240 × 320 pixel 65535 color TFT screen
2. Peak, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process
3. Free setting of upper and lower deviation values
4. The screen can be flipped to display
5. Can store 3 sets of Linear dispersion data
6. Can store 70 sets of peak and tracking value data
7. Four units N, kgf, lbf, and ozf are automatically exchanged
8. With peak hold function, peak automatic release function and free setting of release time
9. Test material strength by entering material cross-sectional area
10. Power-saving design of automatic shutdown without operation, free shutdown time setting
11. Can be connected to a dedicated machine to stop running when the predetermined force value is reached
12. USB port hot-swappable connection PC, through supporting software to achieve multi-mode measurement, unlimited storage, transfer, traceability test Linear dispersion data and custom test report
Principle
The SP-500 Force Gauge uses a built-in Sensor to measure the push-pull force value. The Measurement range is 10%~ 100% FS, and the Indication Error is less than +/- 0.5%. The instrument is powered by a 7.2V nickel-metal hydride battery pack. The test data, Linear dispersion and peak information are displayed in real time through the TFT color screen, and can be connected to a special machine to control the operation.
Applications
Product push-pull load test, insertion force test, failure test
Steps
1. Read the instructions carefully before use
2. Connect the power supply or ensure that the battery is fully charged
3. Set the upper and lower limit deviation values as needed
4. Perform a push-pull test
5. Screen monitoring of test process and Linear dispersion
6. Store test data and Linear dispersion
7. Data transmission and analysis can be performed via USB connection to a PC
Notice
• Operating temperature: 20 ℃ +/- 10 ℃
• relative humidity: 35% RH~ 65% RH
• There should be no vibration source and no corrosion medium around
• Please read the instructions carefully before use
• Charger input is AC 220V 50Hz, output is DC 12V 300mA
• Charging time about 6 hours
• The battery life is about 40 hours, and the standby time is about 3 months
