Overview

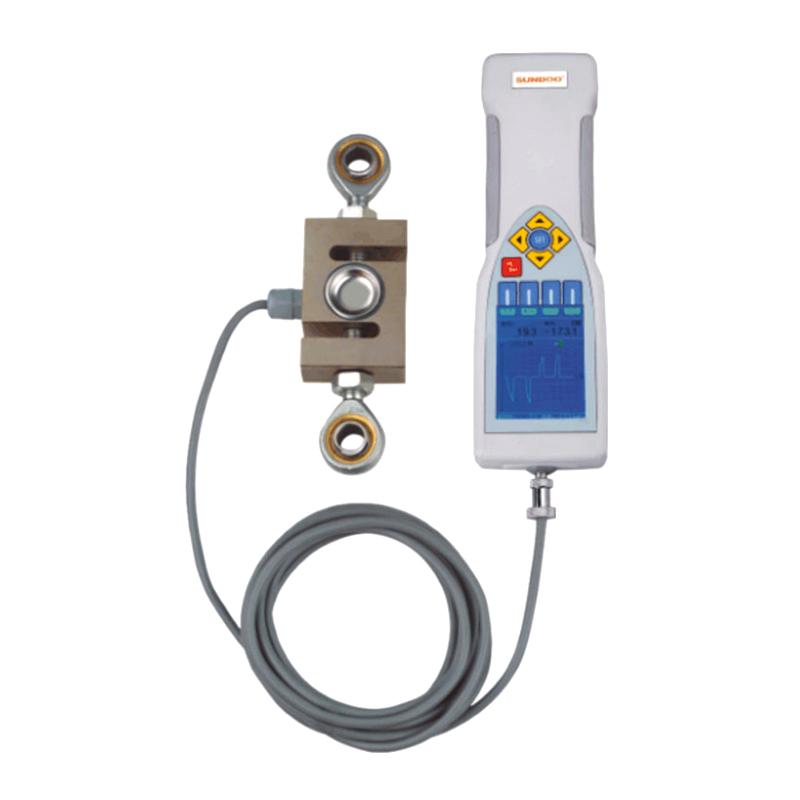

SP-1K Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO, with the characteristics of High Accuracy and high resolution. The explicit Force Gauge adopts 240 × 320TFT color screen display, which can monitor the whole process of Linear dispersion testing. It is suitable for push-pull load testing, plug-and-pull force testing, failure testing of various products, etc.
Features
1. High Accuracy and high resolution
2. TFT true color screen, peak value, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process
3. Free setting of upper and lower deviation values
4. The screen can be flipped to display
5. Can store 3 sets of Linear dispersion data
6. Can store 70 sets of peak and tracking value data
7. Four units KN, Tf, Klbf, Kozf (N, kgf, lbf, ozf) are automatically exchanged
8. With peak hold function, peak automatic release function and free release time setting
9. Test the material strength by entering the material cross-sectional area
10. Power-saving design for automatic shutdown without operation, free shutdown time setting
11. It can be connected to a dedicated machine to stop running when the predetermined force value is reached
12, USB port hot plug connection PC, through the supporting software to achieve a variety of modes of measurement, unlimited storage, transmission, traceability test Linear dispersion data, custom test report
Principle
The Force Gauge detects thrust or pull through an S-type external Sensor, converts mechanical signals into electrical signals, and displays test values and Linear dispersion in real time on the TFT color screen after processing. The instrument has upper and lower limit setting functions. When the test value exceeds the set range, the buzzer automatically alarms, and can be connected to a special machine to realize force value control.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
1. Read the instructions carefully before use
2. Connect Sensor and testing device
3. Set the upper and lower limit deviation values
4. Choose the right Measurement unit
5. Start testing and monitor Linear dispersion display
6. Data storage and management
7. Data transfer via USB connection to PC
Notice
• Operating temperature should be kept within the range of 20 ° C +/- 10 ° C
• The relative humidity should be controlled between 35% RH and 65% RH
• There should be no vibration source and no corrosion medium around the instrument
• Please read the instructions carefully before use
• Charger input is AC 220V 50Hz, output is DC 12V 300mA
• Charging time about 6 hours
• The battery life is about 40 hours, and the standby time is about 3 months
