Overview

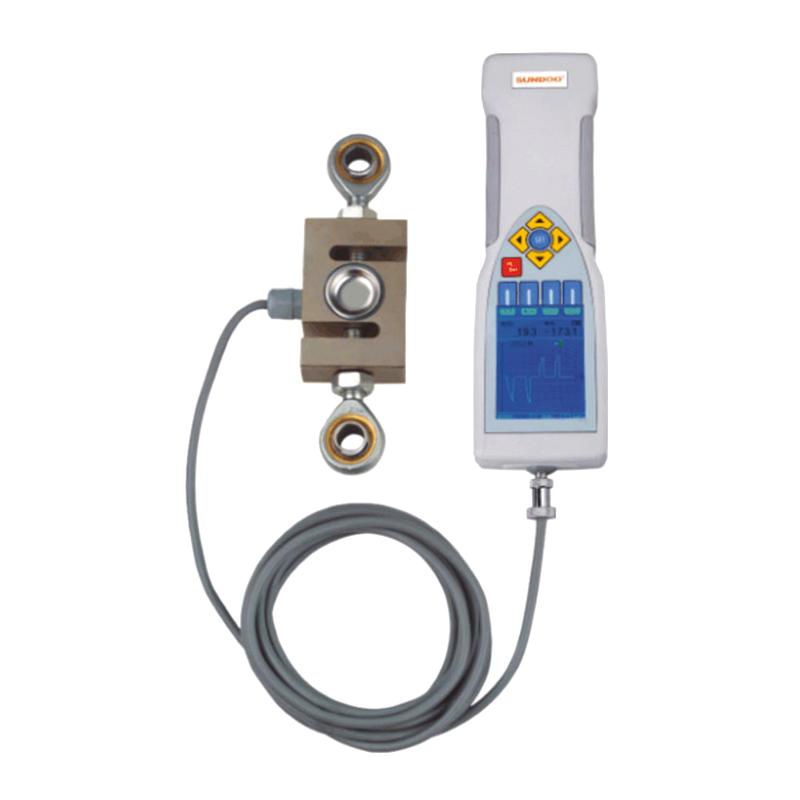

SP-2K Force Gauge is a small and simple thrust and tensile testing instrument produced by SUNDOO. It has the characteristics of High Accuracy and High resolution, 240 × 320TFT color screen display Linear dispersion monitoring and testing the whole process. The instrument is suitable for push-pull load test, plug-and-pull force test and failure test of various products. It can be combined with a machine and a fixture to form a small testing machine.
Features
1. High Accuracy and high resolution
2. TFT true color screen, peak value, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process
3. Free setting of upper and lower deviation values
4. The screen can be flipped to display
5. Can store 3 sets of Linear dispersion data
6. Can store 70 sets of peak and tracking value data
7. Four units KN, Tf, Klbf, Kozf (N, kgf, lbf, ozf) are automatically exchanged
8. With peak hold function, peak automatic release function and free release time setting
9. Test the material strength by entering the material cross-sectional area
10. Power-saving design for automatic shutdown without operation, free shutdown time setting
11. It can be connected to a dedicated machine to stop running when the predetermined force value is reached
12, USB port hot plug connection PC, through the supporting software to achieve a variety of modes of measurement, unlimited storage, transfer, traceability test Linear dispersion data and custom test reports
Principle
SP-2K Force Gauge uses S-type external Sensor for thrust and tension measurement, collects data through High Accuracy Sensor, and displays the test Linear dispersion and value in real time on the TFT color screen. The instrument has the function of setting the upper and lower limit deviation. When the test value exceeds the set range, the buzzer automatically alarms, and can be connected to a special machine to realize force value control.
Applications
Product push-pull load test, insertion force test, failure test
Standards
Indication Error < +/- 0.5%
Steps
1. Read the instructions carefully before use
2. Connect the testing device and fixture (need to be purchased separately)
3. Set the upper and lower limit deviation values and units
4. Conduct a thrust or pull test
5. Linear dispersion and data monitoring
6. Store test results
7. Transfer data via USB connection to PC
Notice
• Operating temperature: 20 ℃ +/- 10 ℃
• relative humidity: 35% RH~ 65% RH
• There should be no vibration source and no corrosion medium around
• Please read the instructions carefully before use
• The testing device needs to be purchased separately
