Overview

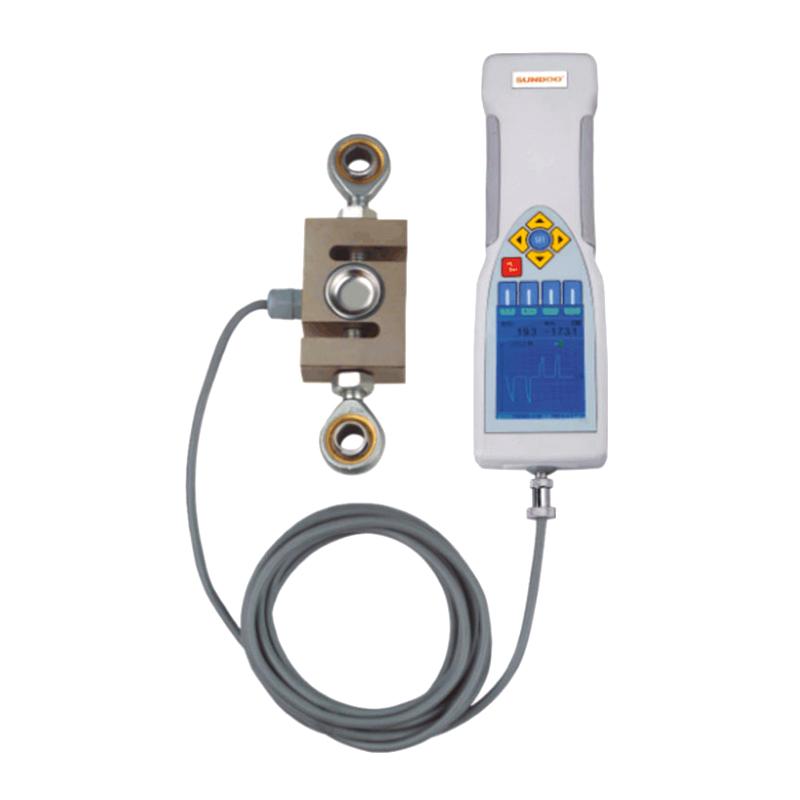

SP-5K Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO, which has the characteristics of High Accuracy and High resolution, TFT color screen display Linear dispersion monitoring and testing the whole process. The instrument is suitable for push-pull load test, plug-in force test and failure test of various products, and can be combined with a machine and a fixture to form a small testing machine.
Features
1. High Accuracy and high resolution;
2. TFT true color screen, peak value, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process;
3. The upper and lower limit deviation values are freely set and judged;
4. The screen can be flipped to display;
5. Can store 3 groups of Linear dispersion data;
6. Can store 70 sets of peak and tracking value data.
7. The four units KN, Tf, Klbf, and Kozf (N, kgf, lbf, ozf) are automatically exchanged.
8. With peak hold function, peak automatic release function and free release time setting;
9. Test the material strength by entering the material cross-sectional area.
10. Power-saving design for automatic shutdown without operation, with free shutdown time setting.
11. It can be connected to a dedicated machine to stop running when the predetermined force value is reached.
12, USB port hot plug connection PC, through the supporting software to achieve a variety of modes of measurement, unlimited storage, transfer, traceability test Linear dispersion data and custom test reports.
Principle
SP-5K Force Gauge uses S-type external Sensor for load measurement. Measurement range is 10%~ 100% FS. High Accuracy Sensor collects thrust or tension data, which is displayed on the TFT color screen in real time, and can be connected to the PC through the USB interface for data transmission and analysis.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Standards
Indication Error < +/- 0.5%
Steps
1. Read the instructions carefully before use.
2. Connect the power supply or ensure that the battery is fully charged.
3. Set the upper and lower limit deviation values, units and other parameters as needed;
4. Perform thrust or tensile test, monitor screen displays Linear dispersion and data;
5. After the test is completed, the data can be transferred via a USB connection to a PC.
Notice
• Operating temperature: 20 ℃ +/- 10 ℃;
• relative humidity: 35% RH~ 65% RH;
• No vibration source and no corrosion medium around;
Make sure to fully understand the function of the instrument before use.
• The testing device needs to be purchased separately.
