Overview

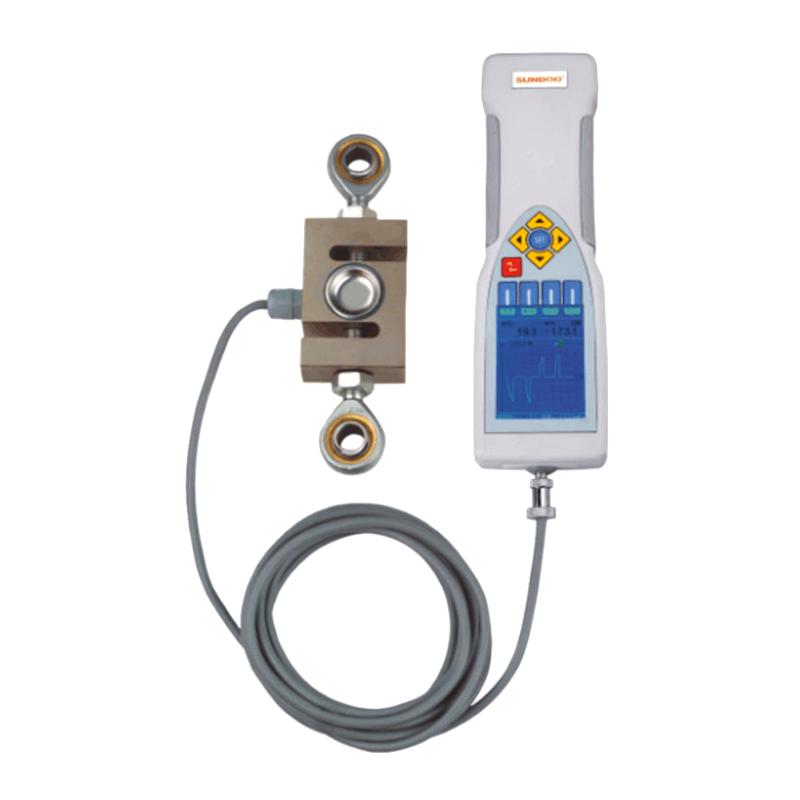

SP-10K Force Gauge is a small and simple thrust and tensile testing instrument produced by SUNDOO, with High Accuracy and high resolution. The graphic Force Gauge adopts 240 × 320TFT color screen display, which can monitor the whole process of testing Linear dispersion. It is suitable for push-pull load test, plug-and-pull force test and failure test of various products, and can combine various machines and fixtures to form small testing machines for different purposes.
Features
1. High Accuracy and high resolution
2. TFT true color screen, peak value, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process
3. Free setting of upper and lower deviation values
4. The screen can be flipped to display
5. Can store 3 sets of Linear dispersion data
6. Can store 70 sets of peak and tracking value data
7. Four units KN, Tf, Klbf, Kozf (N, kgf, lbf, ozf) are automatically exchanged
8. With peak hold function, peak automatic release function and free release time setting
9. Test the material strength by entering the material cross-sectional area
10. Power-saving design for automatic shutdown without operation, free shutdown time setting
11. It can be connected to a dedicated machine, so that when the predetermined force value is reached, the machine stops running
12, USB port hot plug connection PC, through the supporting software to achieve a variety of modes of measurement, unlimited storage, transmission, traceability test Linear dispersion data, custom test report
Principle
SP-10K Force Gauge adopts S-type external Sensor structure. Measurement range is 10%~ 100% FS. Sensor detects thrust or tensile load, converts the signal into electrical signal and displays test value and Linear dispersion in real time on TFT color screen. The instrument can set the upper and lower limit deviation values, and the buzzer will automatically alarm when the test value exceeds the set range.
Applications
Push-pull load test, insertion force test, failure test
Steps
1. Read the instructions carefully before use
2. Ensure that the working environment meets the requirements: Operating temperature 20 ℃ +/- 10 ℃, relative humidity 35% RH~ 65% RH, no vibration source and no corrosion medium around
3. Connect the power supply or ensure that the battery is fully charged
4. Set test parameters as needed: upper and lower limit deviation value, unit selection, peak release time, etc
5. Connect the testing device or fixture
6. Start testing and monitor real-time data and Linear dispersion displayed on the screen
7. Save data or export to PC after the test is completed
Notice
• Please read the instructions carefully before use
• Ensure that the Working Ambient Temperature is within the range of 20 ℃ +/- 10 ℃
• Ensure that the relative humidity of the working environment is within the range of 35% RH~ 65% RH
Make sure there are no vibration sources around the working environment
• Ensure that there is no corrosion medium around the working environment
• Note that the battery life is about 40 hours, charge it in time
• Charging time is about 6 hours, using the matching charger
• It is recommended to shut down when not in use for a long time to save power
