Overview

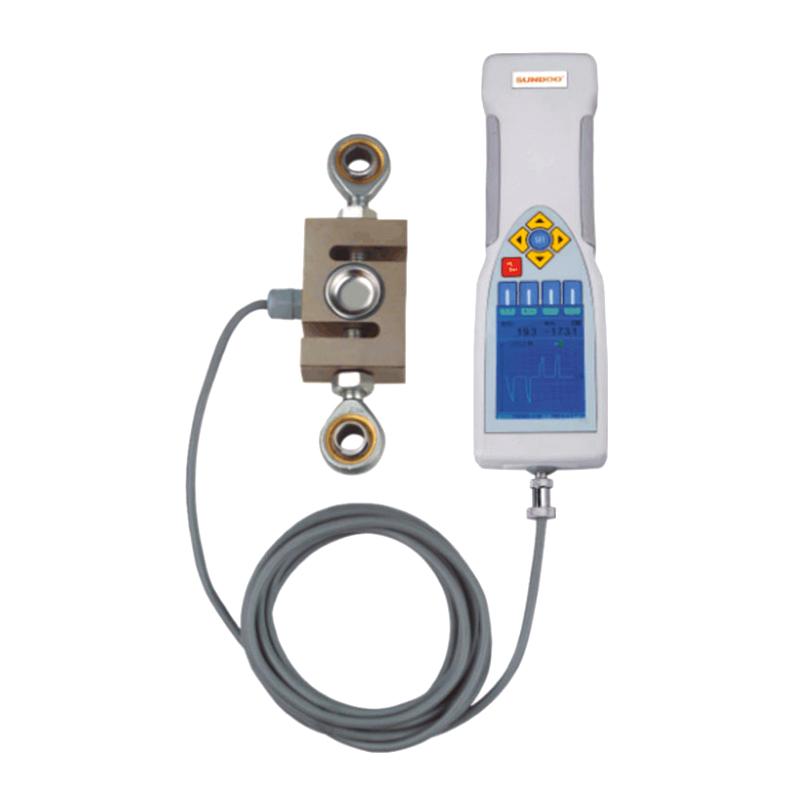

SP-20K Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO, with High Accuracy and high resolution. It uses 240 × 320TFT color screen to display the whole process of Linear dispersion monitoring and testing, supports upper and lower limit deviation setting judgment, buzzer automatic alarm setting, can store 3 groups of test Linear dispersion, four units are automatically swapped, and has peak holding, automatic shutdown power saving design and USB connection to PC and other functions.
As a new generation of general-purpose Portable graphic display push-pull load testing instrument, SP-20K has the characteristics of small size, light weight, easy to carry, multi-function, etc. It is suitable for push-pull load testing, insertion force testing and failure testing of various products. It can be combined with machine and fixture to form a small testing machine.
Features
1. High Accuracy and high resolution;
2. TFT true color screen, peak value, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process;
3. The upper and lower limit deviation values are freely set and judged;
4. The screen can be flipped to display;
5. Can store 3 groups of Linear dispersion data;
6. Can store 70 sets of peak and tracking value data.
7. The four units KN, Tf, Klbf, and Kozf (N, kgf, lbf, ozf) are automatically exchanged.
8. With peak hold function, peak automatic release function and free release time setting;
9. Test the material strength by entering the material cross-sectional area.
10. Power-saving design for automatic shutdown without operation, with free shutdown time setting.
11. It can be connected to a dedicated machine to stop running when the predetermined force value is reached.
12, USB port hot plug connection PC, through the supporting software to achieve a variety of modes of measurement, unlimited storage, transfer, traceability test Linear dispersion data and custom test reports.
Principle
SP-20K Force Gauge uses S-type Sensor external structure for load measurement. Measurement range is 10%~ 100% FS, Indication Error is less than +/- 0.5%. The instrument collects thrust or tension data in real time through the Sensor, and displays peak value, real-time value and test process Linear dispersion on the TFT color screen to realize the whole process monitoring. The user can set the upper and lower limit deviation values. When the test value exceeds the set range, the buzzer automatically alarms, and supports peak hold and automatic release functions at the same time. Connect to the PC through the USB interface, and the supporting software can expand the Measurement mode and data management functions.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Notice
Before using this instrument, please read the instructions carefully in order to make full use of the instrument's functions and obtain the correct load value during testing.
Environmental requirements: Operating temperature 20 ℃ +/- 10 ℃; relative humidity 35% RH~ 65% RH; no vibration source and no corrosion medium around.
