Overview

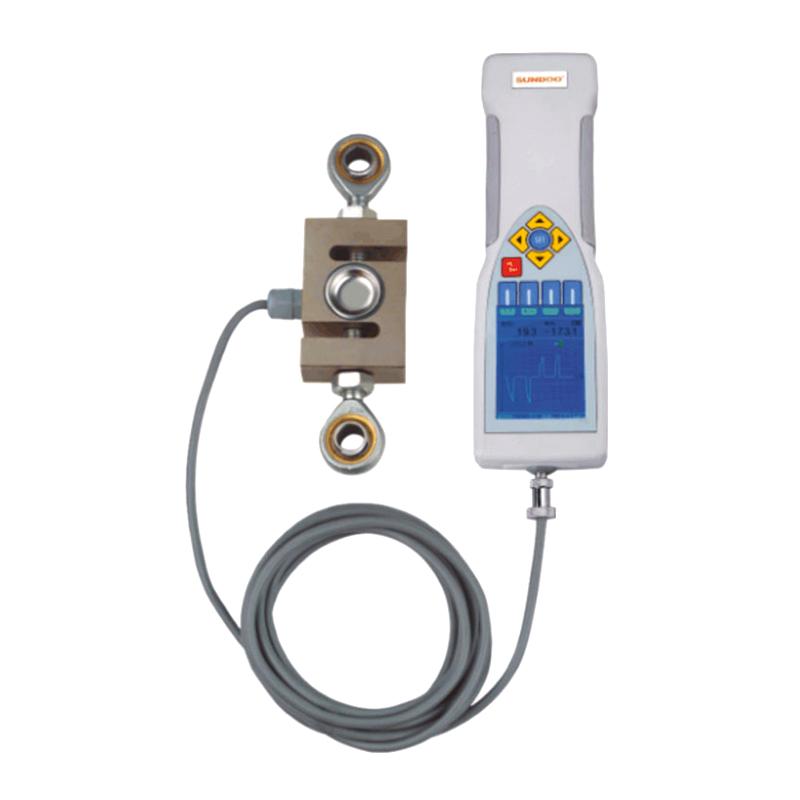

SP-50K Force Gauge is a small and simple thrust and tensile testing instrument produced by SUNDOO, with the characteristics of High Accuracy and high resolution. The figure shows that the Force Gauge uses 240 × 320TFT color screen to display the whole process of Linear dispersion monitoring and testing. It is suitable for push-pull load testing, plug-in force testing, failure testing, etc. of various products. It can be combined with various machines and fixtures to form a small testing machine for different purposes.
Features
1. High Accuracy and high resolution
2. TFT true color screen, peak value, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process
3. Free setting of upper and lower deviation values
4. The screen can be flipped to display
5. Can store 3 sets of Linear dispersion data
6. Can store 70 sets of peak and tracking value data
7. Four units KN, Tf, Klbf, Kozf (N, kgf, lbf, ozf) are automatically exchanged
8. With peak hold function, peak automatic release function and free release time setting
9. Test the material strength by entering the material cross-sectional area
10. Power-saving design for automatic shutdown without operation, free shutdown time setting
11. It can be connected to a dedicated machine to stop running when the predetermined force value is reached
12, USB port hot plug connection PC, through the supporting software to achieve a variety of modes of measurement, unlimited storage, transmission, traceability test Linear dispersion data, custom test report
Principle
SP-50K Force Gauge uses S-type Sensor external structure, Measurement range is 10%~ 100% FS, through the Sensor to detect the thrust or pull signal, after processing, the test data, Linear dispersion and peak information are displayed in real time on the graphic display screen.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Standards
Indication Error < +/- 0.5%
Steps
1. Read the instructions carefully before use
2. Connect the power supply or ensure that the battery is fully charged
3. Set the upper and lower limit deviation values as needed
4. Select the appropriate Measurement unit
5. Perform a thrust or pull test
6. Monitoring test process and Linear dispersion through screen
7. Store test data and Linear dispersion
8. Data transmission and analysis can be performed via USB connection to a PC
Notice
• Operating temperature: 20 ℃ +/- 10 ℃
• relative humidity: 35% RH~ 65% RH
• There should be no vibration source and no corrosion medium around
• Please read the instructions carefully before use
• The testing device needs to be purchased separately
