Overview

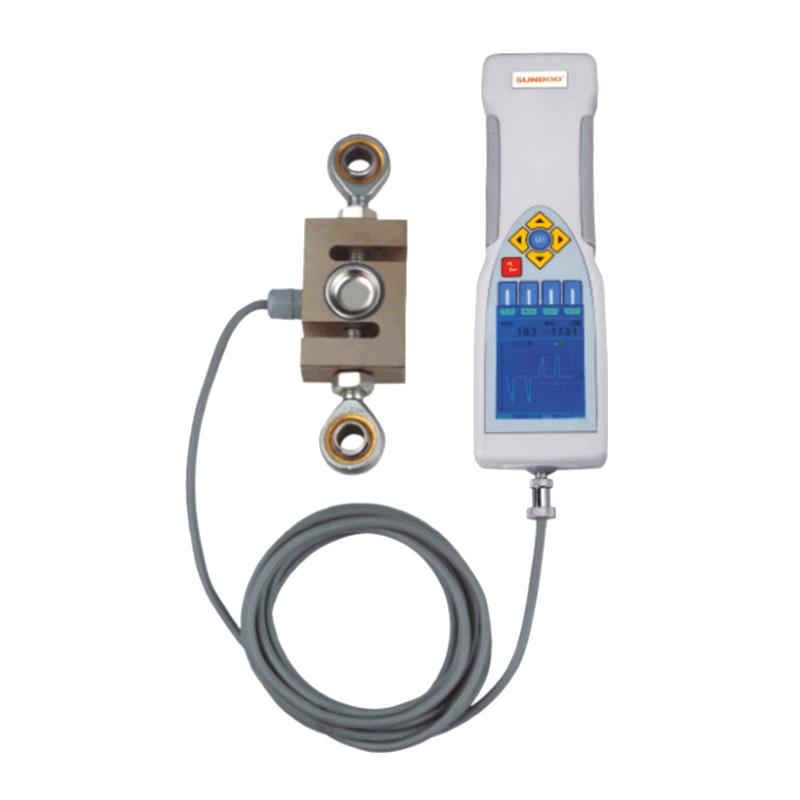

SP-100K Force Gauge is a small and simple thrust and tension test instrument produced by SUNDOO. It has High Accuracy and high resolution. It uses 240 × 320TFT color screen to display the whole process of Linear dispersion monitoring and testing. It is suitable for push-pull load testing, plug-in force testing, failure testing of various products. The instrument can be combined with various machines and fixtures to form a small testing machine for different purposes. It has the characteristics of small size, light weight and convenient portability.
Features
1. High Accuracy and high resolution;
2. TFT true shadow screen, peak value, real-time value and test process Linear dispersion display on the same screen, can monitor and trace the whole test process;
3. The upper and lower limit deviation values are freely set and judged;
4. The screen can be flipped to display;
5. Can store 3 groups of Linear dispersion data;
6. Can store 70 sets of peak and tracking value data.
7. The four units KN, Tf, Klbf, and Kozf (N, kgf, lbf, ozf) are automatically exchanged.
8. With peak hold function, peak automatic release function and free release time setting;
9. Test the material strength by entering the material cross-sectional area.
10. Power-saving design for automatic shutdown without operation, with free shutdown time setting.
11. It can be connected to a dedicated machine to stop running when a predetermined force value is reached.
12, USB port hot plug connection PC, through the supporting software to achieve a variety of modes of measurement, unlimited storage, transmission, traceability test Linear dispersion data, custom test report.
Principle
SP-100K Force Gauge adopts S-type Sensor external structure, Measurement range is 10%~ 100% FS, through Sensor detection of thrust or tension load, converts the signal into digital display on TFT color screen, real-time monitoring of test process Linear dispersion, and supports upper and lower deviation setting and automatic alarm of buzzer. The instrument can store test data and connect to PC through USB interface for data transmission and analysis.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
1. Read the instructions carefully before use.
2. Connect the power supply or ensure that the battery is fully charged.
3. Set the upper and lower limit deviation value, unit, peak release time and other parameters as needed;
4. Perform thrust or tension tests, monitor real-time values and Linear dispersion displayed on the screen;
5. After the test is completed, view and store the Peak and Linear dispersion data;
6. Connect the PC to transfer data through the USB interface.
Notice
• Operating temperature: 20 ℃ +/- 10 ℃;
• relative humidity: 35% RH~ 65% RH;
• No vibration source and no corrosion medium around;
• Make sure to read the instructions fully before use for correct operation.
• The battery life is about 40 hours, and the standby time is about 3 months. Pay attention to charging in time;
• Charger input is AC 220V 50Hz, output is DC 12V 300mA, Charging time is about 6 hours.
