Overview

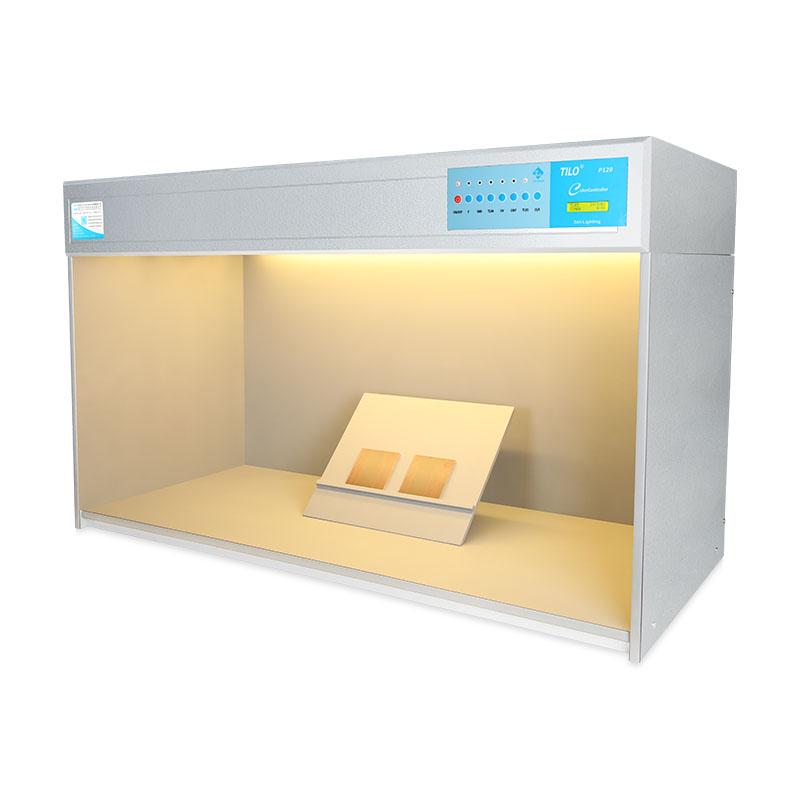

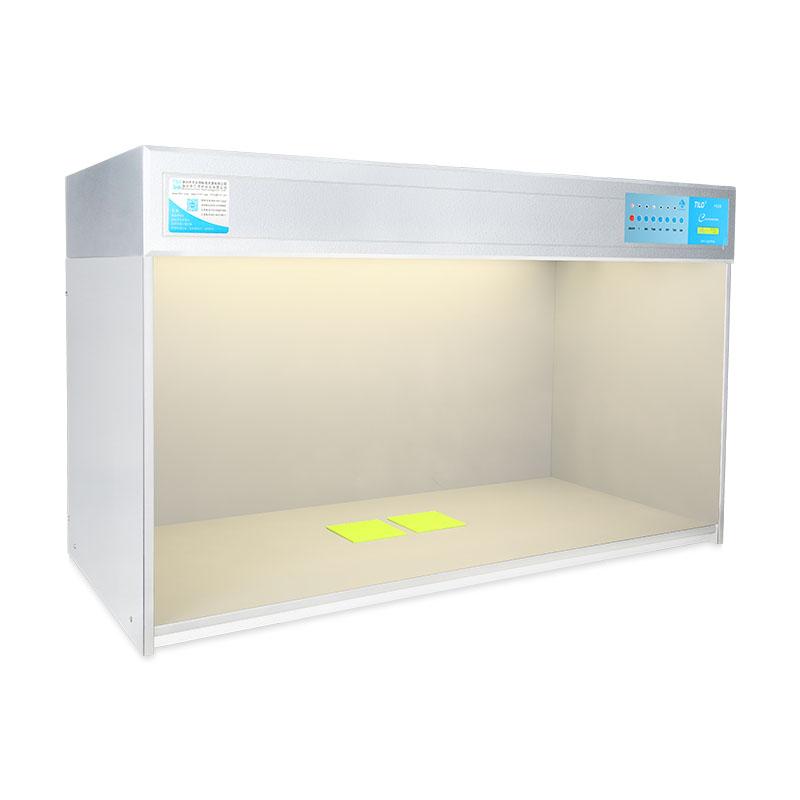

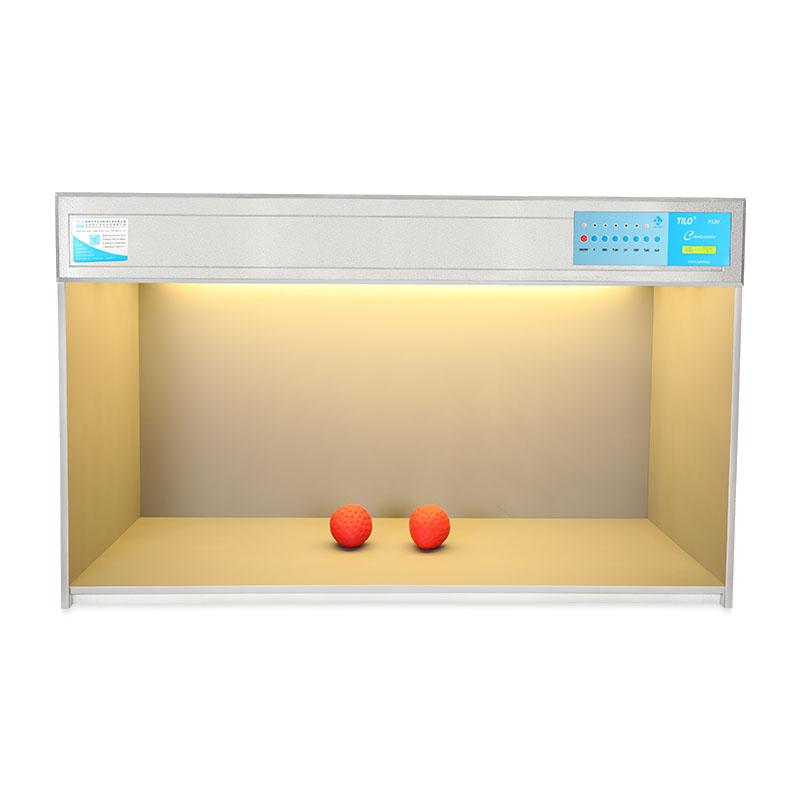

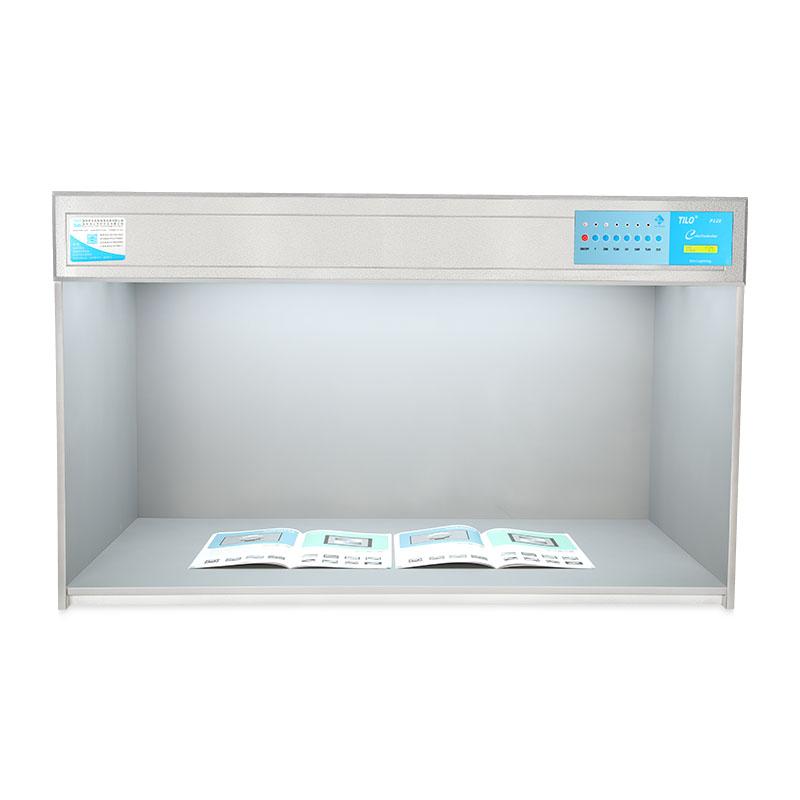

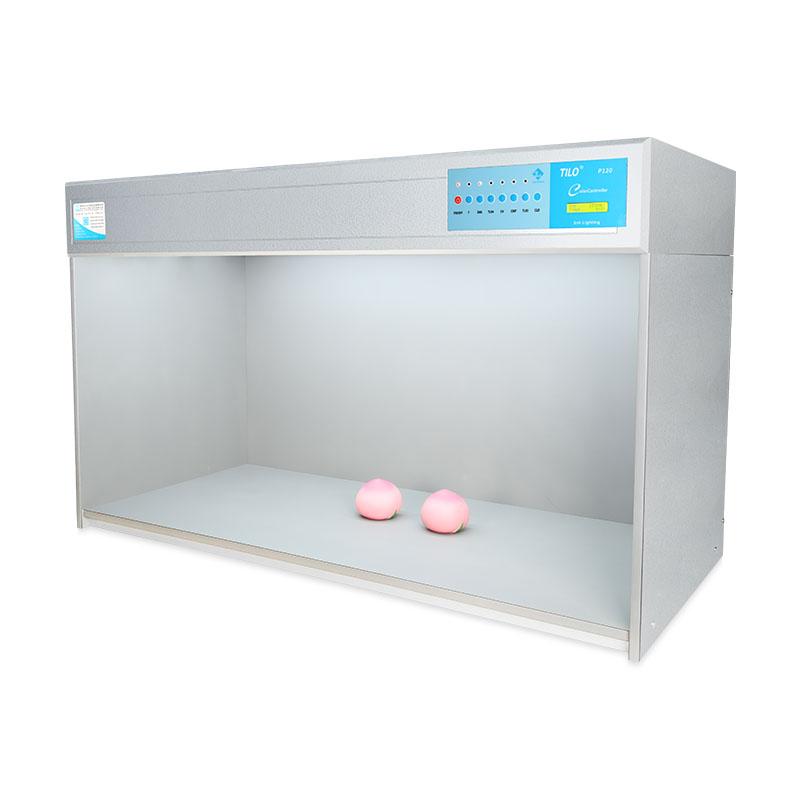

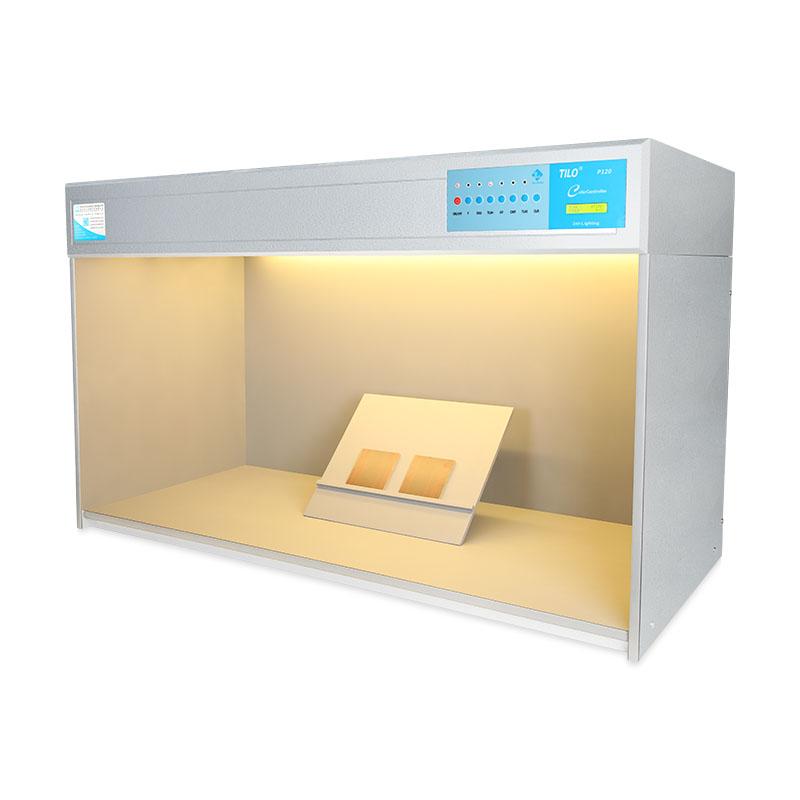

TILO P120 Six Illuminant Color Assessment Cabinet is an extra large Color Assessment Cabinet with a size of 1310x600x800mm and an inner space size of 1280x590x590mm. Equipped with D65, TL84, F, UV, CWF, TL83 (U30) six Illuminants, the use time, name and switching times of each Illuminant are displayed through a digital timer. It is suitable for color management in all walks of life and is used to accurately check the Color deviation of goods.
Features
1. Display the usage time, name and number of switches of each Illuminant
2. Illuminant automatic switching, with Metamerism function
3. No preheating, no flashing, can ensure fast and reliable evaluation of Color
4. Low energy consumption, no heat (no heat dissipation required), high luminous efficiency
5. More complete configuration of British and American standard commonly used Illuminants
6. Illuminant name can be changed, adding Illuminant is more convenient
Principle
The product controls the switching and display of six kinds of Illuminants (D65, TL84, F, UV, CWF, TL83 (U30)) through digital timer, realizes automatic Illuminant switching and Metamerism functions, and can emit light stably without preheating. Color deviation is accurately calibrated.
Applications
Color management in all industries
Standards
British and American Standard Common Illuminants
Steps
1. Power supply voltage 220V/50Hz
2. Select the desired Illuminant by digital timer
3. Observe and proofread Color deviation
Notice
• Power supply voltage 220V/50Hz
• Check Illuminant Status Before Use
• Avoid use in humid or high temperature environments
