Overview

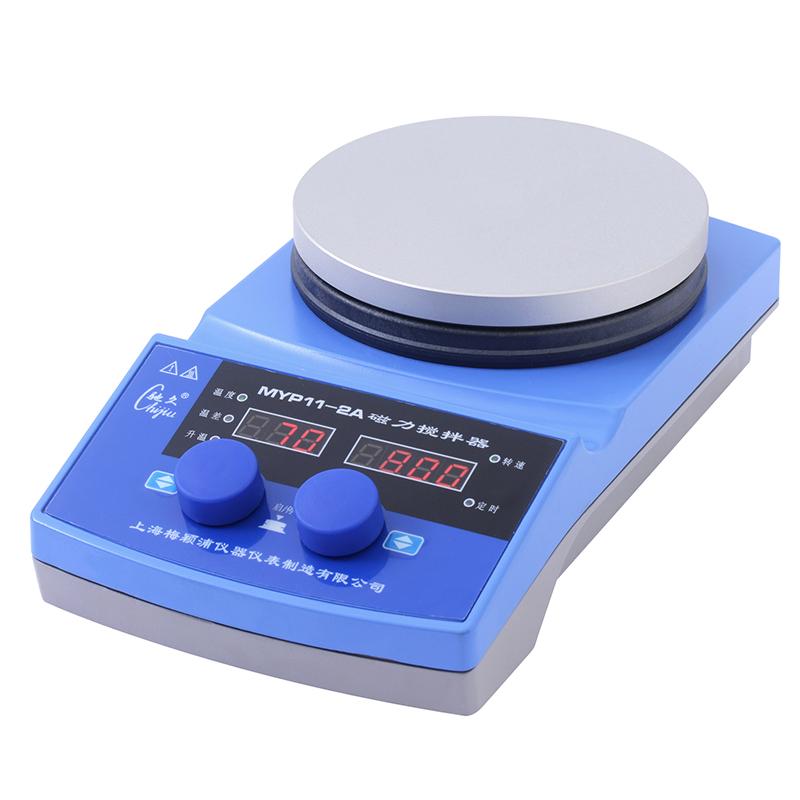

CHIJIU MYP11-2A thermostatic Magnetic Stirrer adopts aluminum alloy die-casting shell, single chip microcomputer control, swirl/spin encoder operation, with Rotation speed digital display, temperature digital display, timing and other functions. Two digital display windows can display the stirring Rotation speed and liquid temperature at the same time, or switch the display timing remaining time and heating plate temperature. Driven by three-phase brushless DC motor, the speed regulation ratio is large, the Rotation speed is stable, the stirring force is strong, and the temperature control is accurate.
Features
1. With fast heating and strong stirring force, precise temperature control and timing functions, suitable for unmanned operation.

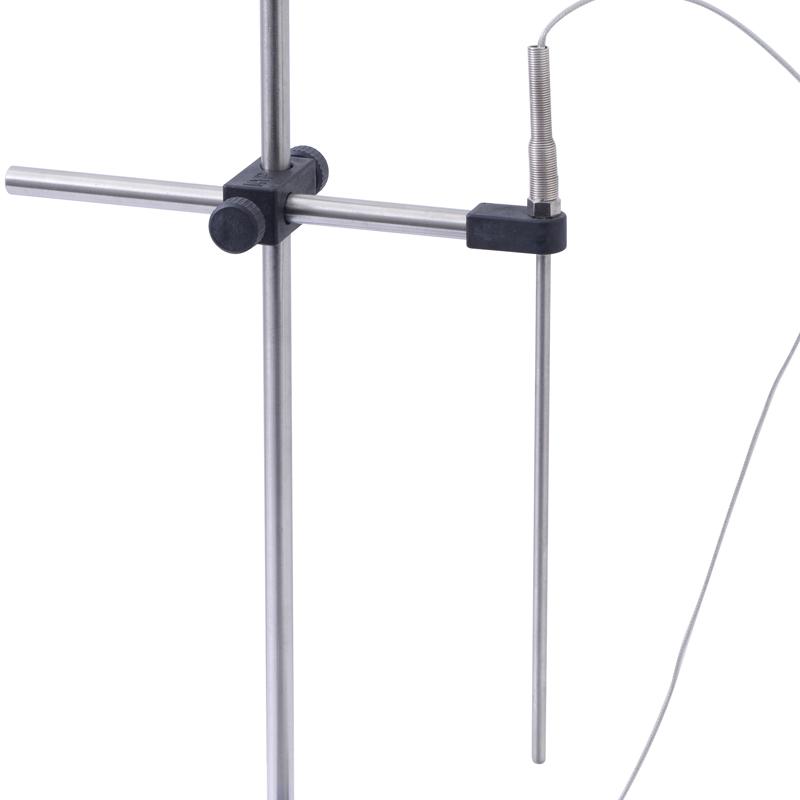

2. No need for another thermostat or contact thermometer, the temperature can be accurately controlled by a random platinum resistance Sensor.
3. It has a temperature protection function to prevent accidents caused by overheating of the electric heating plate.
4. Strong magnetic force and soft start function can prevent stirrer hoppers.
5. Three-phase brushless DC motor drive, Rotation speed is stable, speed ratio is large, 50rpm can stabilize Rotation speed.

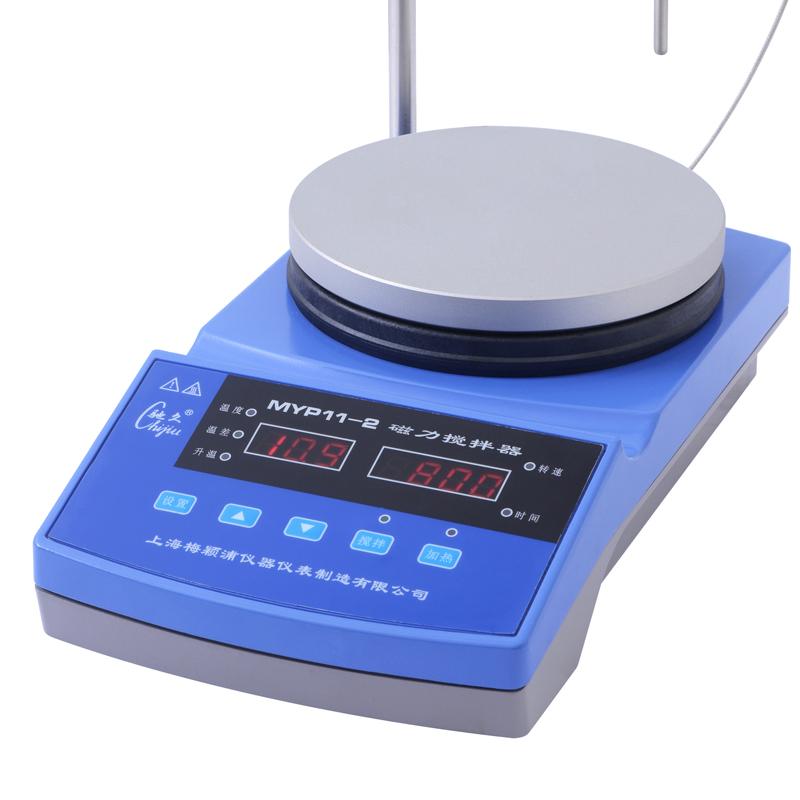

6. Two LED digital display windows can display Rotation speed, timing time, liquid temperature and heating plate temperature respectively.
7. Microcomputer control, setting data can be stored.
8. Novel Appearance, panel width, suitable viewing angle, easy to operate.
Principle
Rotation speed and timing time are set by swirl/spin encoder. Microcontroller controls three-phase brushless DC motor to drive stirring. Platinum Resistance Sensor monitors temperature in real time to achieve accurate temperature control and stable stirring. Digital display window and indicator light provide real-time status feedback.
Steps
1. Use the left encoder to set the liquid temperature, and press the button next to it to switch the set temperature difference.
2. Rotation speed and timing time using right encoder.
3. Press the encoder knob to start or stop the stirring and heating functions.
4. Clockwise swirl/spin encoder knob is up, reverse is down.
Notice
• The power socket is well grounded.
• Stirrer heating stirring, heating plate temperature is very high, do not touch, to prevent burns, power cord and Sensor lead should also be away from the heating plate.
• When operating the stirring, the liquid should be prevented from spilling on the instrument, and the appearance of the instrument should be cleaned after each use. Damage caused by corrosion is not guaranteed.
