Overview

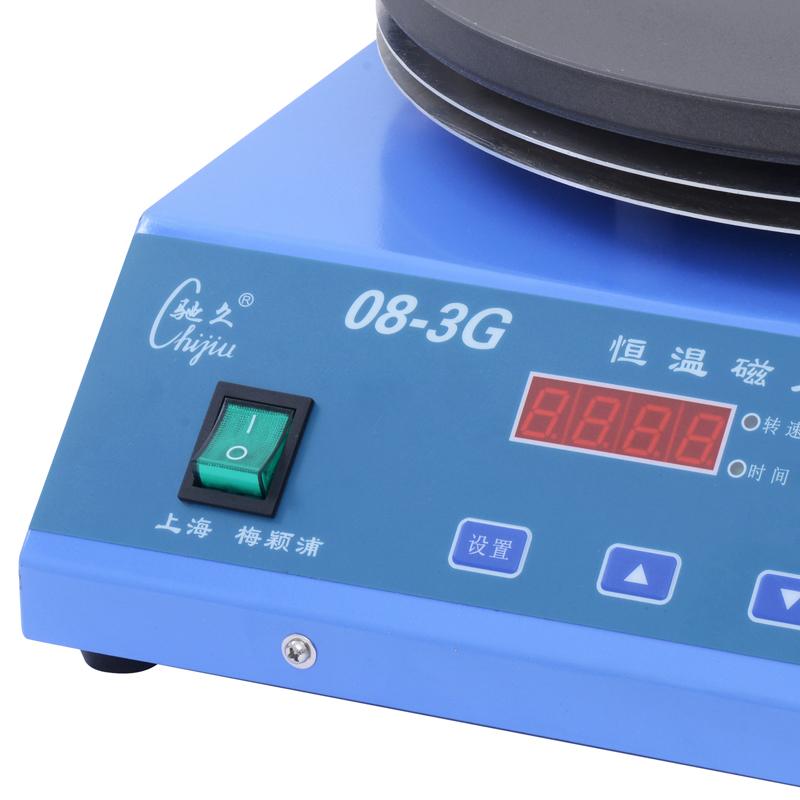

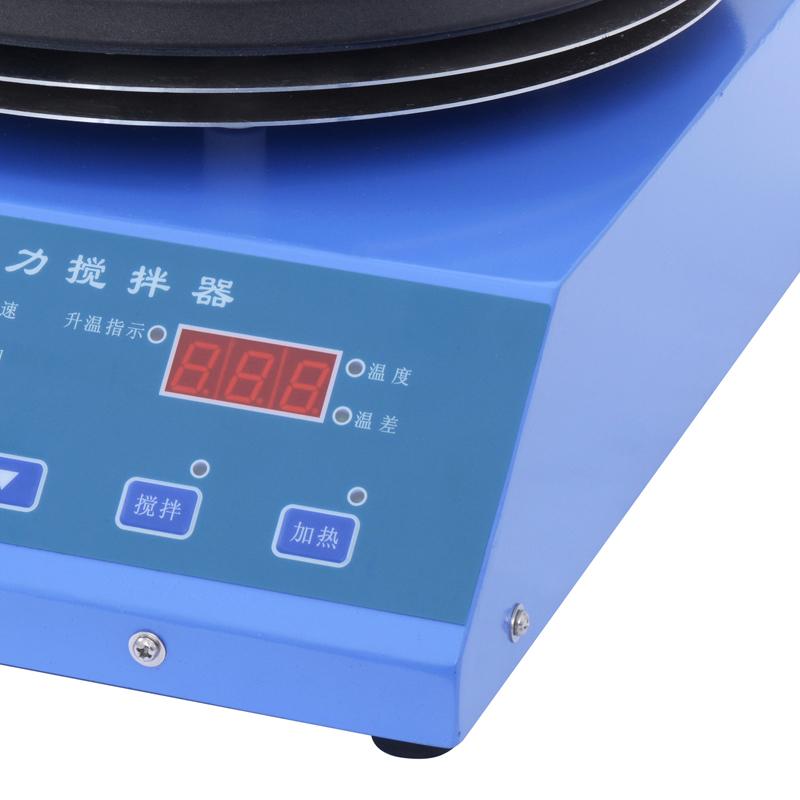

CHIJIU 08-3G thermostatic Magnetic Stirrer is controlled by a single chip microcomputer. It is an improved version of the 08-3 thermostatic Magnetic Stirrer. It uses a touch button to digitally set the stirring Rotation speed, heating temperature, timing time, etc., to maintain the brushless DC motor drive, Rotation speed is stable, temperature control is accurate, and it is more convenient to use. Large capacity and high power, suitable for chemical, scientific research and other industries.
Features
1. Adopt microcontroller control
2. Touch the button number to set the parameters
3. Brushless DC motor drive
4. Rotation speed stable, accurate temperature control
5. Large capacity, high power design
6. Double automatic temperature control of heating plate temperature and liquid temperature
7. The temperature difference coefficient of 1 to 250 can be set
Principle
This machine adopts dual automatic temperature control system of heating plate temperature and liquid temperature, and adapts to different use conditions by setting the temperature difference coefficient. The maximum temperature of heating plate = liquid set temperature + temperature difference value + (liquid set temperature - liquid measured temperature) × 2 to ensure temperature control accuracy. Driven by brushless DC motor, stable stirring is achieved.
Applications
Chemical industry, scientific research
Steps
1. Place the Stirrer smoothly, connect the temperature sensor, place the beaker and stirrer, insert the temperature sensor, and turn on the power
2. Press the Settings button to set Rotation speed
3. Press the setting button to set the time (set to 0, it will be irregular)
4. Press the setting button to set the liquid temperature
5. Press the setting button to set the temperature difference value
6. Press the setting button twice to complete the setting.
7. Press the stir button to start stirring
8. Press the heating button to start heating
9. It can be heated under stirring state, press the heating button again to stop heating
10. Press the Settings button to view the current running status
11. Restart after stopping and run according to the last setting
12. Rotation speed can be adjusted under working conditions
13. Miscellaneous parameters need to turn off the stirring button before resetting
14. There is an alarm prompt at the end of the time
15. Short-term stop without turning off the power supply
Notice
• Power sockets should be well grounded
• The liquid in the beaker should not be too full to avoid overflowing when stirring
• The temperature of the heating plate is very high when working, and the power cord, temperature sensor lead, etc. should be kept away, let alone contacted
• If the machine is not used for a long time, it should be unplugged
• Stirrer must be held accountable when working, just in case
• Failures such as leakage caused by corrosion and moisture are not mass problems and are not covered by the warranty
• Do not pull the power cord hard
