Overview

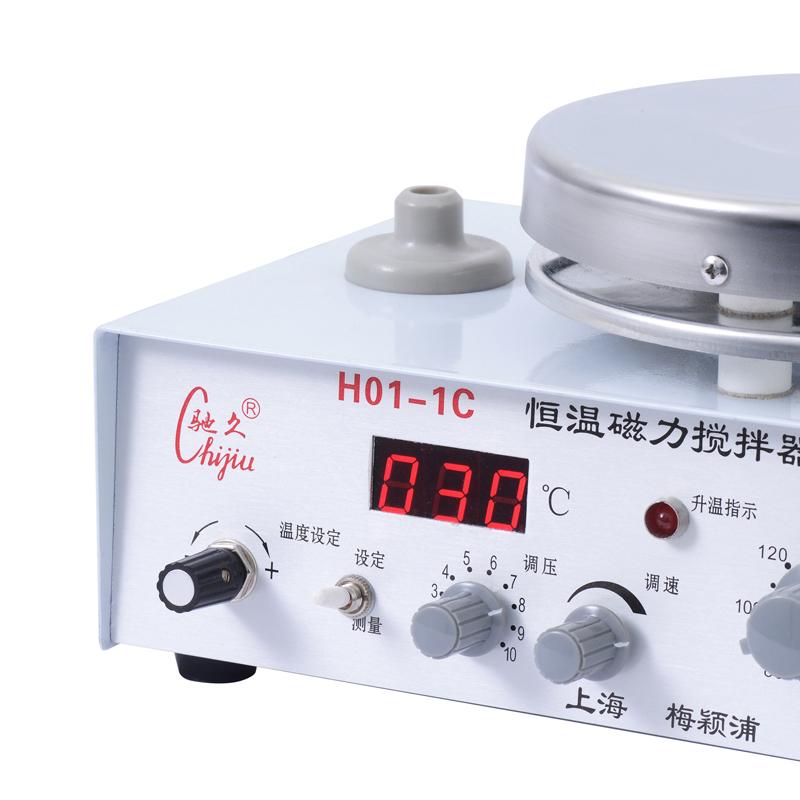

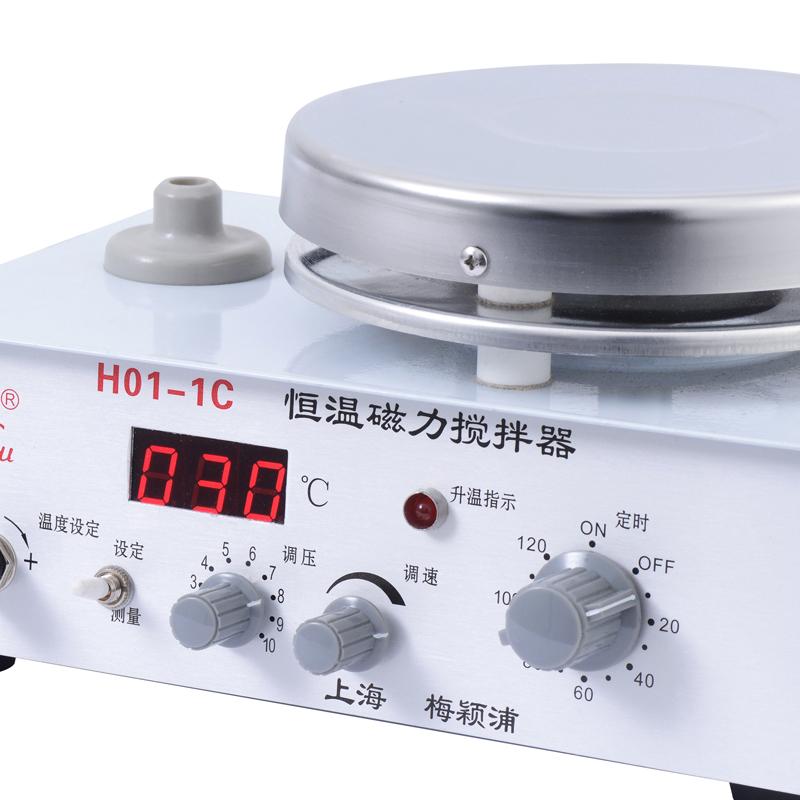

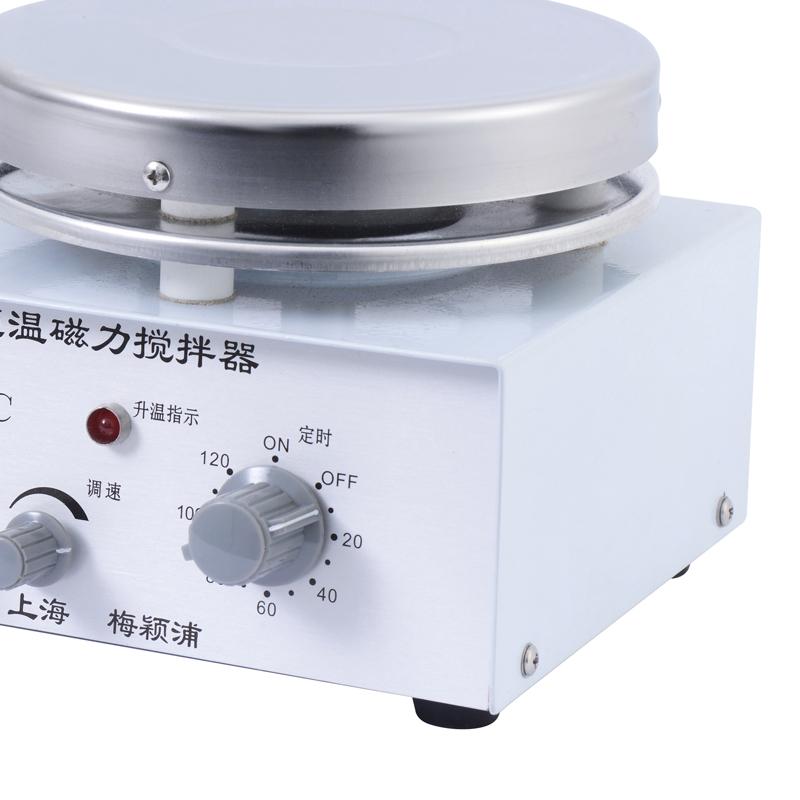

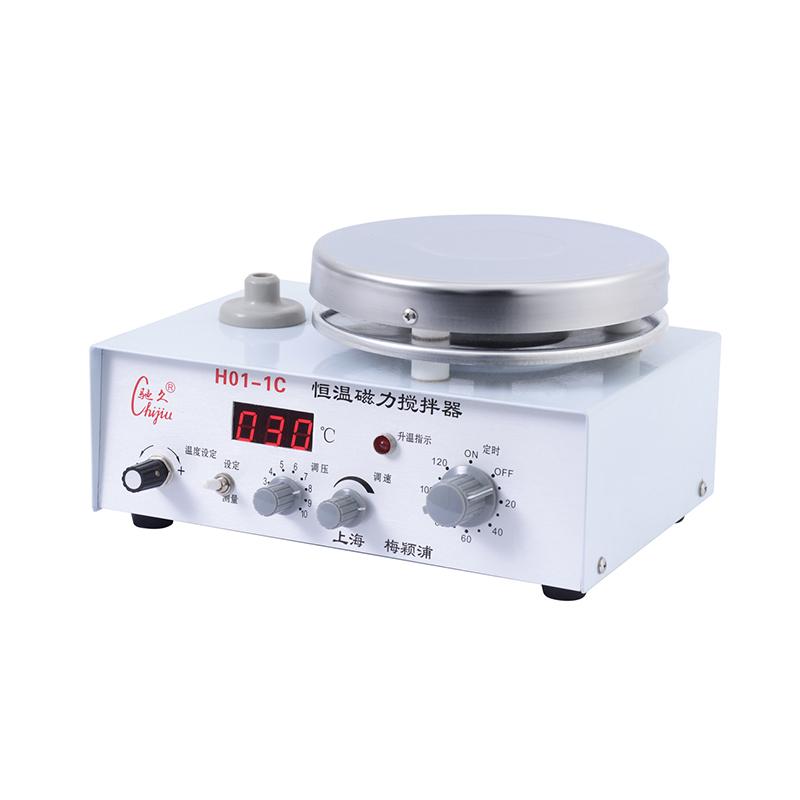

H01-1C digital thermostatic Magnetic Stirrer is a newly developed product of CHIJIU brand, which has the functions of timing, digital automatic temperature control and adjustable Heating power. Driven by brushless DC motor, with strong stirring force, it is suitable for thermostatic stirring occasions in various fields.
Features
1. With timing function
2. Digital display temperature automatic control
3. Heating power adjustable
4. Driven by brushless DC motor, strong stirring force
5. Suitable for a variety of thermostatic stirring occasions
Principle
The brushless DC motor drives the magnetic stirrer swirl/spin to realize stirring, and cooperates with the temperature sensor to detect the temperature of the liquid medicine. The heating power is controlled by setting the measurement switch and the temperature setting knob to realize thermostatic control. The heating power is continuously adjustable between 20-400W, and the heating state is automatically adjusted according to the temperature difference.
Steps
1. Connect the temperature sensor to the rear terminal
2. Put the beaker in the middle of the table, put in the stirrer, insert the temperature sensor, and adjust the speed and pressure knob counterclockwise to the bottom
3. Plug in the power supply, set the timing knob, adjust the speed control knob clockwise and start stirring.
4. Set the target temperature by setting the measurement switch and temperature setting knob, observe the display window and adjust the heating voltage knob
5. If you do not need heating but want to measure the temperature, adjust the temperature setting knob to be lower than room temperature, and set the measurement switch to Measuring location
6. Unplug the power supply after use, and clean the appearance after chilling down
Notice
• Power sockets should be well grounded
• The beaker should not be too full when using to prevent overflow when stirring
