Overview

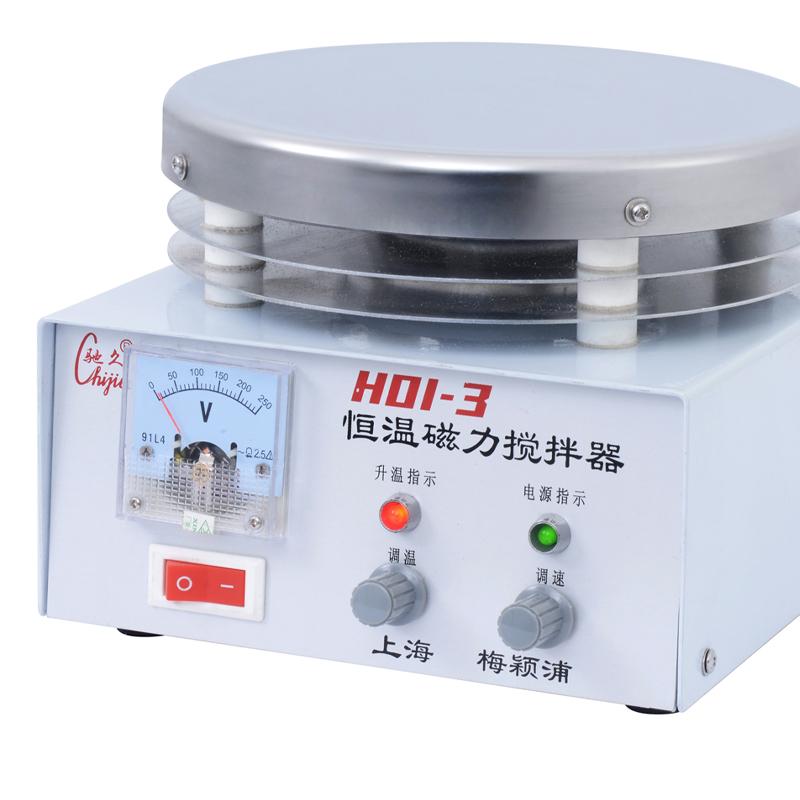

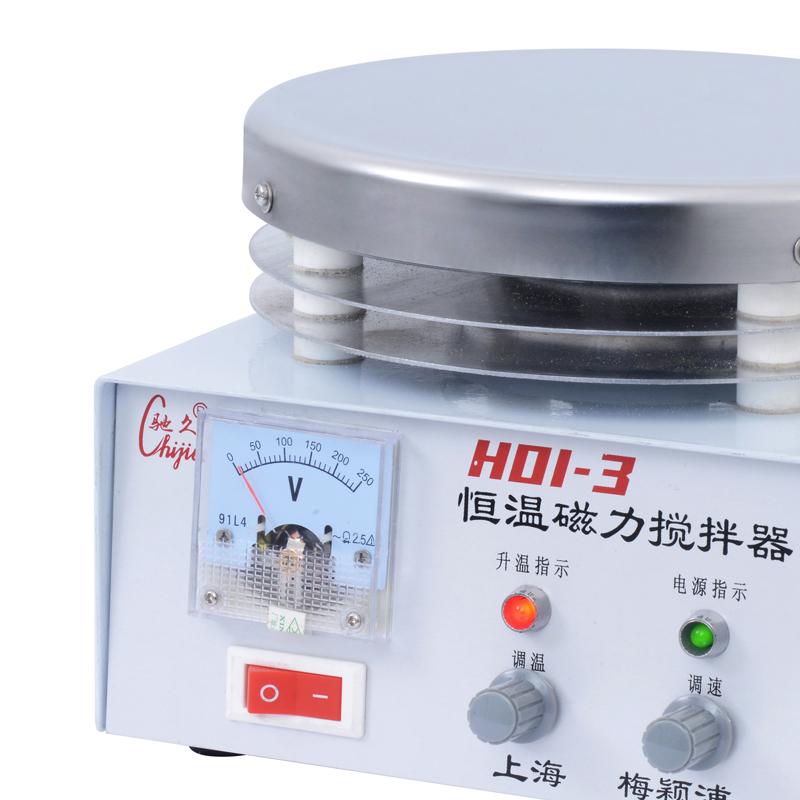

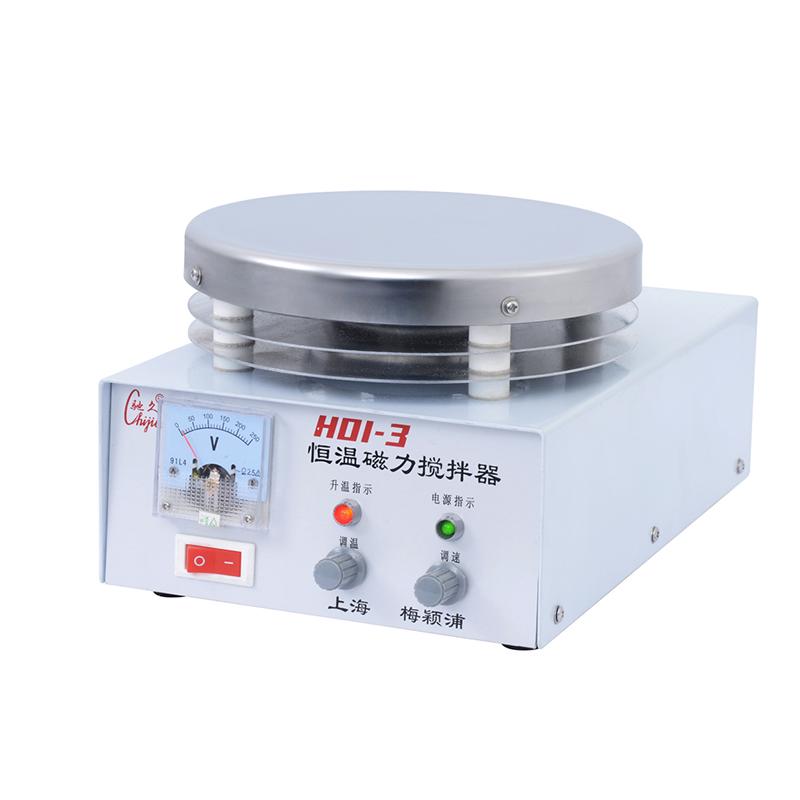

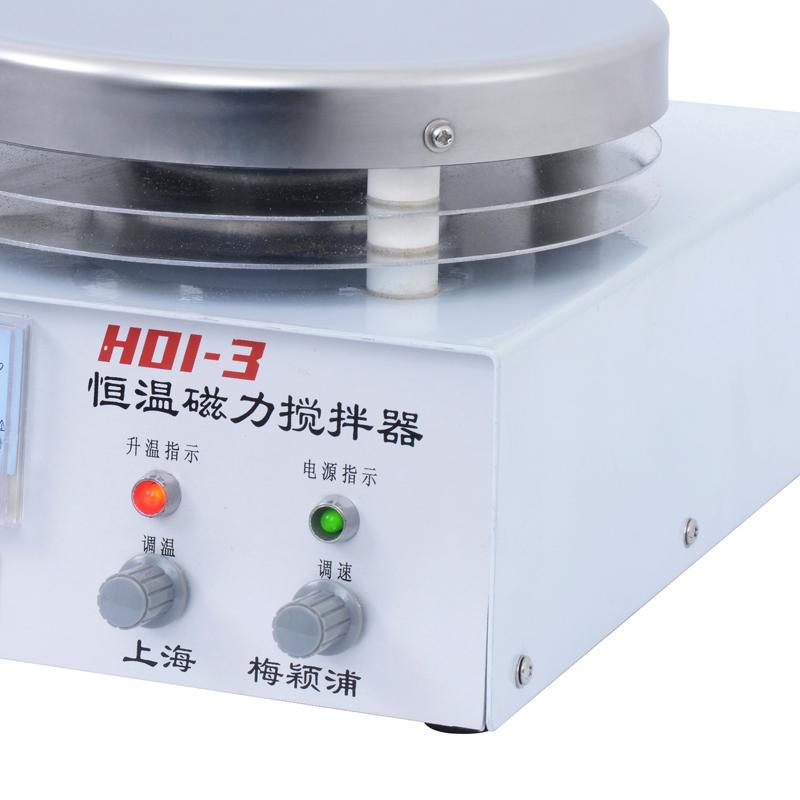

H01-3 thermostatic Magnetic Stirrer brushless DC motor drive, with strong stirring force and high power heating heater, Heating power adjustable, suitable for higher temperature and high viscosity use.
Features
1. Driven by a brushless DC motor, with exceptional stirring force
2, equipped with high power heating heater, Heating power adjustable
3, suitable for higher temperature and higher viscosity environment
4. Max. Capacity of stirring up to 10L
5, stirring speed range 0~ 2000rpm
6. Motor torque up to 25mN · M
7. Support continuous working mode
Principle
The brushless DC motor drives the magnetic stirrer swirl/spin to realize the stirring and mixing of the liquid medicine. At the same time, it is equipped with a heating heater, which can heat the liquid medicine by adjusting the Heating power, and supports two modes of manual temperature control and automatic temperature control.
Steps
1. Place the Stirrer smoothly, put the stirrer in the beaker and put it in the middle of the workbench, adjust the knob counterclockwise to the minimum, plug in the power supply and turn on the switch
2. Slowly swirl/spin the speed knob clockwise, so that the stirrer rotates the stirring liquid from slow to fast
3. When heating is required, switch the rear button down and adjust the temperature control knob to control the Heating power
4. When automatically controlling the temperature, connect the electrical contact mercury-filledthermometer, insert the thermometer into the liquid medicine and fix it, and automatically stop heating when the preset temperature is reached.
5. Note that the thermal inertia of the heater affects the temperature control accuracy, and the Heating power can be appropriately adjusted
6. Unplug the power supply after use, and clean the appearance after chilling down
Notice
• Power sockets should be well grounded
Avoid use in humid environments
• The beaker should not be too full to prevent overflow during stirring
• Not to be used as a heater alone
