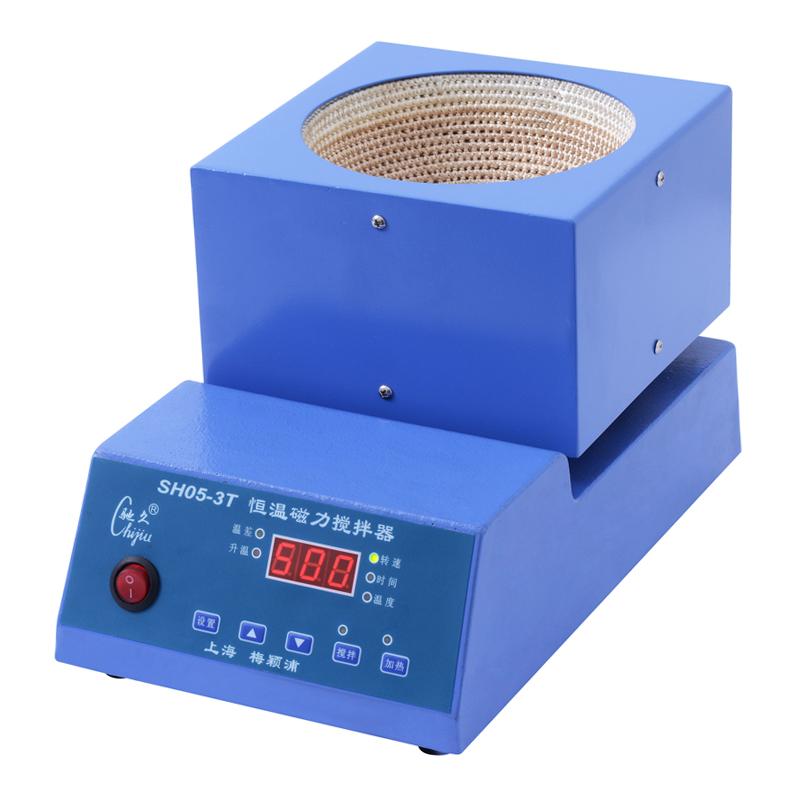

CHIJIU SH05-3T thermostatic Magnetic Stirrer 1000ml heating sleeve Brushless DC motor

Name: CHIJIU SH05-3T thermostatic Magnetic Stirrer 1000ml heating sleeve Brushless DC motor
Brand: ChiJiu
SKU: NB005388
Price: 353.0 USD
Availability: InStock

$ 353.00Ex works

Using brushless DC motor to achieve stepless speed regulation of 100~ 1500rpm, with PT100 temperature sensor accurate temperature control, excellent thermal insulation performance and energy saving, stirring capacity of 1000 ml.

Model

SH05-3T

Get Quote

Category : Heating Mantle

Brand : ChiJiu

SKU : NB005388

Service :The delivery and service By NBCLab.Com

Overview

CHIJIU SH05-3T thermostatic Magnetic Stirrer is an Electric Mantle stirring equipment with a capacity of 1000 ml, driven by brushless DC motor, supports stepless speed regulation, stirring speed range 100~ 1500rpm, Heating power 320W, Temperature range RT +~ 150 ℃, suitable for stirring heating needs in laboratories and other scenes.

Features

1, 1000 ml heating sleeve 2. Brushless DC motor drive, stepless transfer 3. Large mixing capacity and different functions can meet the needs of different users 4. Can save more than 50% energy under the same conditions

Principle

The device drives the magnetic stirrer through a brushless DC motor to achieve stepless speed regulation and stirring; at the same time, the Electric Mantle provides heating function and monitors the temperature through the temperature sensor PT100 to achieve thermostatic control.

Notice

• Electric Mantle has good thermal insulation performance, so the temperature difference coefficient should be set less than 50 to avoid temperature overshoot

power supply
AC 220V±10%
Speed Range
100~1500 r/min
Heating power
320W
Temperature Range of liquid
Room temperature~ 150℃ (within 1L)
Case material
cast aluminum
Dimension
330*190*130mm
