Overview

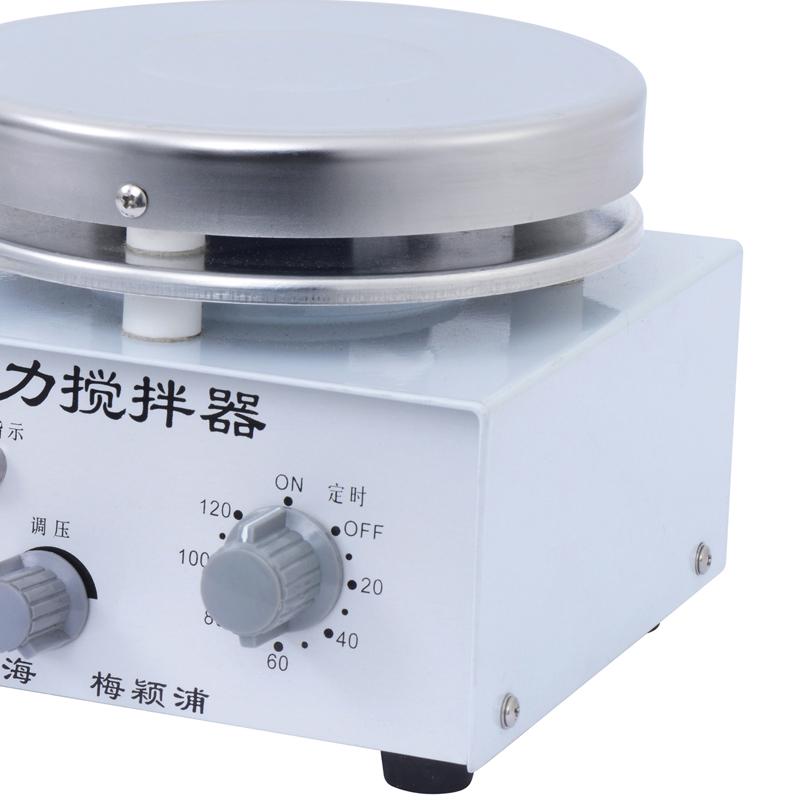

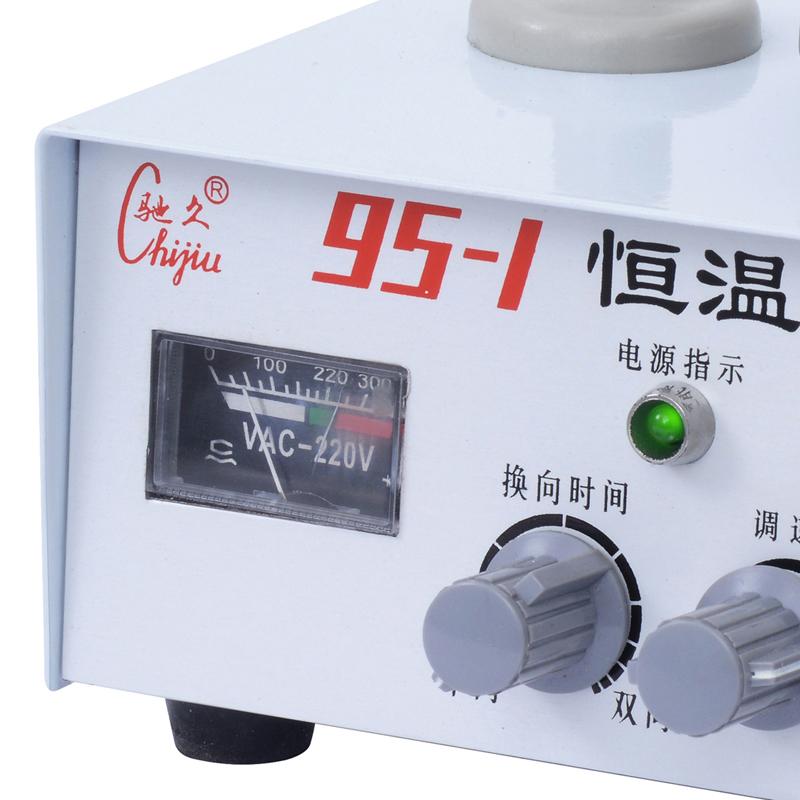

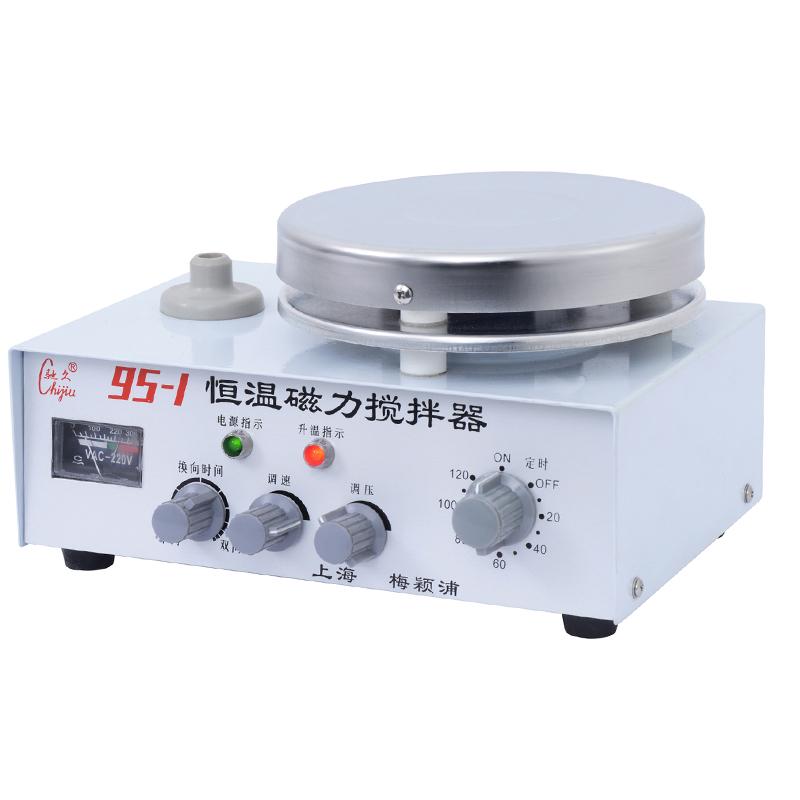

95-1 Thermostatic Magnetic Stirrer has the functions of two-way stirring, stepless speed regulation, mechanical timing, automatic thermostatic, etc. High temperature control accuracy, Stepless adjustable Heating power, unidirectional stirring or two-way stirring. Suitable for chemical, biological and other scientific research, teaching, production and other fields.
Features
1. Two-way mixing function
2. Stepless speed regulation
3. Mechanical timing
4. Automatic thermostatic
5. High temperature control accuracy
6. Heating power stepless adjustable
Principle
The rotor swirl/spin in the beaker is stirred by magnetic drive, the heating system heats up through the heater, and the electric contact mercury-filledthermometer realizes automatic temperature control. The commutation circuit controls the timing switching of the stirring direction.
Applications
Chemical industry, biology, scientific research, teaching, production
Steps
1. Place the Stirrer smoothly, place the beaker in the center of the table, put in the rotor, adjust the knob to a minimum, plug it in, and turn the timing switch to "ON" or the desired scale
2. One-way stirring: adjust the time knob counterclockwise to one-way, and adjust the speed knob clockwise
3. Two-way stirring: Turn the commutation time knob clockwise to both directions to adjust the commutation time
4 heating stirring: machine button switch down, adjust the temperature knob
5. Automatic temperature control: electric contact mercury-filledthermometer lead wire connection post, thermometer insert liquid medicine and fix it on the benchmark
6. Unplug the power supply after use, chill down and clean the collection
Notice
• Power sockets should be well grounded
• This machine should be avoided in a humid environment
• The beaker should not be too full to prevent overflow when stirring
• This machine must not be used as a heater alone
