Overview

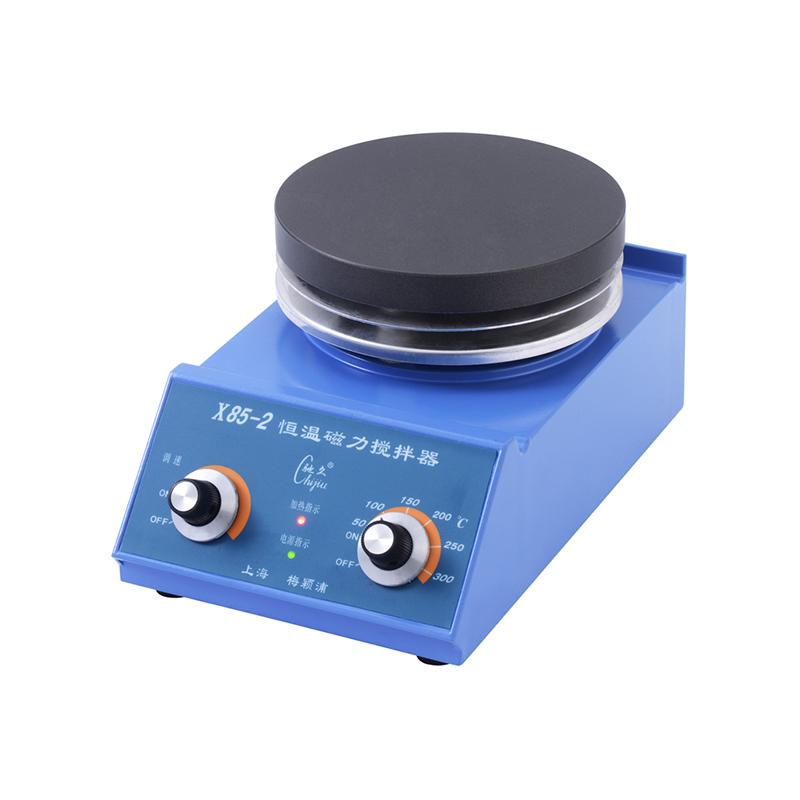

X85-2 type thermostatic Magnetic Stirrer is a product of CHIJIU brand, which is a replacement product of the old 85-2 type. It is driven by a brushless DC motor with strong stirring force, the shell is die-cast aluminum alloy, and the structure prevents liquid from overflowing. The heating plate is made of aluminum alloy. Power is large, the temperature is fast, the temperature can be directly set and uniform and stable, and the built-in maximum temperature protection device. Suitable for chemical industry, scientific research, teaching and other fields.
Features
1. Aluminum alloy shell integral die casting
2. Brushless DC motor drive, stepless speed regulation
3.φ 145mm aluminum alloy heating plate, 600W Power, fast heating, built-in temperature controller
4. Adjustable heating plate temperature 50~ 300 ℃, heating plate limit safe temperature 350 ℃
5. A variety of models, suitable for different usage requirements
Principle
The Stirrer uses a brushless DC motor to drive the magnetic stirrer swirl/spin to achieve liquid stirring. The heating plate sets the temperature with a built-in temperature controller, and the Heating power is adjustable to keep the set temperature uniform and stable. Users can adjust the stirring speed and heating plate temperature through the knob, or use the electrical contact mercury-filledthermometer to improve the temperature control accuracy.
Applications
Chemical industry, scientific research, teaching
Steps

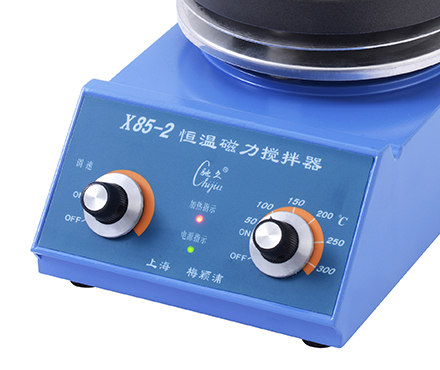

1. Place the Stirrer firmly, adjust the knob to the OFF position, connect the power cord and plug it in
2. Put the beaker in the center of the heating plate, put in the stirrer, turn the left knob to ON to turn on the power, and adjust clockwise to the required Rotation speed
3. The right knob sets the temperature of the heating plate, turns to the desired temperature position to start heating, adjusts the set temperature according to the temperature of the liquid medicine, and uses the electric contact mercury-filledthermometer to improve the accuracy if necessary
4. After use, turn the knob to OFF, unplug the power supply, chill down and clean the appearance and keep it safe
Notice
1. The power socket should be well grounded
2. The beaker should not be too full to avoid overflow when stirring
3. High temperature when the heating plate is working, the power cord, thermometer lead, etc. should be kept away and not in contact
4. This machine cannot be used as a heater alone
