Overview

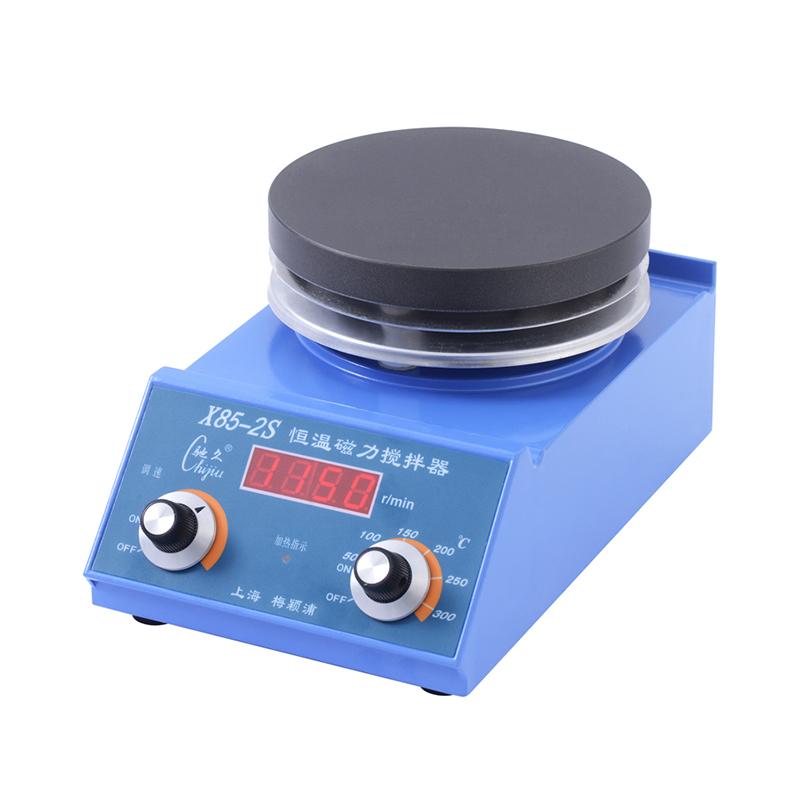

X85-2S thermostatic Magnetic Stirrer is a product of CHIJIU brand, which is based on the old product designed and finalized in 1985 of the last century. It retains the advantages of brushless DC motor drive, strong stirring force, and new Rotation speed display function. The shell is die-cast with aluminum alloy, and the structure prevents liquid overflow. The heating plate heats up quickly and the temperature is uniform and stable. It is suitable for chemical industry, scientific research, teaching and other fields.
Features
1. Driven by brushless DC motor, with large speed regulation ratio and strong stirring force
2. Heating power adjustable, heating fast, heating plate temperature uniform and stable
3. Shell aluminum alloy die-casting, beautiful appearance, structure to prevent liquid overflow
4. Rotation speed display function
5. Equipped with the highest temperature protection device
6. Support electrical contact mercury-filledthermometer to control liquid temperature and improve temperature control accuracy
Principle
The Stirrer uses a brushless DC motor to drive the magnetic stirrer swirl/spin to achieve liquid stirring. The heating plate is made of aluminum alloy, which can be set and automatically maintained, and the heating status is displayed through the heating indicator. Users can adjust the stirring speed and heating temperature through the knob, or use an external electrical contact mercury-filledthermometer to precisely control the temperature of the liquid.
Applications
Chemical industry, scientific research, teaching
Standards
Power supply voltage: AC220V +/- 10%
Steps
1. Place the Stirrer firmly, adjust the knob to the OFF position, connect the power cord and plug it in

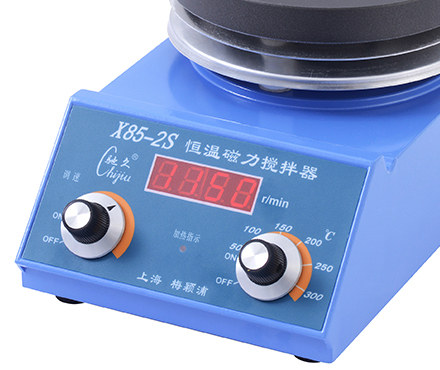

2. Put the beaker in the center of the heating plate, put in the stirrer, turn the left knob to ON, and adjust clockwise to the desired Rotation speed
3. The right knob sets the temperature of the heating plate, turn to the set position when heating is required, adjust the set value according to the temperature of the liquid medicine, and use the electric contact mercury-filledthermometer to improve the temperature control accuracy if necessary
4. After use, turn the knob to OFF, unplug the power supply, and clean the appearance after chilling down
Notice
• Power sockets should be well grounded
• The beaker should not be too full to avoid overflowing when stirring
• When the heating plate is working, the temperature is high, and the power cord, thermometer lead, etc. should be kept away and not in contact
• This machine cannot be used as a heater alone
