Overview

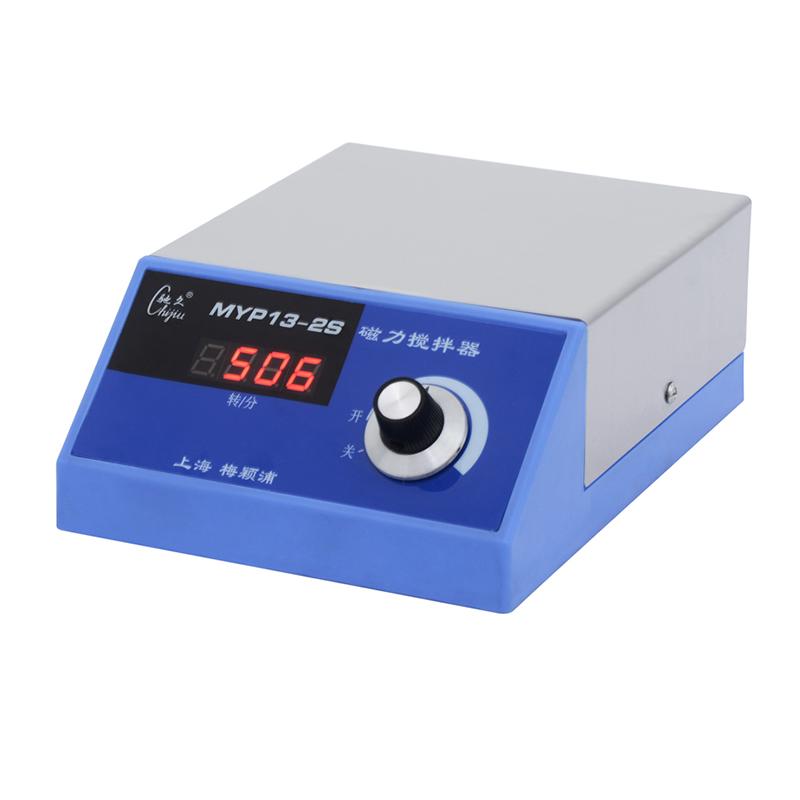

MYP13-2S Magnetic Stirrer is a single stirring Magnetic Stirrer, the shell is made of corrosion-resistant engineering plastic die-casting, the working surface is stainless steel, the three-phase brushless DC motor is closed-loop control, the Rotation speed is smoothly matched with strong magnets, and the stirring force is strong. LED Rotation speed display is suitable for single stirring occasions with small capacity.
Features
1, corrosion resistant engineering plastic die casting shell
2. Stainless steel working surface
3. Closed-loop control of three-phase brushless DC motor
4. Rotation speed smoothly matched with strong magnet
5. Strong stirring power

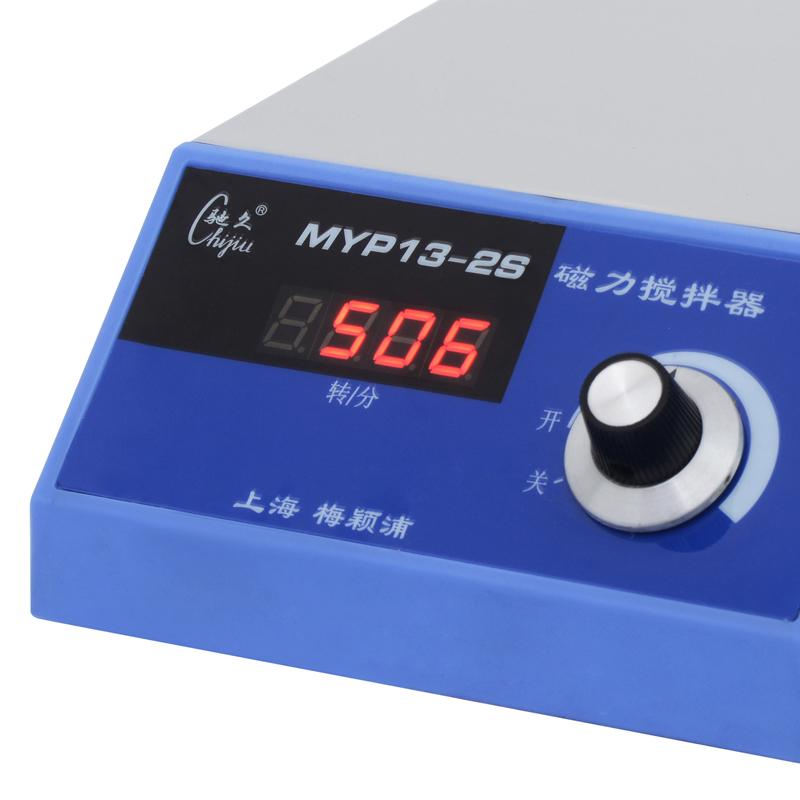

6. LED Rotation speed display
Principle
The swirl/spin magnetic field is generated by the closed-loop control of the three-phase brushless DC motor, and the swirl/spin stirrer in the beaker is driven to realize the stirring and mixing of the liquid medicine.
Steps
1. Place the Stirrer smoothly, plug in the power supply, put the beaker with the liquid medicine on the Stirrer working point, and put in a stirrer. The bottom of the beaker should be flat to avoid affecting the operation of the stirrer.

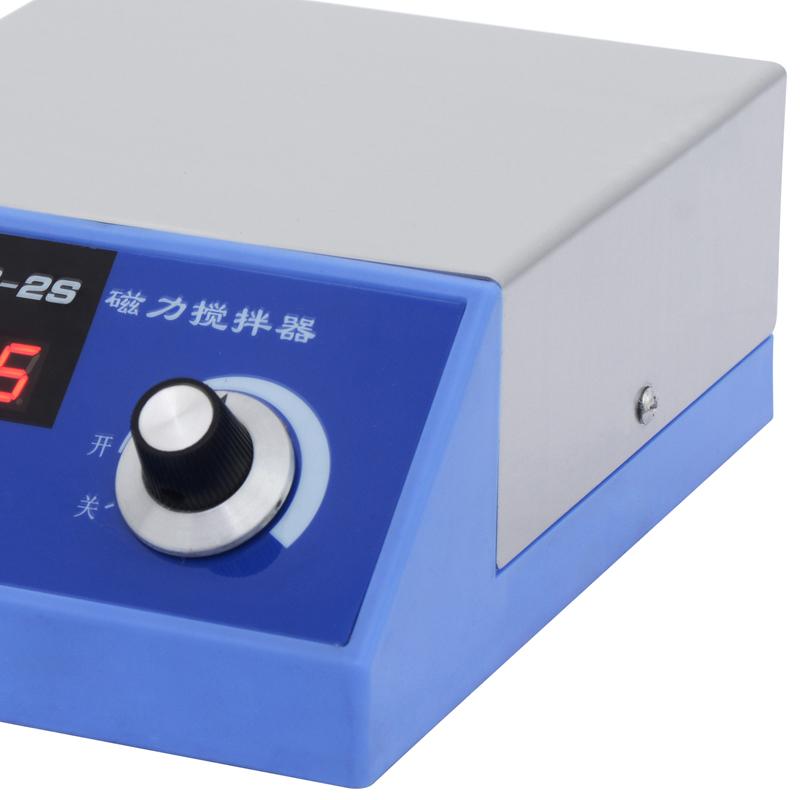

2. Rotate the knob from the off position to the open, the LED first shows the 1.2.3.4. Later, O is displayed, and the knob is slowly adjusted clockwise. The stirrer in the beaker is stirred from slow to fast. After selecting the required stirring speed, the MYP13-2S Magnetic Stirrer can work.
3. After use, adjust the knob counterclockwise, unplug the power plug, clean the appearance, and keep it properly.
Notice
1. The liquid in the beaker should not be overfilled to avoid overflowing when stirring.
2. When inserting the benchmark into the benchmark hole at the back of the machine, the garden head should be used vertically downward. It is forbidden to use force downward while shaking, and it is also forbidden to pull the marker while shaking when removing the benchmark.
