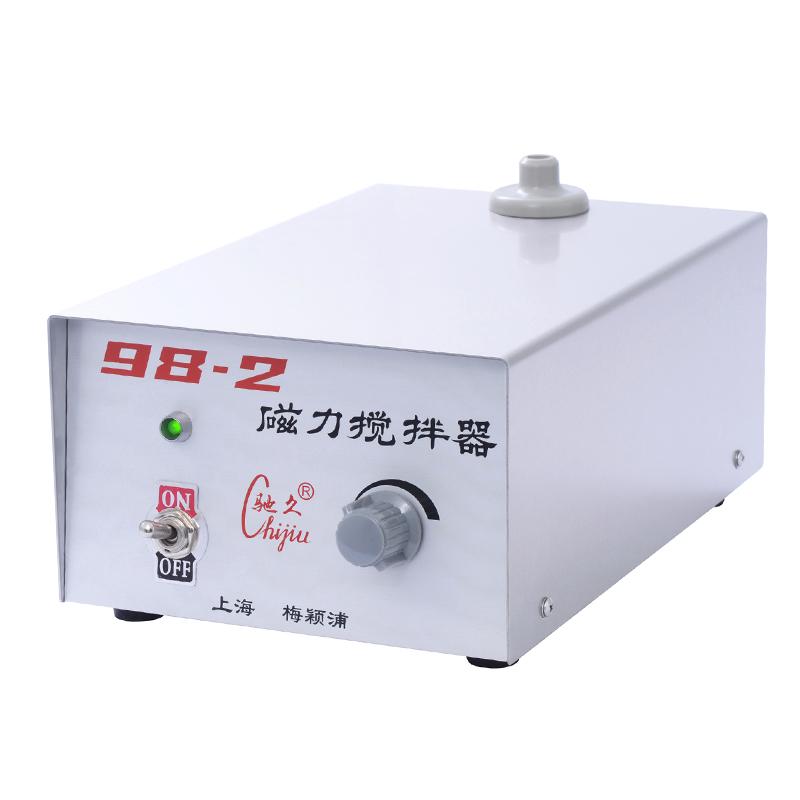

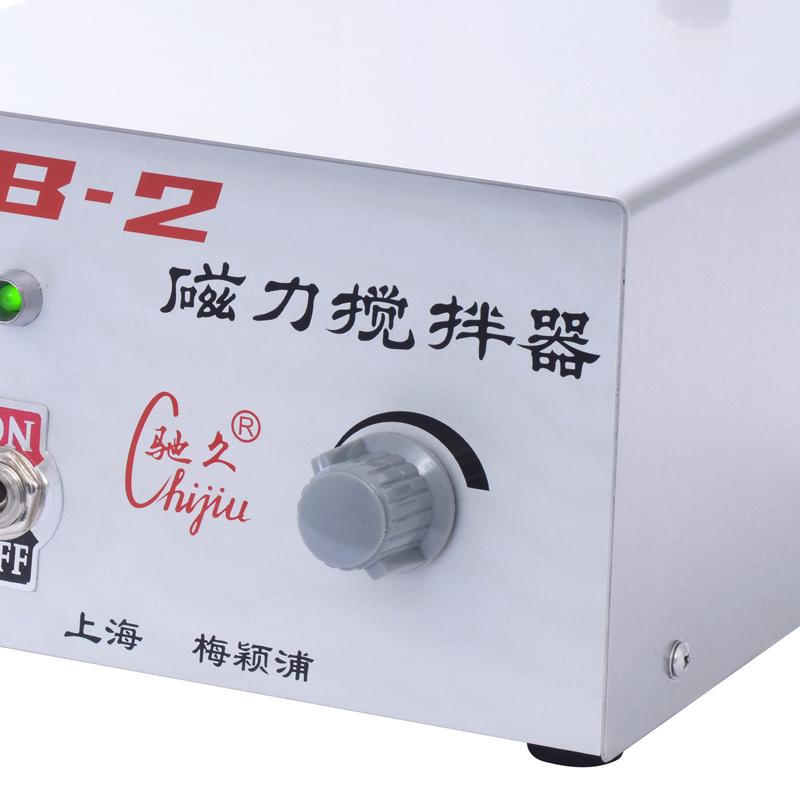

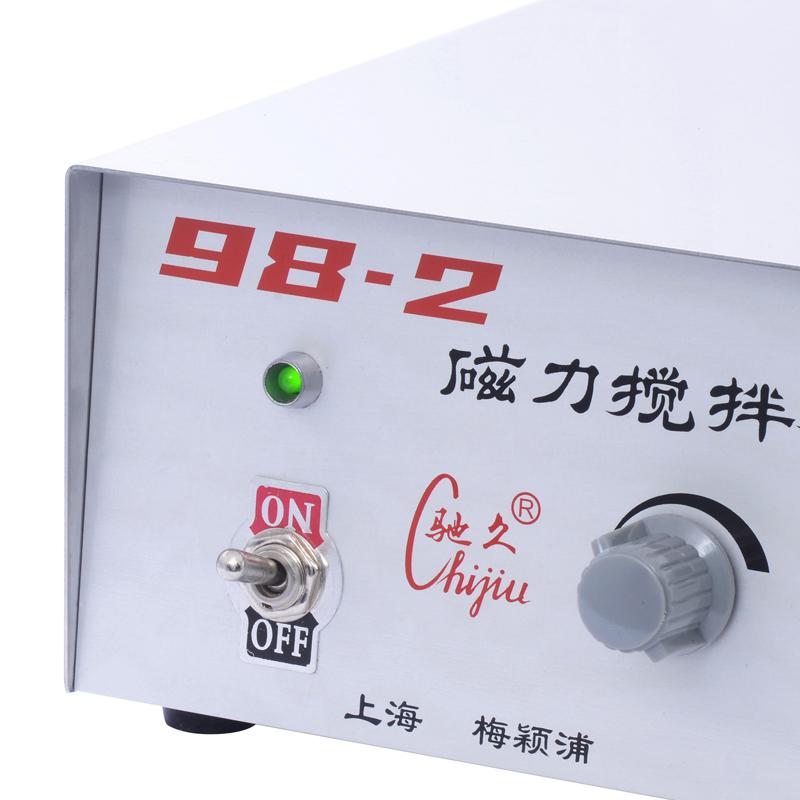

CHIJIU 98-2 Magnetic Stirrer Strong magnetic force single stirring, large capacity and high viscosity stirring

Name: CHIJIU 98-2 Magnetic Stirrer Strong magnetic force single stirring, large capacity and high viscosity stirring
Brand: ChiJiu
SKU: NB005410
Price: 224.0 USD
Availability: InStock

$ 224.00Ex works

Driven by brushless DC motor, Max. stirring Capacity up to 10 liters, stirring speed range of 150-2000rpm, with super stirring force, suitable for high viscosity liquid stirring.

Model

98-2

Get Quote

Category : Magnetic Stirrer

Brand : ChiJiu

SKU : NB005410

Service :The delivery and service By NBCLab.Com

Overview

CHIJIU 98-2 Magnetic Stirrer is a strong magnetic single stirring equipment, driven by a brushless DC motor, with super strong stirring force, suitable for stirring operations under high volume and high viscosity conditions.

Features

1. Driven by brushless DC motor 2. Super stirring power 3. Suitable for use in large-capacity, high-viscosity conditions 4. Max. Capacity of stirring up to 10L 5. stirring speed range 150~ 2000rpm 6. Motor torque 25mN · M 7. Support continuous working mode

Principle

The strong magnetic force generated by the brushless DC motor drives the stirrer to swirl/spin in the beaker to realize the stirring and mixing of the liquid medicine.

Steps

1. Place the Stirrer smoothly, put the beaker with the stirrer in the center position, adjust the knob to the minimum, plug in the power supply and turn on the switch 2. Slowly swirl/spin the stirring speed clockwise to the desired value 3. When adjusting the speed, it is necessary to operate slowly to avoid accelerating too fast and causing the motor to stop. 4. Unplug the power supply after use, clean the appearance and collect it.

Notice

• Power sockets should be well grounded • It is forbidden to put the stirrer directly on the Stirrer for trial operation • When using, the liquid in the beaker should not be too full to prevent overflow when stirring

Power supply Voltage
AC 220V±10%
Max. stirring Capacity
10000ml
Speed Range
100~1800rpm
Motor torque
25mN·m
Work disk material
stainless steel
Motor Type
Brushless DC Motor
Dimension
250*160*85mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
