Overview

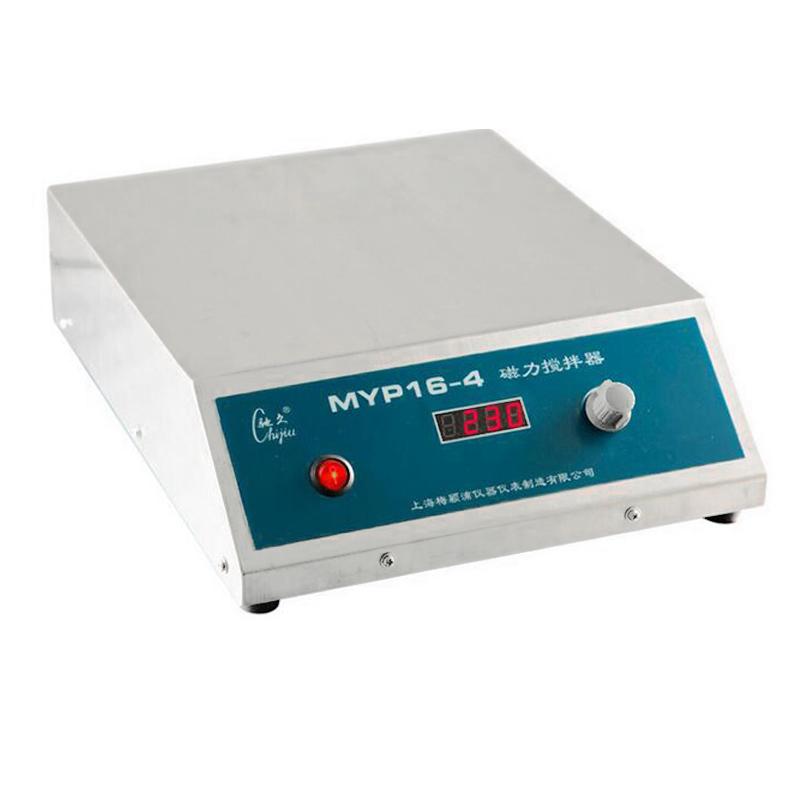

MYP16-4 Magnetic Stirrer is a large-capacity single-stirring Magnetic Stirrer, driven by a brushless DC motor, Rotation speed is stable, the rotation distance is large, and there is a digital display Rotation speed, strong magnetic force, strong structure, suitable for large-capacity stirring.
Features
1. Driven by brushless DC motor, Rotation speed is stable and the rotation distance is large
2. Rotation speed with digital display
3. Strong magnetic force and strong structure
4. Suitable for large-capacity mixing
Principle
The swirl/spin magnetic field is generated by the brushless DC motor, which drives the swirl/spin stirrer in the container to realize the stirring function.
Steps
1. Test run: place the Magnetic Stirrer smoothly, connect the power cord, plug in the power supply, turn on the power switch, the power indicator light is on, the digital display is "0000", adjust the knob clockwise, you can hear the motor in the machine from slow to fast running sound, digital indication Rotation speed, after the test turn is normal, the Rotation speed is adjusted to the lowest level and then shut down.
2. When using, place the container in the center of the Stirrer and put in the stirrer, so that the stirrer is located in the center, you can turn it on, adjust the knob, select the required stirring speed, and gradually accelerate or decelerate when adjusting the speed.
Notice
The power supply should be reliably grounded
• Stirrer face center φ 85mm can not concentrate to withstand large pressure
• The liquid in the container should not be overfilled to avoid overflow when stirring
• It is forbidden to put the stirrer directly on the Stirrer for trial operation
• Containers need to be made of non-ferromagnetic materials, and copper and aluminum containers should not be used as much as possible
• The bottom of the container needs to be smooth and the thickness should not exceed 10mm.
