Overview

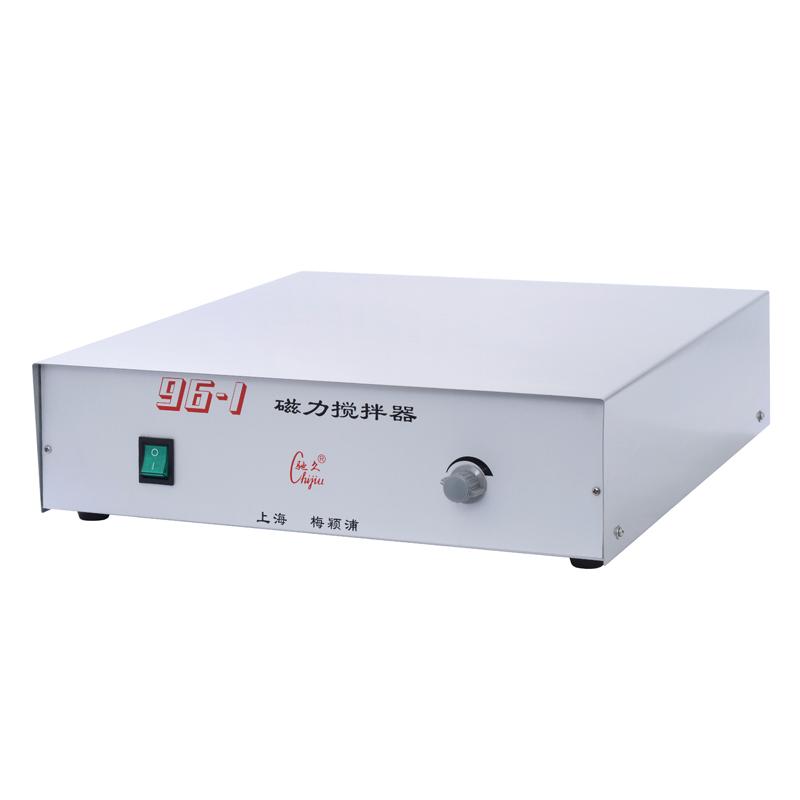

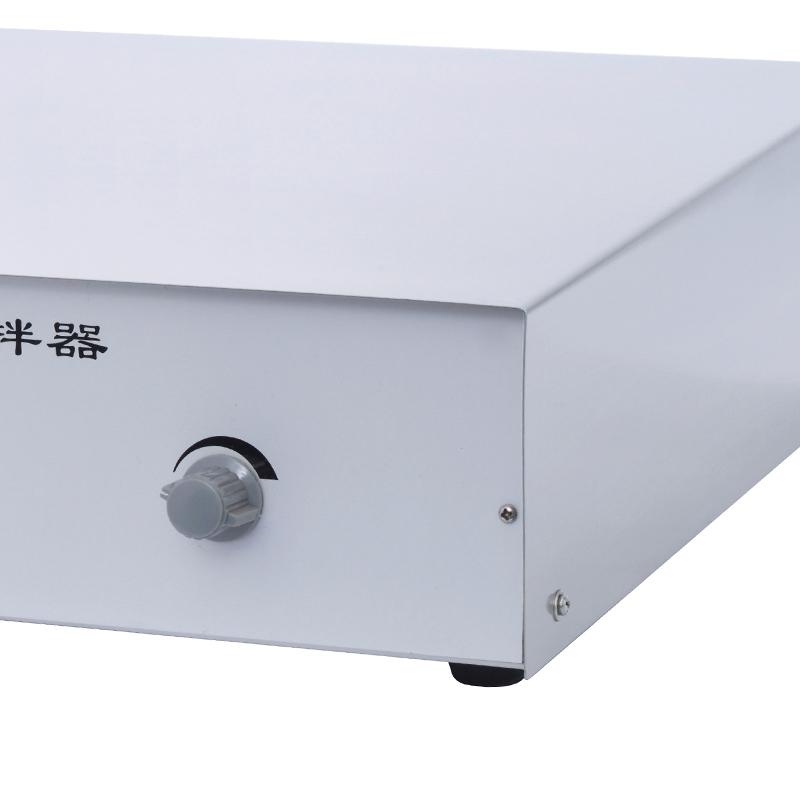

CHIJIU 96-1 Magnetic Stirrer is a high-capacity and high-power single-stirring Magnetic Stirrer, which is driven by a three-phase brushless DC motor and has the characteristics of large rotation distance and strong magnetic force, making it suitable for large-capacity stirring needs.
Features
1. Large capacity design, Max. stirring Capacity up to 50L
2. High-power motor, torque up to 100W
3. Driven by three-phase brushless DC motor
4. Exceptionally strong magnetic force, suitable for large-capacity stirring
5. Sturdy and durable construction
6. Wide stirring speed range, adjustable from 60 to 1400rpm
7. Support continuous working mode
Principle
The swirl/spin magnetic field is generated by the three-phase brushless DC motor, which drives the magnetic stirrer swirl/spin in the container to realize the stirring and mixing of the liquid. The magnetic force transmission does not require mechanical connection, and the non-contact stirring is realized by electromagnetic action.
Steps
1. Test run: place Stirrer smoothly, connect the power cord, turn on the power switch, adjust the knob clockwise, hear the sound of the motor running from slow to fast, after the test turn is normal, adjust the Rotation speed to the lowest and then shut down
2. Formal use: put the container in the center of the Stirrer, put in the stirrer to make it in the center, adjust the knob to select the desired stirring speed after turning it on, and gradually accelerate or decelerate when adjusting the speed
3. Abnormal handling: If the stirrer is lost, it should be shut down immediately to prevent demagnetization
Notice
The power supply should be well grounded
• Stirrer face center φ 110mm can not concentrate to withstand large pressure
• The liquid in the container should not be overfilled to avoid overflow when stirring
• It is forbidden to put the stirrer directly on the Stirrer for trial operation
• Coefficient of Friction as much as possible, and always pay attention to stirrer abrasion
• Rotation speed should be observed frequently during use. If you find that the Rotation speed is reduced, suddenly stopped or difficult to start, you should shut down immediately
• Rotation speed should not be too high, it can achieve the mixing effect
• Containers need to be made of non-ferromagnetic material, with a smooth bottom and a thickness of no more than 10mm
