Overview

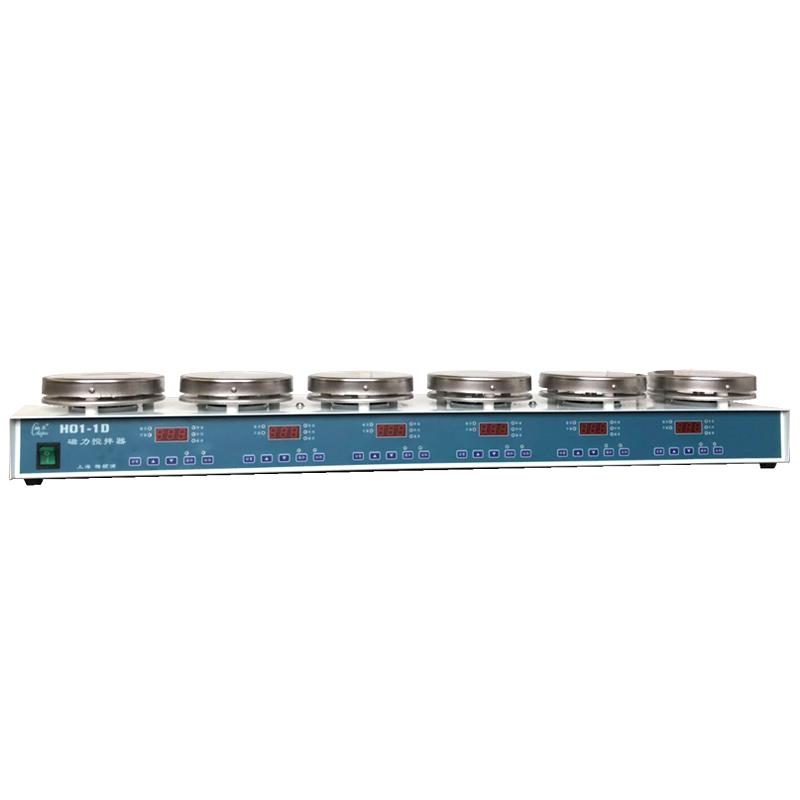

H01-1D digital thermostatic Magnetic Stirrer is a multi-station and digital thermostatic device of CHIJIU brand, which has the functions of automatic temperature control and adjustable Heating power of digital display. Driven by brushless DC motor, with strong stirring force, each station can be operated independently.
Features
1. Multi-station design, each station can operate independently
2. Digital display temperature automatic control
3. Heating power adjustable
4. Driven by brushless DC motor, strong stirring force
5. Temperature control accuracy up to +/- 1 ℃
6. stirring speed range 100~ 1500rpm
Principle
The device drives the stirrer to swirl/spin in the beaker through magnetic coupling to realize the stirring function. The temperature sensor monitors the temperature of the liquid medicine in real time. When the difference between the Measuring temperature and the set temperature is greater than 15 ° C, the heater is fully Power heating; when the difference is less than 15 ° C, the Heating power is adjusted by the pressure regulating knob to achieve accurate thermostatic control.
Steps
1. Turn off the power switch before use, turn the speed control knob to OFF, connect the temperature sensor, and place the device smoothly
2. Place the beaker in the middle of the table, put in the stirrer, insert the temperature sensor, and turn on the total power supply
3. Adjust the speed knob to ON and adjust the Rotation speed, adjust the required temperature with the temperature setting knob, and switch to Measuring location.
4. Adjust Heating power knob according to temperature difference
5. When heating is not required but temperature measurement is required, the temperature setting is adjusted to be lower than room temperature, and the switch is placed in the Measuring location
6. Unplug the power supply after use, chill down and clean the appearance
Notice
• Power sockets should be well grounded
• The beaker should not be too full to prevent overflow when stirring
