Overview

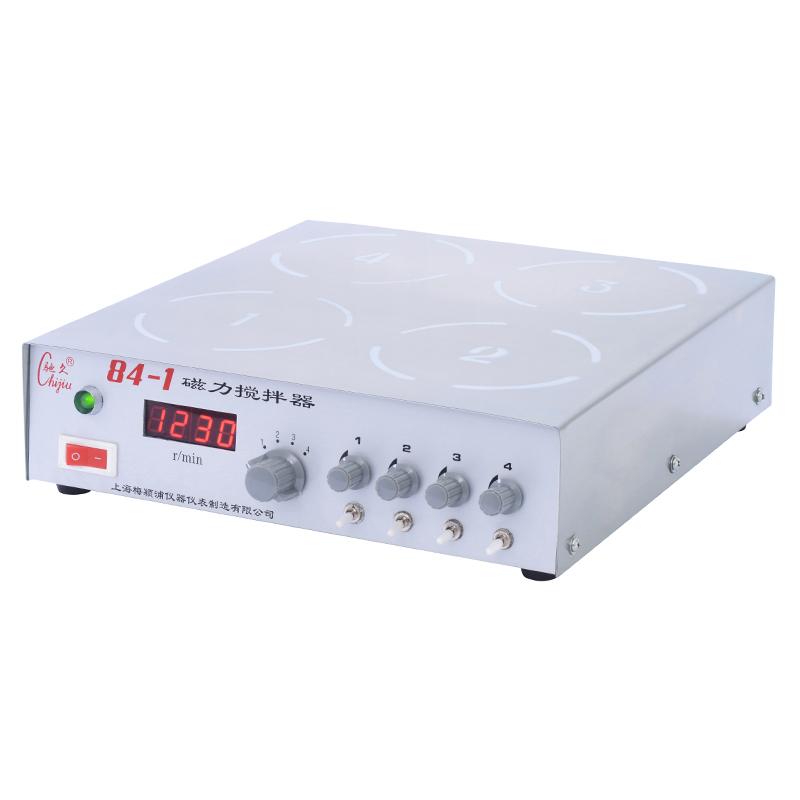

84-1 (four) Magnetic Stirrer is a four-station (six-station) multi-station Magnetic Stirrer, each station is driven by a brushless DC motor, and the stirring operation can be individually controlled.
Features
1. Four-station (six-station) design, which can handle multiple samples simultaneously
2. Driven by brushless DC motor, smooth operation
3. Each station can be individually controlled, making it flexible to use
4. Max. stirring Capacity up to 1500mL * 4, sufficient capacity
Principle
The swirl/spin magnetic field is generated by the drive of the brushless DC motor, and the stirrer placed in the beaker follows the magnetic field swirl/spin to realize the stirring and mixing of the liquid.
Steps
1. Place the Stirrer smoothly, plug in the power supply, put the beaker with the liquid medicine in the center of the workstation, and put a stirrer in the beaker

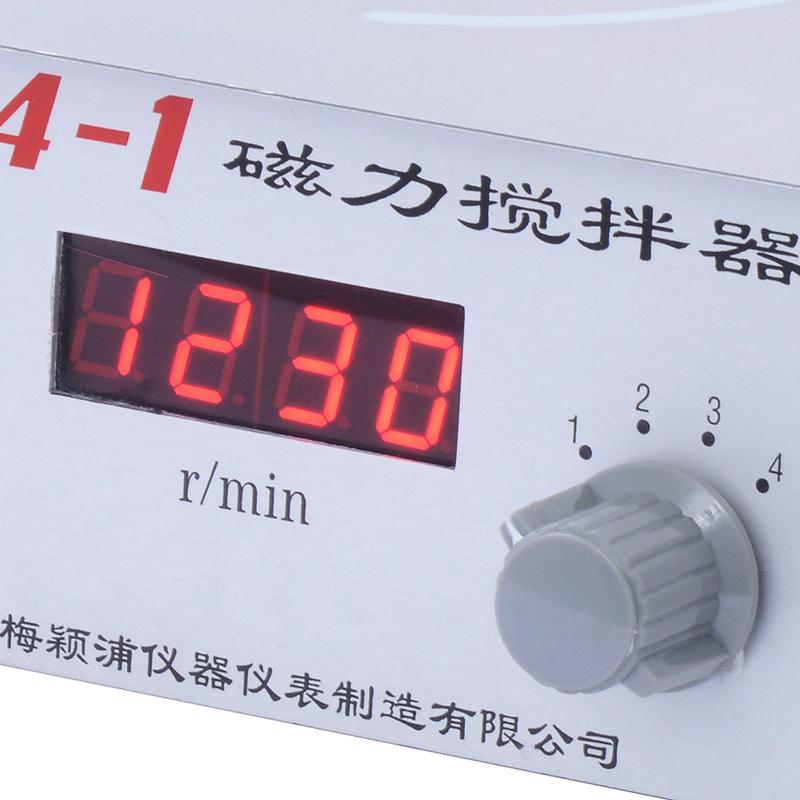

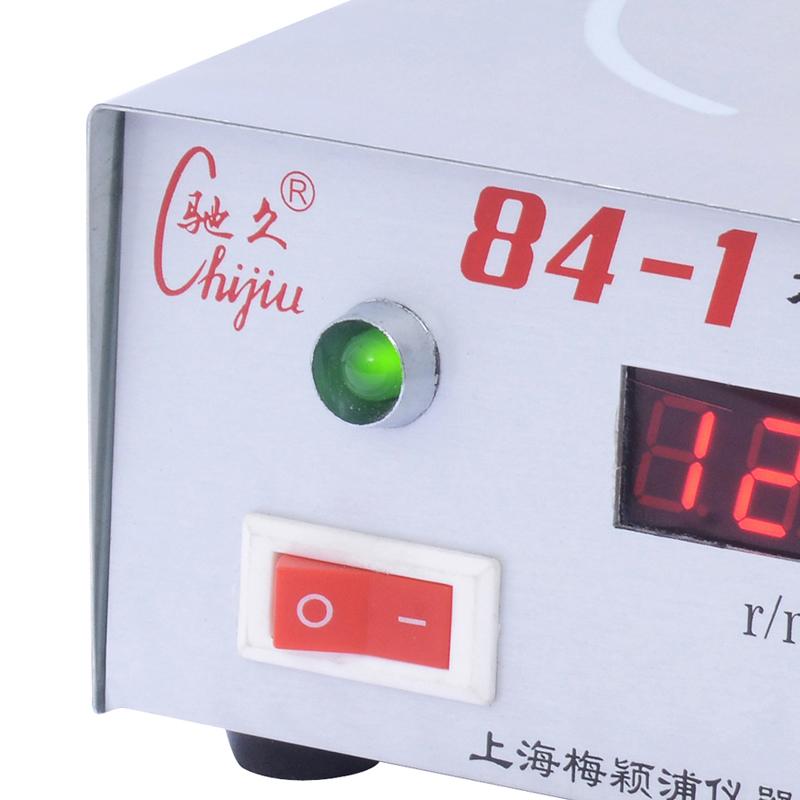

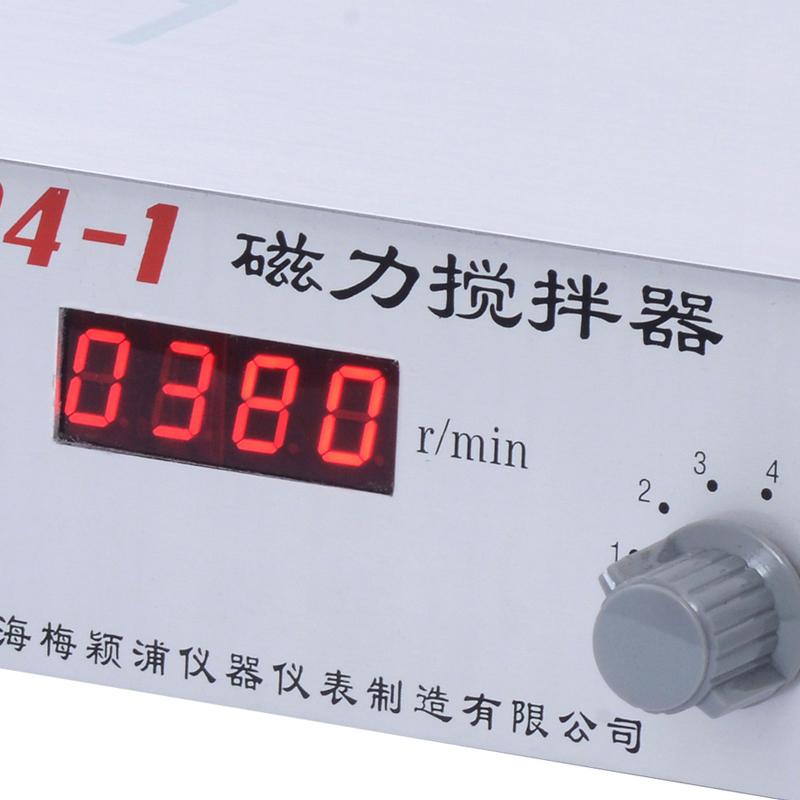

2. Turn on the power switch, the power indicator light is on, turn on the stirring switch of the corresponding station (pull it down), and adjust the corresponding speed control knob to the required stirring speed
3. Four (six) stations can be used together, or any of them can be used, and can be controlled individually
Notice
• Power sockets should be well grounded
• When using, the liquid in the beaker should not be too full to prevent overflow when stirring
