Overview

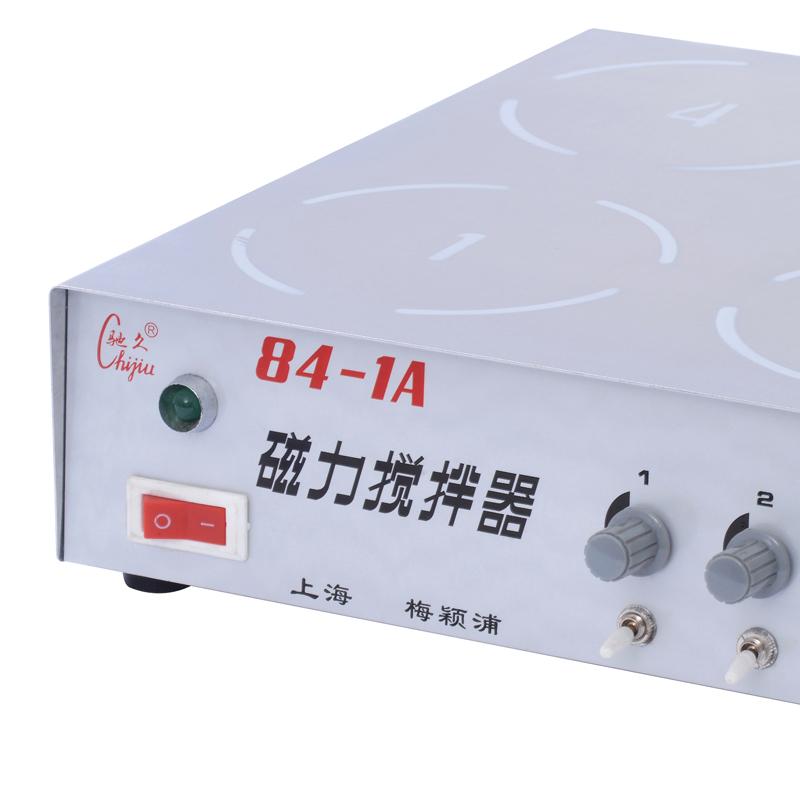

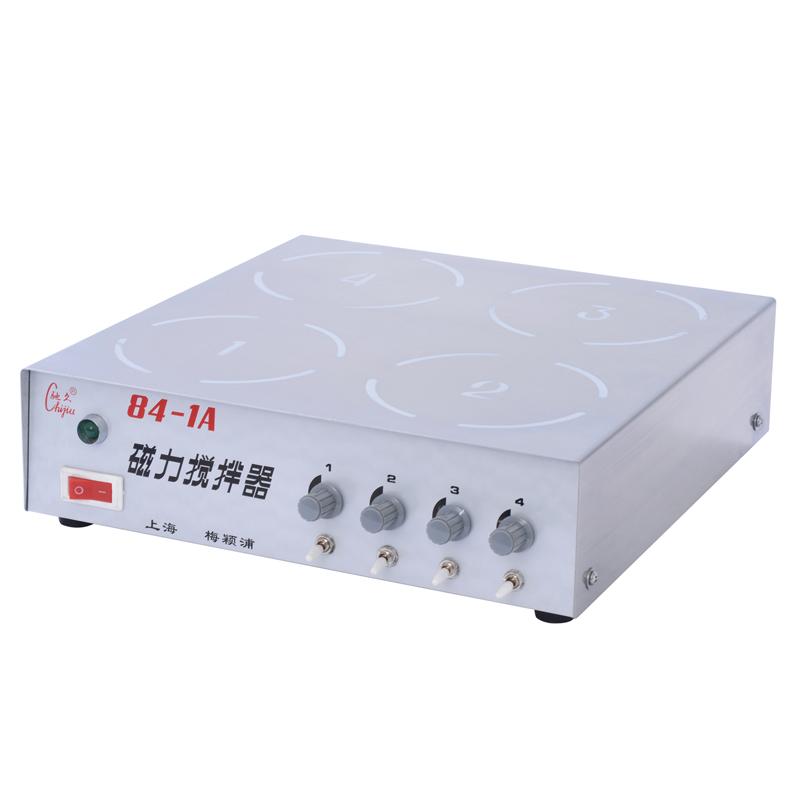

CHIJIU 84-1A (four) Magnetic Stirrer is a four-station type, each station is driven by a brushless DC motor, which can be controlled individually to achieve a single stirring function.
Features
1. Four-station design, can be used simultaneously or alone;
2. Brushless DC motor drive, stable operation;

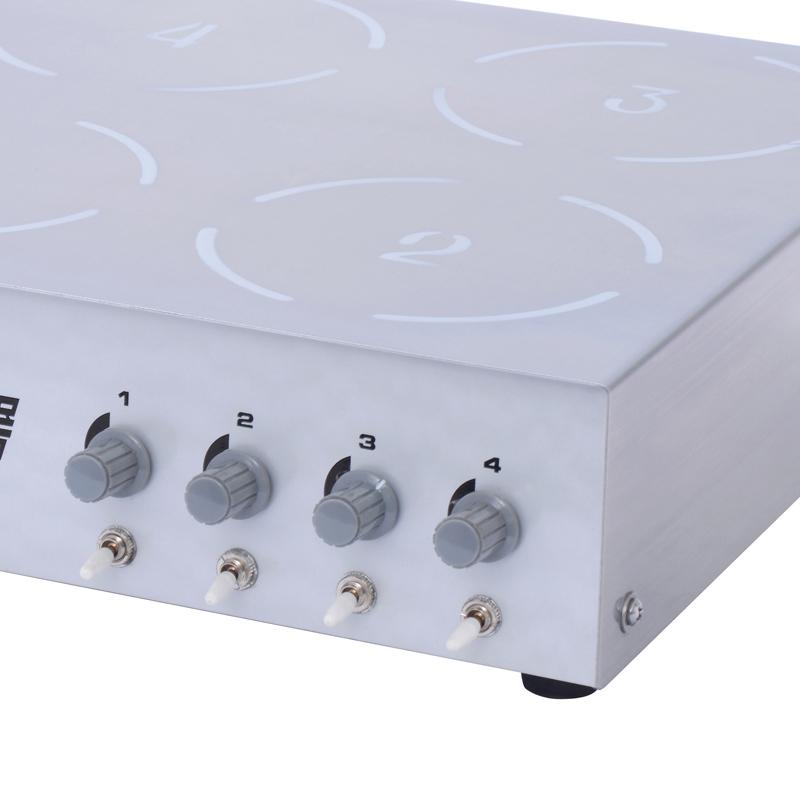

3. Each station can individually control the stirring switch and speed.
4. Max. stirring Capacity up to 1500mL * 4, suitable for a variety of experimental needs;
5. The stirring speed range is 100~ 1500rpm, and the adjustment is flexible.
Principle
The Magnetic Stirrer drives the magnetic rotor through a brushless DC motor to generate a swirl/spin magnetic field, which drives the stirrer in the beaker to swirl/spin to achieve uniform mixing of the liquid medicine. Each station is independently controlled to ensure accurate and reliable stirring process.
Steps
1. Place the Stirrer smoothly, plug in the power supply, put the beaker with the liquid medicine in the middle of the workstation, and put a stirrer in the beaker;
2. Turn on the power switch, the power indicator light is on, turn on the stirring switch of the corresponding station (pull it down), and adjust the corresponding speed control knob to the required stirring speed;
3. The four stations can be used together or any one of them can be controlled individually.
Notice
• The power socket should be well grounded;
• When using, the liquid in the beaker should not be too full to prevent overflow when stirring.
