CHIJIU 84-1A (6) Magnetic Stirrer Multi-station Six-station Brushless DC Motor Drive

Name: CHIJIU 84-1A (6) Magnetic Stirrer Multi-station Six-station Brushless DC Motor Drive
Brand: ChiJiu
SKU: NB005427
Price: 452.0 USD
Availability: InStock

$ 452.00Ex works

Six-station design can be controlled separately, Max. stirring Capacity 1500mL, Speed range 100~ 1500rpm, brushless DC motor to provide stable stirring effect.

Model

Get Quote

Category : Magnetic Stirrer

Brand : ChiJiu

SKU : NB005427

Service :The delivery and service By NBCLab.Com

Overview

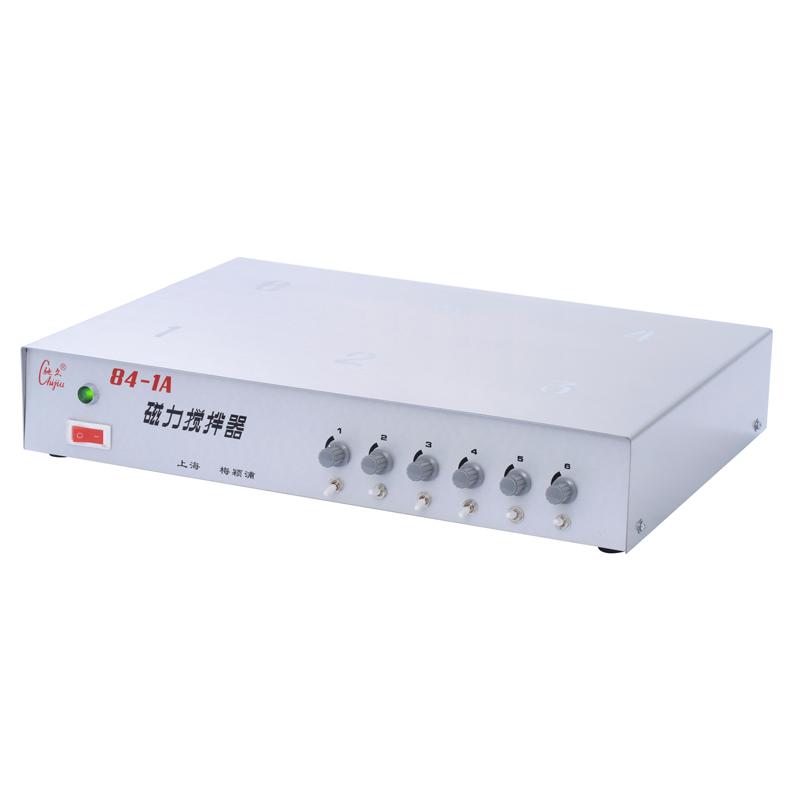

The 84-1A (VI) Magnetic Stirrer is a six-station type, single stirring, each station is driven by a brushless DC motor and can be controlled individually.

Features

1. Six-station design, can be used simultaneously or alone 2. Brushless DC motor drive, stable operation 3. Each station can be individually controlled 4. Max. Capacity of stirring up to 1500mL * 6 5. stirring speed range 100~ 1500rpm

Principle

The swirl/spin magnetic field is generated by the drive of the brushless DC motor, so that the stirrer placed in the beaker swirl/spin to realize the stirring and mixing of the liquid.

Steps

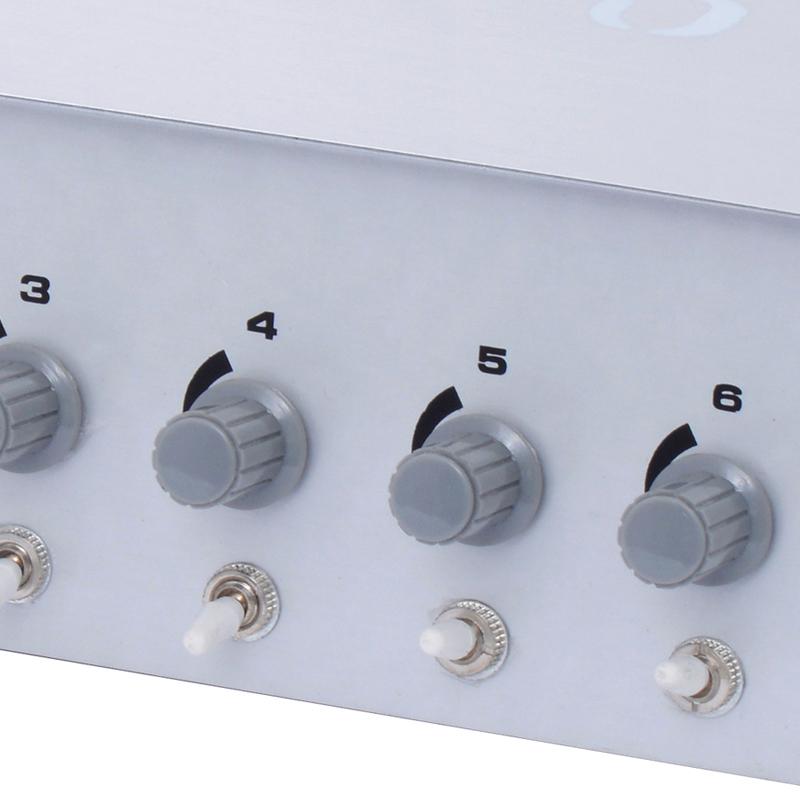

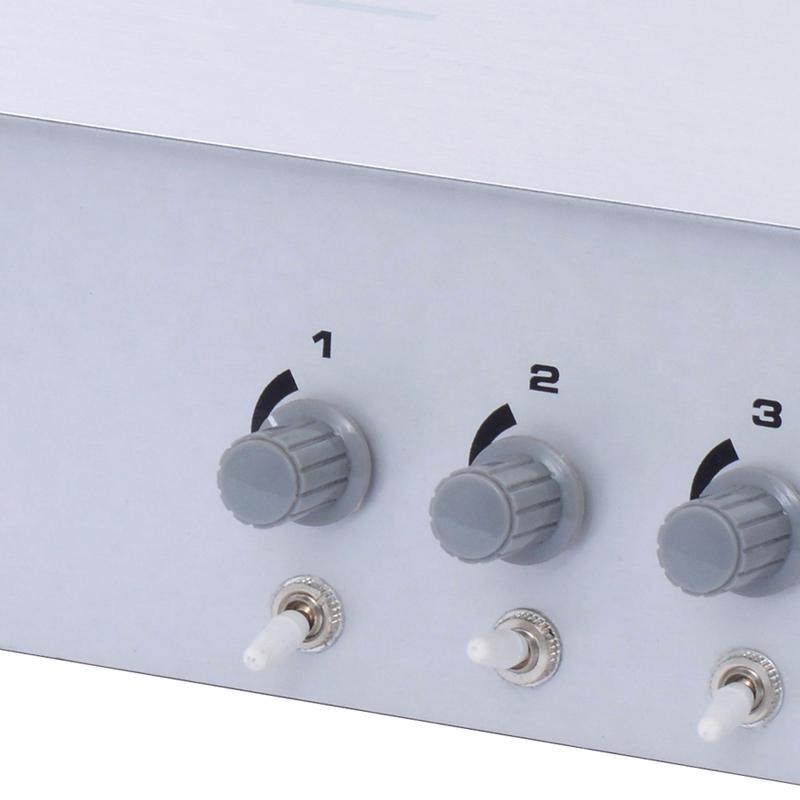

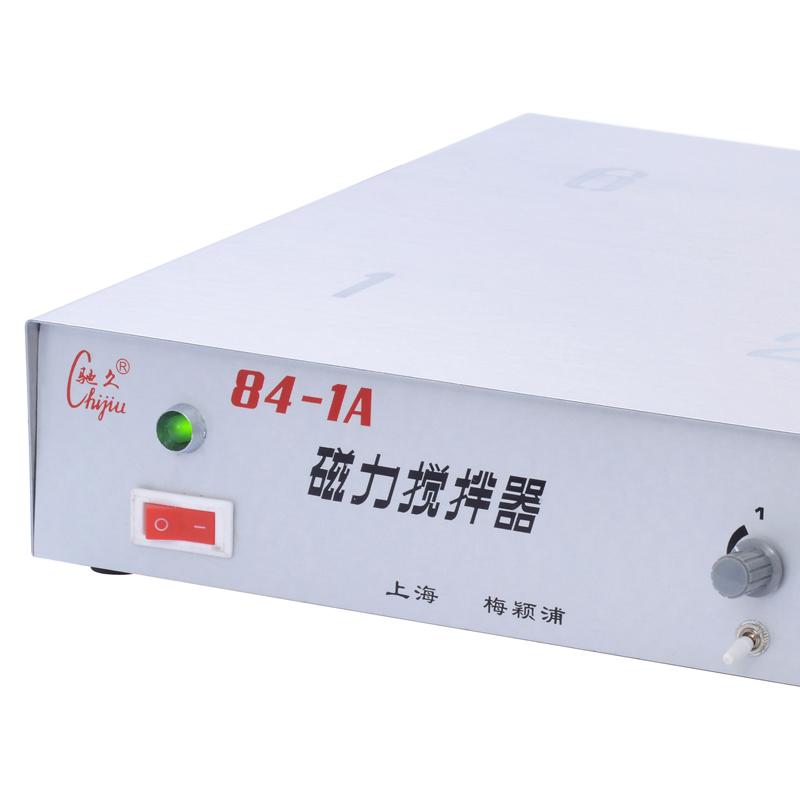

1. Place the Stirrer smoothly, plug in the power supply, put the beaker with the liquid medicine in the center of the workstation, and put a stirrer in the beaker 2. Turn on the power switch, the power indicator light is on, turn on the stirring switch of the corresponding station (pull it down), and adjust the corresponding speed control knob to the required stirring speed 3. Four (six) stations can be used together, or any of them can be used, and can be controlled individually

Notice

• Power sockets should be well grounded • When using, the liquid in the beaker should not be too full to prevent overflow when stirring

Power supply Voltage
AC 220V±10%
Number of stations
6 stations
Max. stirring Capacity per station
1.5L
Speed Range
100~1500 rpm
Work disk material
stainless steel
Dimension
420*280*75mm
