Overview

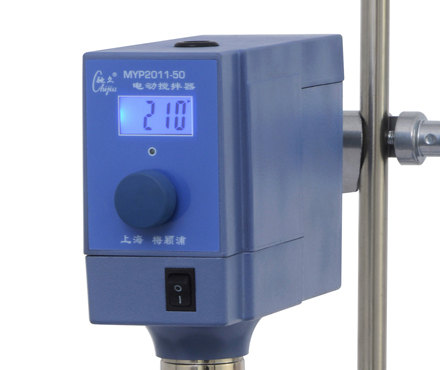

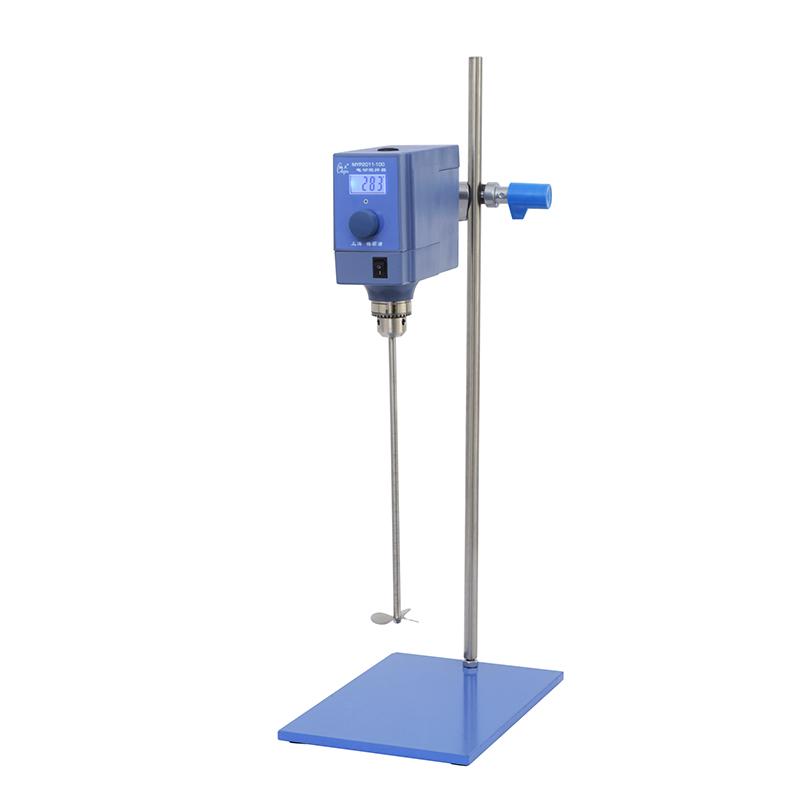

MYP2011-100 powerbasic stirrer using brushless DC motor drive, MCU control, closed loop speed, Rotation speed stability, LCD display Rotation speed, swirl/spin encoder operation, Impeller.
Features
1. Driven by a brushless DC motor
2. Single-chip microcomputer control, closed-loop speed regulation
3. Rotation speed is stable
4, LCD display Rotation speed
5, swirl/spin encoder operation
6. Serial Core Impeller Design
Principle
Driven by a brushless DC motor, the single-chip microcomputer controls the closed-loop speed regulation, the swirl/spin encoder operates to set the Rotation speed, and the LCD screen displays the Rotation speed information in real time.
Steps
1. Rotation speed setting: swirl/spin knob to set the desired Rotation speed (up clockwise, down counterclockwise)
2. Start and stop: After the Rotation speed is set, press the knob to start stirring, and then press to stop stirring
3. Rotation speed modification: Rotation speed can be modified by swirl/spin knob during stirring, and the actual Rotation speed will be displayed after the knob stops swirl/spin for 1 second
Notice
• When using, it should be accelerated slowly from slow to fast, such as the poor straightness of the stirringrod, the Rotation speed cannot be fast or the soft connection shaft is used and fixed with a support sleeve in the middle
• Don't get too close when working to avoid the danger of clothing, hair being involved, etc
• Prevent liquid from splashing when stirring
