Overview

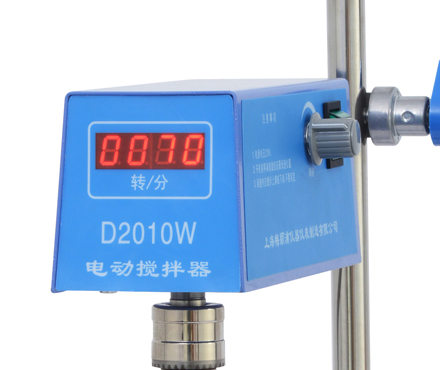

CHIJIU D2010W powerbasic stirrer adopts DC three-phase brushless motor drive, which has the characteristics of no spark, high efficiency, large torque, and extremely small motor temperature rise. It can adapt to high viscosity liquid stirring and is equipped with digital display Rotation speed function.
Features
1. Adopt DC three-phase brushless motor, no spark, high efficiency and large torque
2. Motor temperature rise is extremely small, suitable for high viscosity liquid stirring
3. Rotation speed digital display
4. The clamping range of the chuck is φ 1.5~ 10mm, which is suitable for a variety of stirringrods
5. Speed range 60~ 1500rpm, flexible adjustment
Principle
The powerbasic stirrer is driven by a DC three-phase brushless motor, the user adjusts the Rotation speed through the knob, and the motor drives the chuck swirl/spin stirringrod to achieve stirring and mixing of the liquid.
Steps

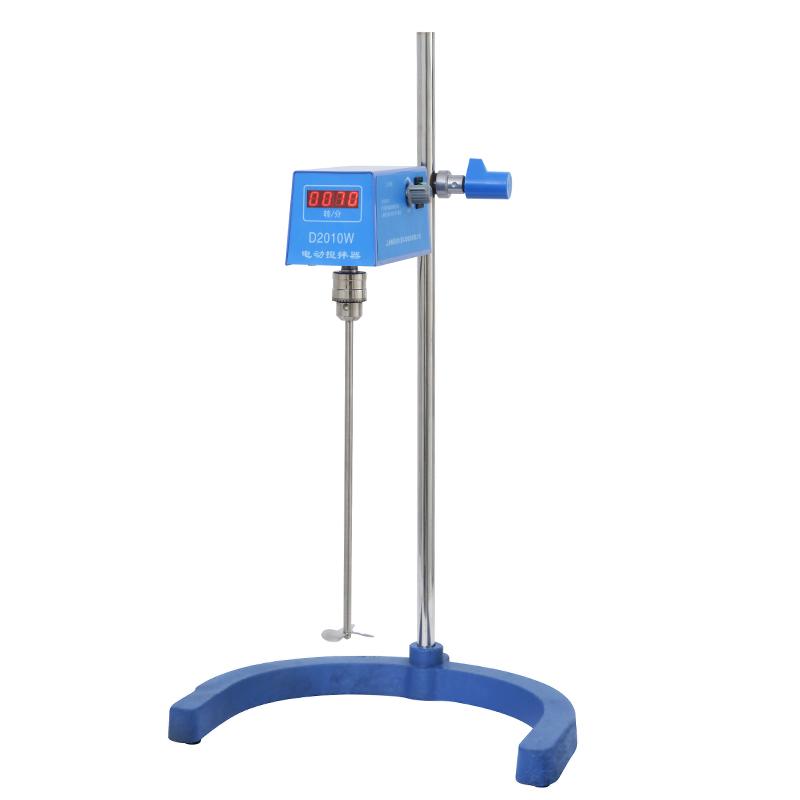

1. Installation: Load the column into the base and tighten it, tighten the screws, install the cross section on the column, and insert the main engine crossbar into the cross section to fix it
2. Install the stirringrod: the stirringrod can be directly loaded into the chuck for clamping, but to ensure the straightness of the stirringrod, there are soft connecting shafts available to connect the stirringrod
3. Power on and use: first put the power switch in the off position, adjust the knob counterclockwise to the minimum, then plug in the power supply, turn on the power switch, the switch built-in indicator light is on, Rotation speed is displayed as "0000", slowly adjust the knob clockwise to the required Rotation speed
Notice
• When using Stirrer, it should be accelerated slowly from slow to fast. If the straightness of the stirringrod is poor, the Rotation speed cannot be fast or the soft connecting shaft is adopted and fixed with a support sleeve in the middle.
• powerbasic stirrer D2010W, please do not get too close when working, so as to avoid dangers such as clothing and hair being involved
• Prevent liquid from splashing when stirring
