Overview

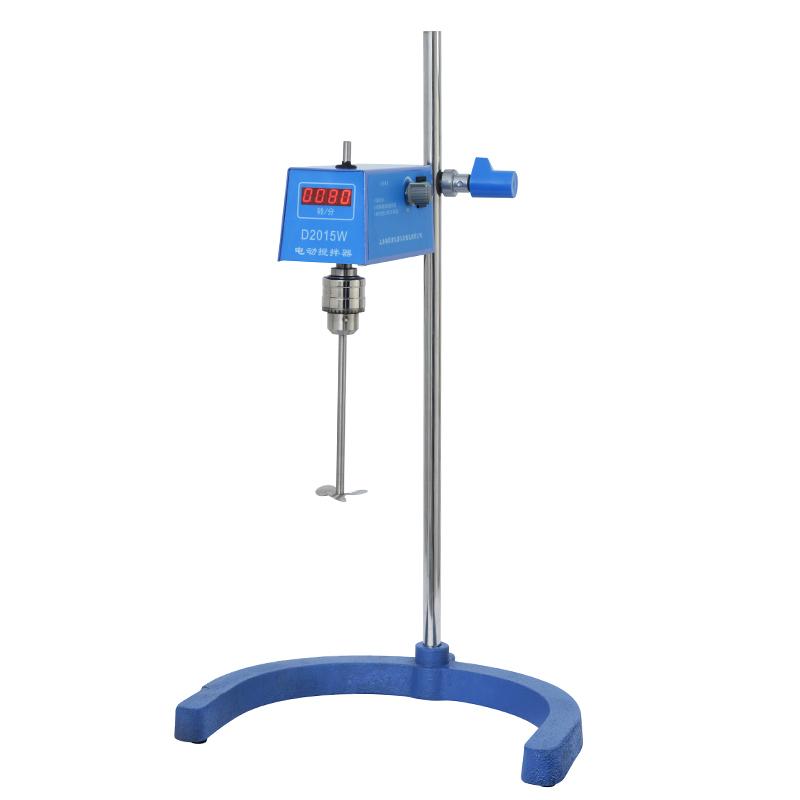

D2015W powerbasic stirrer adopts DC three-phase brushless motor drive, which has the characteristics of no spark, high efficiency, large torque and extremely small motor temperature rise. It can adapt to high viscosity liquid stirring and is equipped with digital display of stirring Rotation speed.
Features
1. Adopt DC three-phase brushless motor, no spark, high efficiency and large torque
2. Motor temperature rise is extremely small, suitable for high viscosity liquid stirring
3. Rotation speed digital display, intuitive operation
Principle
Through DC three-phase brushless motor drive stirringrod swirl/spin, to achieve liquid stirring function, the user can adjust the Rotation speed through the knob, digital screen real-time display of the current Rotation speed.
Steps
1. Installation: Load the column into the base and tighten the setting screws, install the cross section on the column, adjust the height and distance to fix
2. Install the stirringrod before use. The stirringrod can be directly loaded into the chuck for clamping, but to ensure the straightness of the stirringrod, there are soft connecting shafts available to connect the stirringrod.

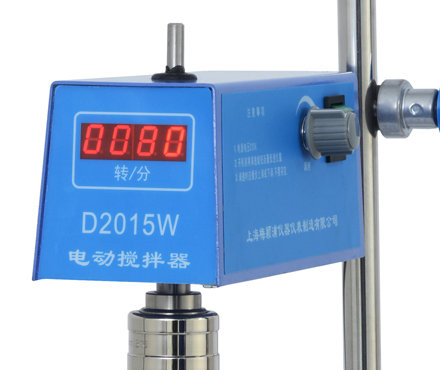

3. Before turning it on, put the power switch in the off position, adjust the knob counterclockwise to the minimum, then plug in the power supply, turn on the power switch, the built-in indicator light of the switch is on, and the Rotation speed is displayed as "0000". Slowly adjust the knob clockwise to the required Rotation speed
Notice
• When using, it should be accelerated slowly from slow to fast. If the straightness of the stirringrod is poor, the Rotation speed cannot be fast or the soft connecting shaft is adopted and fixed with a support sleeve in the middle.
• Stirrer, please do not get too close when working to avoid the danger of clothing, hair being involved, etc
• Prevent liquid from splashing when stirring
