Overview

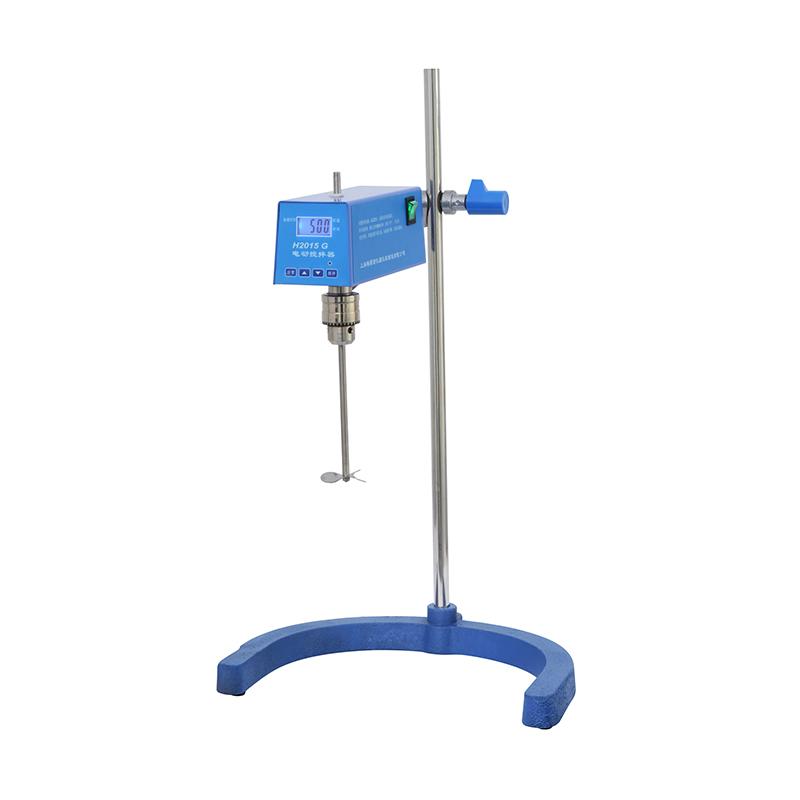

H2015G powerbasic stirrer is driven by brushless DC motor, controlled by single chip microcomputer, closed-loop speed regulation, Rotation speed is stable, with a timing function of up to 9999 minutes, and the LCD screen displays various functional parameters.
Features
1. Driven by brushless DC motor, stable and reliable operation
2, MCU control, closed loop speed regulation, Rotation speed accurate and stable
3. Timing function for up to 9999 minutes
4, LCD real-time display Rotation speed, timing time, acceleration time and other functional parameters
5. Speed range 60~ 1500rpm to meet different mixing needs
6. The clamping range of the rotary collet is φ 1.5~ 13mm, suitable for a variety of stirringrods
7. The height of the chuck is adjustable, with a maximum distance of 560mm, suitable for different containers
Principle

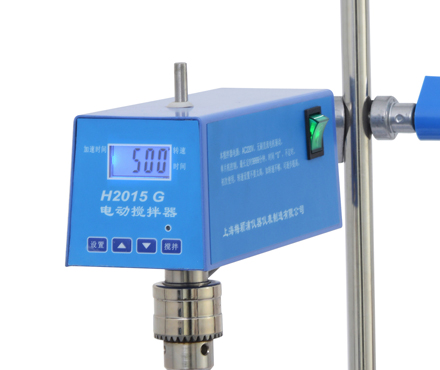

The H2015G powerbasic stirrer is powered by a brushless DC motor, and the MCU Control system realizes closed-loop speed regulation to ensure stable Rotation speed. The LCD screen can display parameters such as Rotation speed, timing time and acceleration time, and users can adjust parameters through the setting keys and lift keys. After the Stirrer starts, it will automatically reach the preset Rotation speed from slow to fast within the set acceleration time.
Applications
Laboratory Stirring, Chemical Stirring, Food Stirring, Pharmaceutical Stirring, Coating Stirring, Scientific Research Experiment
Steps
1. Plug in the power supply, turn on the power switch, and the LCD screen shows the original set Rotation speed
2. Press the setting button once, the number jumps, and press the up or down button to set the Rotation speed.
3. Press the setting button again to set the timing time in the same way. If the timing is not required, set it to "0".
4. Press the setting button again to set the acceleration time.
5. Press the setting button again to complete the setting. The LCD screen shows the Rotation speed just set.
6. Press the stirring button after the setting is completed, the stirring indicator light is on, and Stirrer automatically accelerates to the set Rotation speed
7. Press the setting button during operation to display the current Rotation speed and the remaining timing time respectively
8. Timed time to automatically stop, or press the stir button to stop manually
Notice
1. When Stirrer is used, it should be accelerated slowly from slow to fast. If the straightness of the stirringrod is poor, the Rotation speed cannot be fast or the soft connection shaft is used and fixed with a support sleeve in the middle
2. Please do not get too close when the H2015G powerbasic stirrer is working, so as to avoid dangers such as clothing and hair being involved
3. Prevent liquid from splashing out when stirring
4, the acceleration time should not be too short, especially in the case of liquid viscosity, large stirring amount and high stirring Rotation speed, the acceleration time is too short, which can easily lead to Stirrer overload
5. Select the appropriate Rotation speed each time the Operating Conditions change, and the Rotation speed setting should not be too high when using it for the first time
6. Rotation speed adjusted during operation cannot be saved, and needs to be reset for next use
