Overview

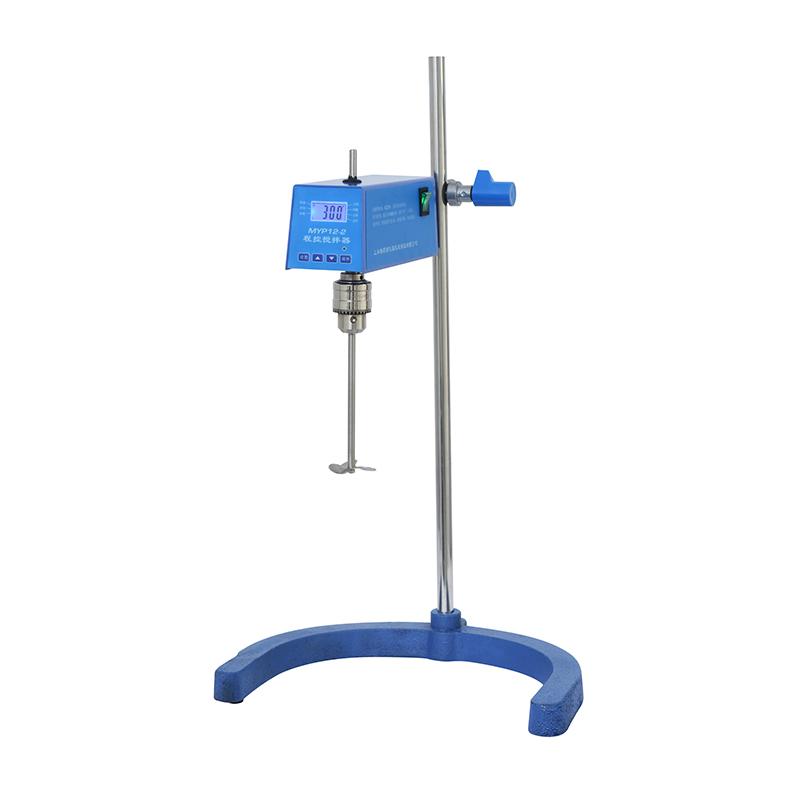

CHIJIU MYP12-2 250W programmable powerbasic stirrer is driven by brushless DC motor and controlled by microprocessor. Rotation speed, time and acceleration rate of each program are accurate, the structure is tight, and the operation is simple.
Features
1. Driven by a brushless DC motor
2. Microprocessor control
3. Rotation speed, time and acceleration rate are precisely adjustable
4. Compact structure
5. Simple operation
Principle
After the Stirrer starts, to set the Acceleration rises to the set Rotation speed, decelerate to stop after the set time of forward rotation, accelerate to the set reverse Rotation speed after the stop interval time, and decelerate to stop after the set time is reversed. After the stop interval time, the repeability is turned forward, and so the cycle ends until the timing.
Steps
1. Installation: Install the column on the base, the host is fixed on the column with a cross section, install the stirringrod, and adjust the height
2. Settings: Press the Settings button to set the forward Rotation speed, forward rotation time, forward rotation acceleration rate, intermittent time, reverse Rotation speed, reverse time, reverse acceleration rate, second intermittent time and timing time
3. Start: Press the stir button to start working
Notice
1. The power socket should be well grounded
2. All screws should be tightened during installation
3. The deceleration time should be less than the intermittent time
4. The acceleration time should be less than the forward or reverse time, otherwise the set Rotation speed will not be reached
