Overview

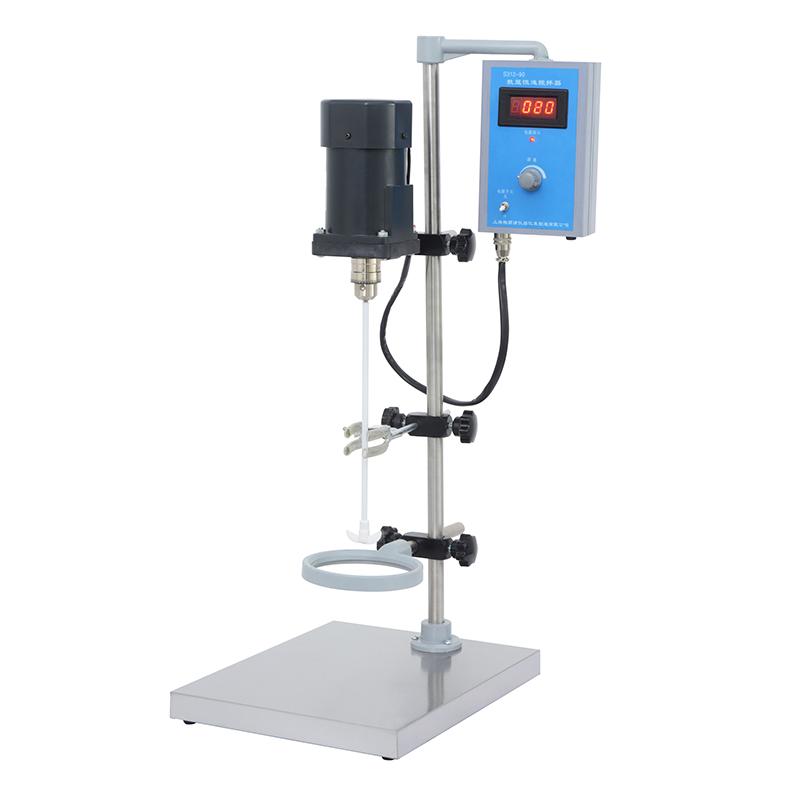

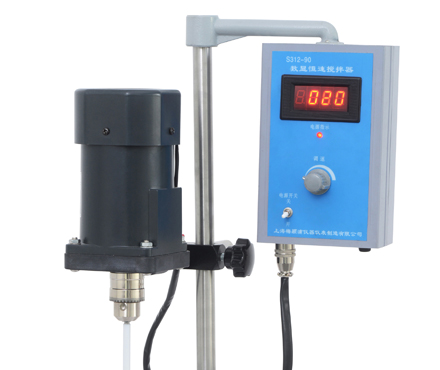

CHIJIU S312-90 constant speed Stirrer adopts three-phase AC induction motor, equipped with imported inverter speed regulation, and the motor torque is not affected by Rotation speed. The product adopts large chassis, three columns and multi-slider design, which is more applicable and equipped with Rotation speed digital display function.
Features
1. Adopt three-phase AC induction motor with stable torque
2. Imported inverter speed, Rotation speed can be adjusted accurately
3. Large Chassis Design, Good Stability
4. Three-column structure, firmly supported
5. Multi-slider design, flexible adjustment
6. Rotation speed digital display function, intuitive and convenient
Principle
The constant speed Stirrer is driven by a three-phase AC induction motor and uses a frequency converter to control the motor Rotation speed to realize the constant speed stirring function. The motor torque remains stable during the speed regulation process to ensure uniform stirring effect.
Steps
1. Insert the pole into the base hole and tighten the M6 setting screw
2. Load the motor bracket into the upper slider mounting hole
3. Put the electrical box on the top of the pole and tighten the setting screw
4. Align the motor plug with the inverter socket and connect it, and hear a "click" to indicate that it is locked.
5. Plug in the power supply, turn on the switch, adjust the knob to select Rotation speed
6. Release the upper slider knob to adjust the motor position, the middle slider to adjust the bottle clip position, and the lower slider to adjust the tray position
7. Insert the standard stirringrod into the collet hole and tighten the collet with both hands
Notice
• The power supply needs to be connected to a Three hole socket with protective grounding
• When plugging in or unplugging the seven-core motor, the power supply needs to be cut off.
• Stirrer should be placed on a flat workbench
• Avoid running for a long time at the lowest Rotation speed to prevent the motor from heating up
• If the indicator light is not on, check whether the fuse at the bottom of the inverter is open and replace it according to the original specifications
• Check the concentricity after the stirringrod is clamped, and then gradually accelerate after clamping
• The temperature rise of the motor shell is allowed to be 45 ° C. When overheating, the stirringrod fins should be reduced or the Rotation speed should be increased
• When the motor overheats, choose the appropriate stirringrod swirl/spin diameter
