Overview

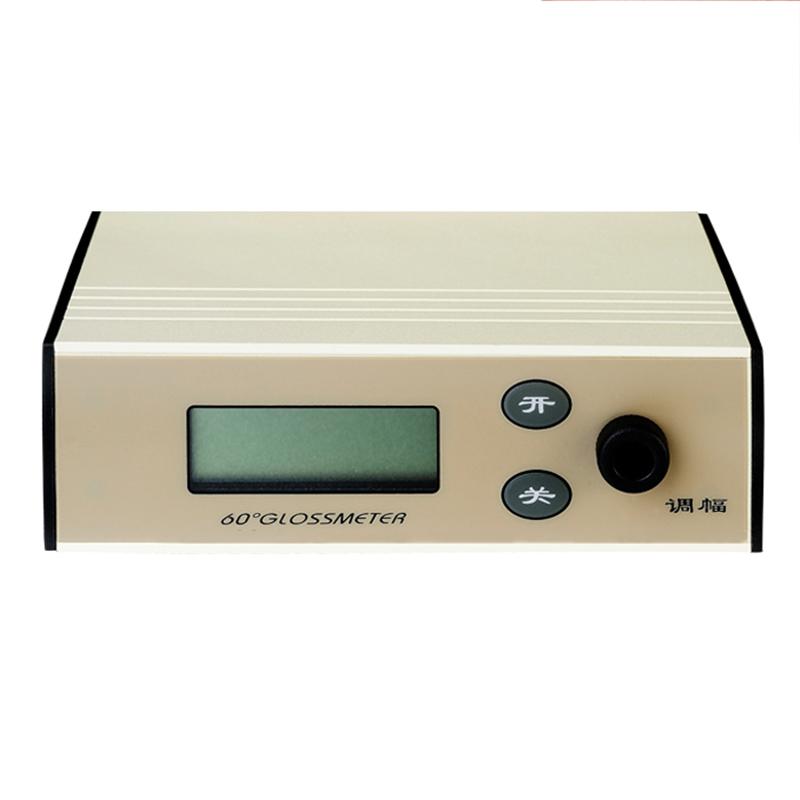

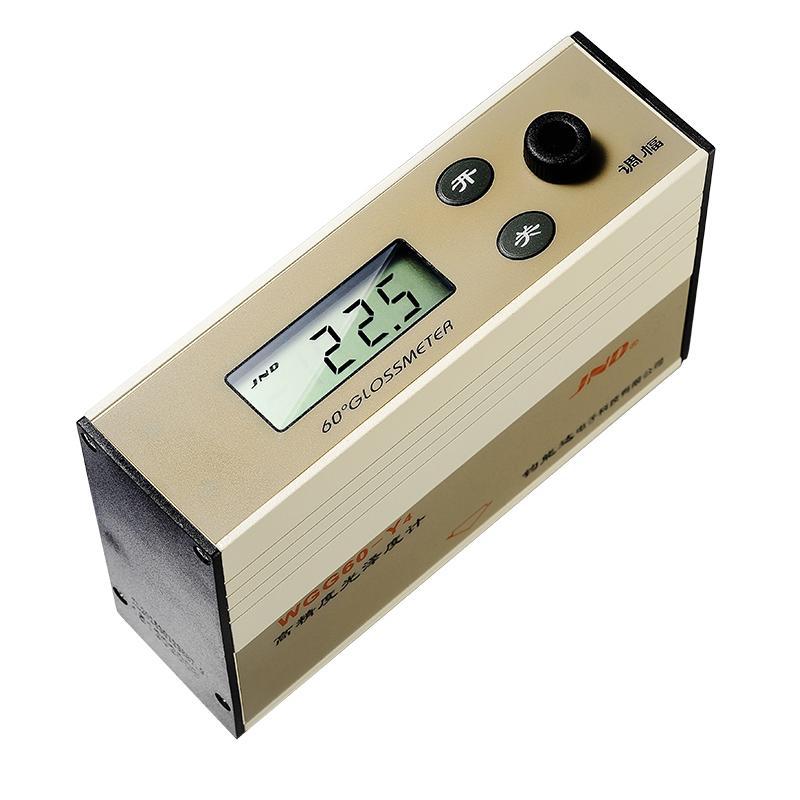

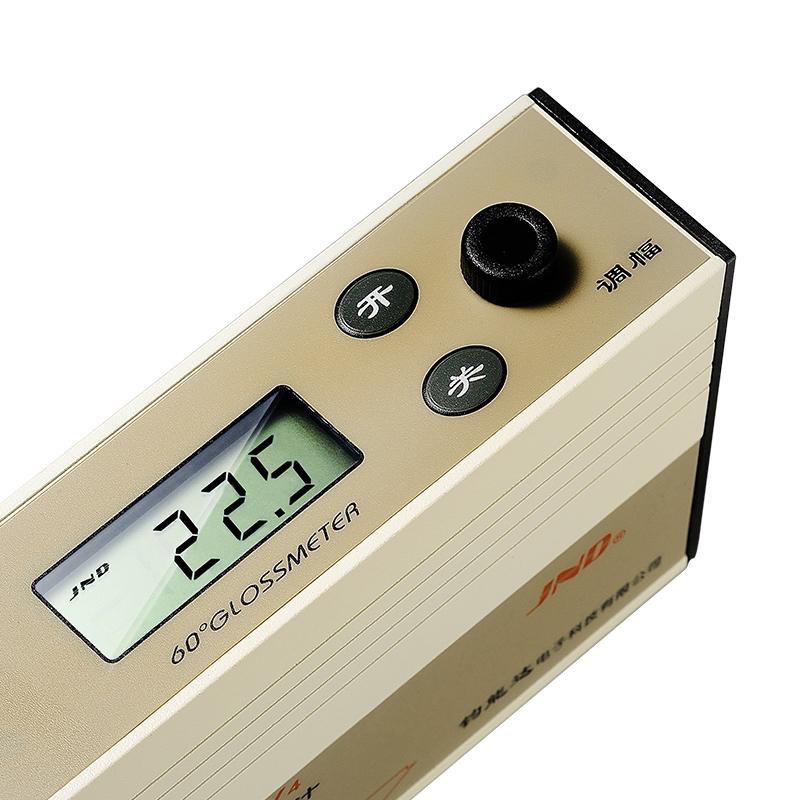

WGG60-Y4 Glossiness Meter is a gloss measurement instrument designed and manufactured by JND brand with reference to international standard ISO 2813 and Chinese national standard GB/T9754. The Gloss value of the instrument can be Traceability from the Glossiness benchmark of Shanghai Institute of Measurement and Testing Technology, and all performance indicators meet the national standard JJG 696-2002 first-class work machine requirements.
Features
1. Using imported chips, the efficiency is as high as 97%, and it can be used continuously for up to 48 hours on a complete charge. It can be charged once a month for normal daily use.
2. With on-site error compensation function design, it can effectively eliminate errors to ensure accurate and reliable measurement data.
3. National first-class standard black (high) white (low) Calibration plate, in line with national standards, can easily pass Measurement verification.
4. Adopt professional optical path design, stable and reliable measurement data, minimal Inter-instrument Agreement and excellent reproducibility.
5. Ergonomic shell, the clever center configuration echoes the shell, making the measurement handy.
6. Upgrade button, open and test immediately.
7. Ultra-wide voltage, covering the world.
8. The soft surface treatment of the bottom probe effectively prevents scratching the tested item.
Principle
The Glossiness Meter uses a professional optical path design to illuminate the measured surface with 60 ° Measurement Angles, receive reflected light and calculate the Glossiness value, and has on-site error compensation to ensure accurate and reliable data.
Applications
Gloss measurement of inks, coatings, paint, paints, varnish and other surface Gloss measurement, building decoration materials: Stone, ceramics, ceramic tiles, marble, vitrified polished tiles and other surface Gloss measurement, printing, bamboo and wood products, fabrics, film paper, plastics and other surface Gloss measurement, rubber, leather, automobile maintenance and other surface Gloss measurement, other Non-metallic materials Surface Gloss measurement
Standards
ISO 2813、GB/T9754、ASTM D2457、ASTM D523、GB/T13891、GB/T7706、GB/T8807、JJG 696-2002
Steps
1. Test when turned on.

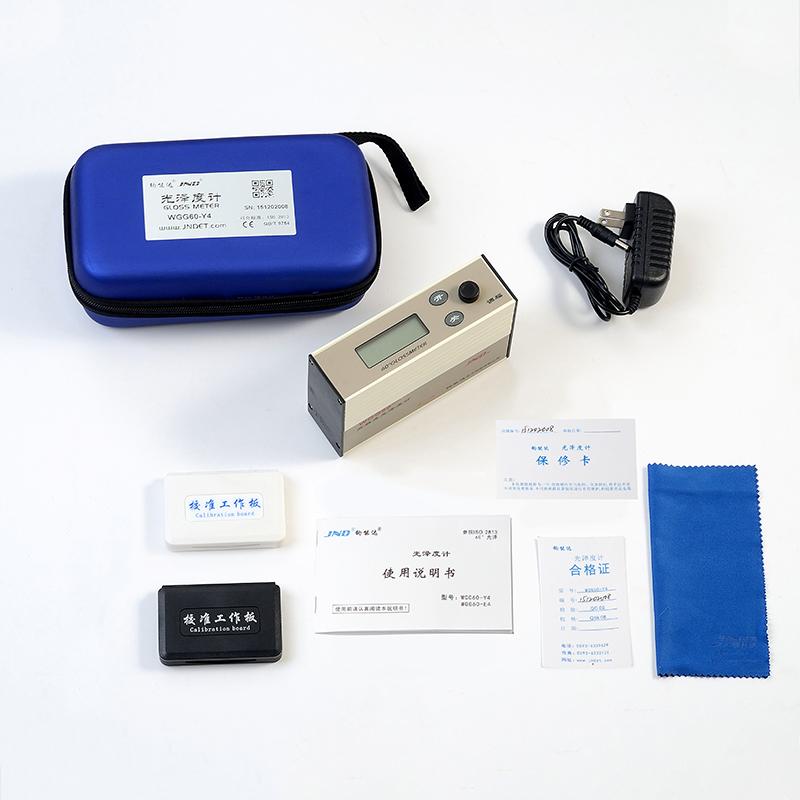

2. Use the national first-class standard black (high) white (low) Calibration plate for calibrating.

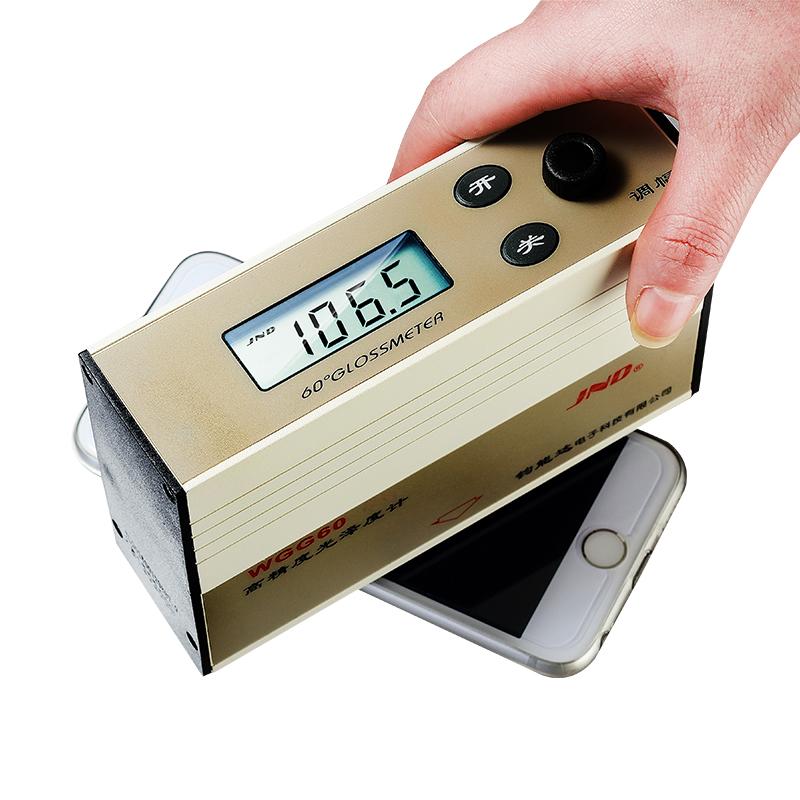

3. Place the bottom probe of the instrument on the surface of the tested item for measurement.
Notice
• Operating temperature range is 15~ 40 ℃.
• The relative humidity should be less than 85% without condensation.
• Storage temperature is -10 ° C to 60 ° C.
• Charging time is 14 to 16 hours.
• Avoid scratching the tested item when using, and the bottom probe of the instrument has been treated with a soft surface.
