Overview

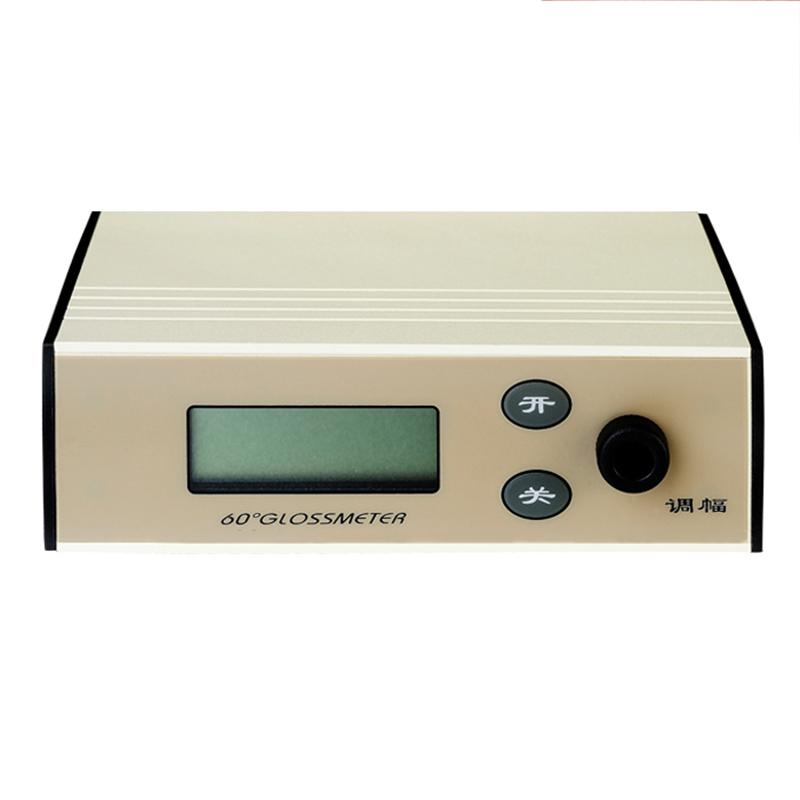

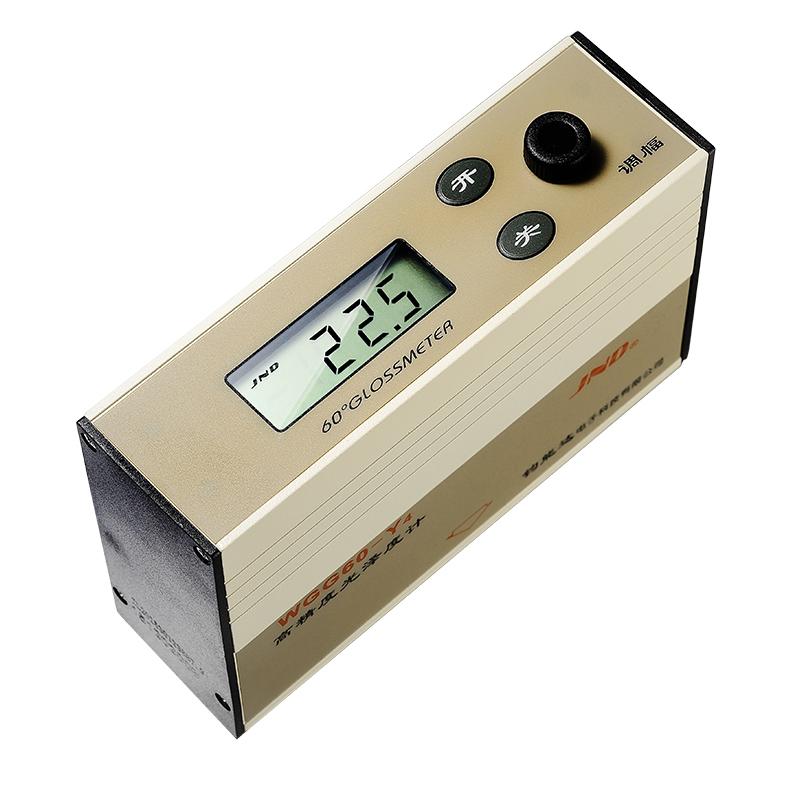

WGG60-EJ Metal Glossiness Meter is a gloss measurement instrument designed and manufactured with reference to international standard ISO 2813 and Chinese national standard GB/T9754. In order to adapt to high Gloss and wide range measurement, the extended Measurement range is defined according to ISO 2813. Its performance indicators meet the requirements of the national standard JJG 696-2002 work machine, and the Gloss value can be Traceability from the Glossiness benchmark of Shanghai Institute of Measurement and Testing Technology (SIMT).
Features
1. High Accuracy, Large Range Design
2. Using imported chips, the efficiency is as high as 97%, and it can be used continuously for up to 48 hours on a complete charge. It can be charged once a month for normal daily use.
3. With on-site error compensation function design, it can effectively eliminate errors to ensure accurate and reliable measurement data

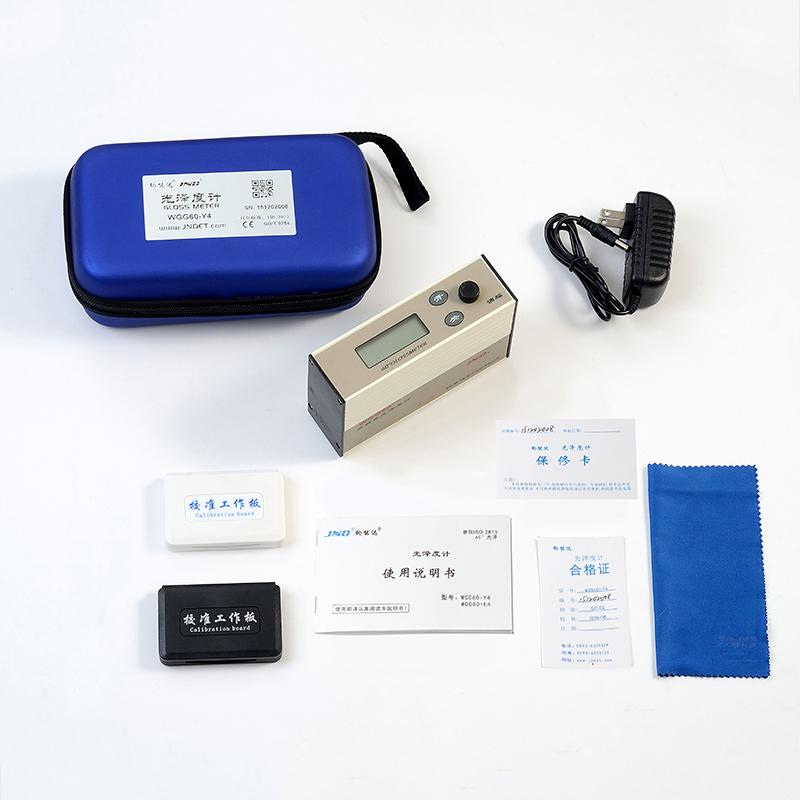

4. National first-class standard: Mirror (high) black (medium) white (low) Calibration plate, in line with national standards, can easily pass Measurement verification
5. Adopt professional optical path design, stable and reliable measurement data, minimal Inter-instrument Agreement and excellent reproducibility
6. Ergonomic shell, clever center configuration echoes the shell, making measurement handy (Product Appearance Patent No.: ZL 201530123887)
7. Upgrade button, ready to test
8. Ultra-wide voltage, covering the world
9. The soft surface treatment of the bottom probe effectively prevents scratching the tested item
Principle
Measurement range of Glossiness is extended according to ISO 2813 definition, and stable and reliable measurement data is achieved through professional optical path design.
Applications
Metal Polished Surfaces, Eletroplating Surfaces, Brushed Surfaces, Non-metallic Surfaces, paints Coatings, Decoration Materials, Building Materials, Plastic Materials, Bamboo and Wood Products, Ceramic Products, Leather Products, Film Paper, Printing inks, Stone
Standards
ISO 2813、GB/T9754、JJG 696-2002、ASTM D2457、ASTM D523、GB/T13891、GB/T7706、GB/T8807
Steps
Step 1 Turn on the instrument
2. Calibrate with standard Calibration plate

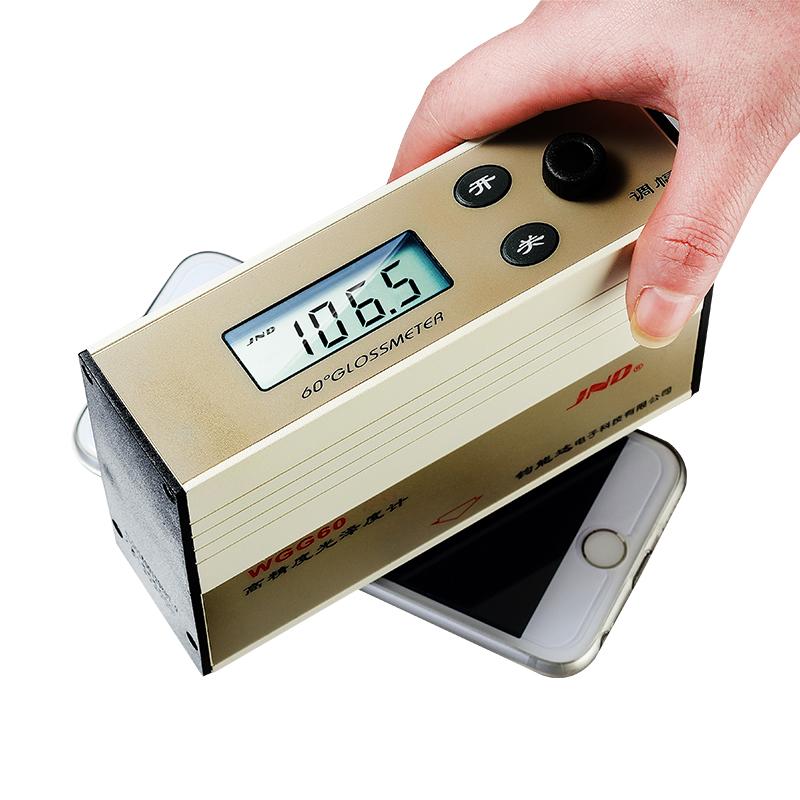

3. Place the probe on the surface of the tested item for measurement
4. Read the measurement data on the LCD display
Notice
• Operating temperature range is 15~ 40 ℃
• relative humidity should be less than 85%, no condensation
• Storage temperature is -10 ℃~ 60 ℃
• Make sure the instrument is fully charged before use
• Avoid scratching the tested item during measurement
