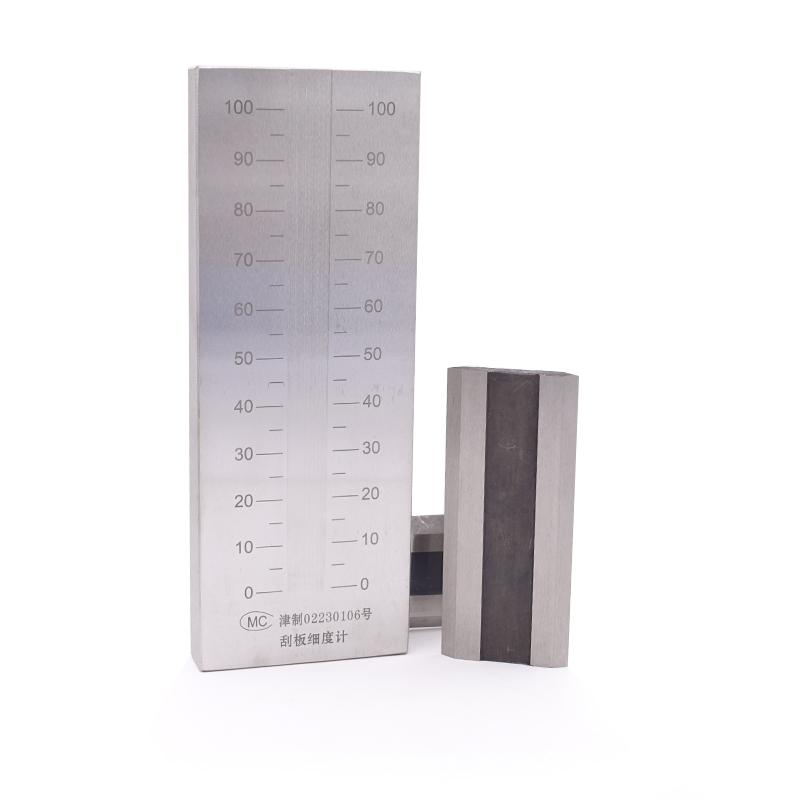

JINGKELIAN QXP 0-25 ISO single-channe GrindoMeter 0~ 25 micron range

Name: JINGKELIAN QXP 0-25 ISO single-channe GrindoMeter 0~ 25 micron range
Brand: JingKeLian
SKU: NB000556
Price: 162.0 USD
Availability: InStock

$ 162.00Ex works

Range 0~ 25 microns, Graduation 2.5 microns, stainless steel, groove width 13mm, equipped with two drawdown blades, in line with international standards, suitable for fine particle fineness testing.

Model

Get Quote

Category : Fineness Gauge

Brand : JingKeLian

SKU : NB000556

Service :The delivery and service By NBCLab.Com

Overview

The JINGKELIAN QXP 0-25 ISO single-channe Grindometer is a Measurement appliance with a range of 0 to 25 microns and a Graduation of 2.5 microns, designed for the Coating paints industry. Equipped with a scraper and two stainless steel drawdown blades, the product is easy to operate and meets ISO 1524 standards.

Features

1.Single-channe design, groove width 13mm 2. Range 0~ 25 microns, Graduation 2.5 microns 3. Equipped with two stainless steel drawdown blades 4. Simple and convenient operation 5. In line with ISO1524 international standards

Principle

The Grindometer scraping sample on a blade with a scale groove by a drawdown blade, the particle fineness is measured according to the distribution of the sample in the groove, for accurate measurement of particle fineness Paints and related products.

Applications

Coatings and paints

Standards

ISO1524—1983（E）

Steps

1. Prepare the sample to be tested 2. Place the sample at the beginning of the scraper groove 3. Use the drawdown blade to scrape the sample along the groove at a constant speed 4. Observe the distribution of the sample in the scale groove 5. Read the corresponding fineness value

Notice

• The front of the scraper can be used for daily inspection of the straightness of the drawdown blade • Wash the drawdown blade after use, apply anti-rust oil and store it in the box • The front of the scraper and the edge of the drawdown blade must not be bumped • Grindometer should be inspected by our factory after one year of use

Measurement Range
0-25um
minimum reading
2.5um
Dimensions of scraper
170x65x13mm
Effective Size of groove
140*13mm
