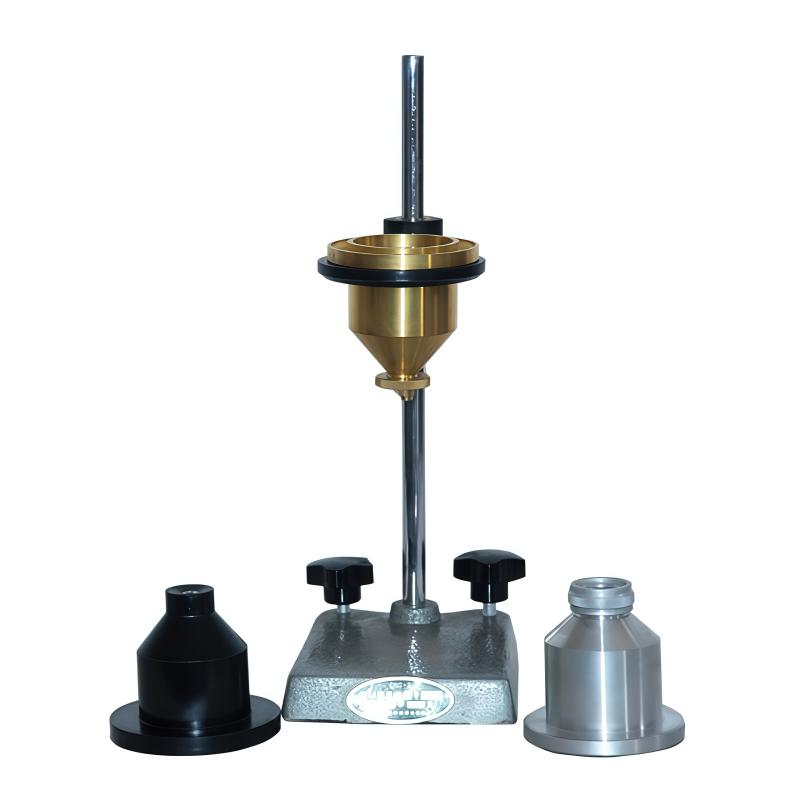

JINGKELIAN QND-4A coated 4 Viscometer bakelite Cup, flow hole diaMeter 4mm Capacity 100ml

Name: JINGKELIAN QND-4A coated 4 Viscometer bakelite Cup, flow hole diaMeter 4mm Capacity 100ml
Brand: JingKeLian
SKU: NB000561
Price: 120.0 USD
Availability: InStock

$ 120.00Ex works

Bakelite Cup body and stainless steel filter, flow time 0~ 150 seconds, flow hole diaMeter of 4mm, capacity of 100ml, in line with GB/T 1723 standard, can be used with the bracket to improve Stability.

Model

QND-4A

Get Quote

Category : Viscosity Cup

Brand : JingKeLian

SKU : NB000561

Service :The delivery and service By NBCLab.Com

Overview

JINGKELIAN QND-4A coated 4 Viscometer is a bakelite viscosity cup used to test the conditional viscosity determination of Coating outflow time not exceeding 150 seconds. The viscosity cup has an outlet diameter of 4mm and a cup body volume of 100ml, which complies with the relevant provisions of the national standard GB/T1723-93 "Coating Viscosity Determination Method".

Features

1. Bakelite cup body, stainless steel filter 2. Measurement range 0-150 seconds 3. Flow hole diameter 4mm, accuracy +/- 0.02mm 4.100Ml standard capacity 5. Stability of viscosity cup bracket can be purchased separately

Principle

QND-4A Coating 4 Viscometer measured the conditional viscosity of the Coating by measuring the time it takes 100ml Coating to completely flow out of the standard flow hole. The longer the flow time, the higher the viscosity.

Applications

Coating viscosity determination

Standards

GB/T1723-93

Steps

1. Prepare Coating Samples for Testing 2. Coating into 100ml viscosity cup 3. Record the time from the beginning of the flow hole to the complete flow of the Coating 4. Read the outflow time as a viscosity indicator

Notice

The outflow time should not exceed 150 seconds • It is recommended to use a viscosity cup holder for more stable test results • Ensure that the flow hole is clean and free of blockage • Test in strict accordance with standard operating procedures

outflow time
0~150s
flow hole diameter
4mm
capacity
100ml
Total height
72.5mm
Cup body material
Bakelite
Nozzle material
stainless steel
Applicable standard
GB/T 1723
Outlet height
4±0.02mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
