Overview

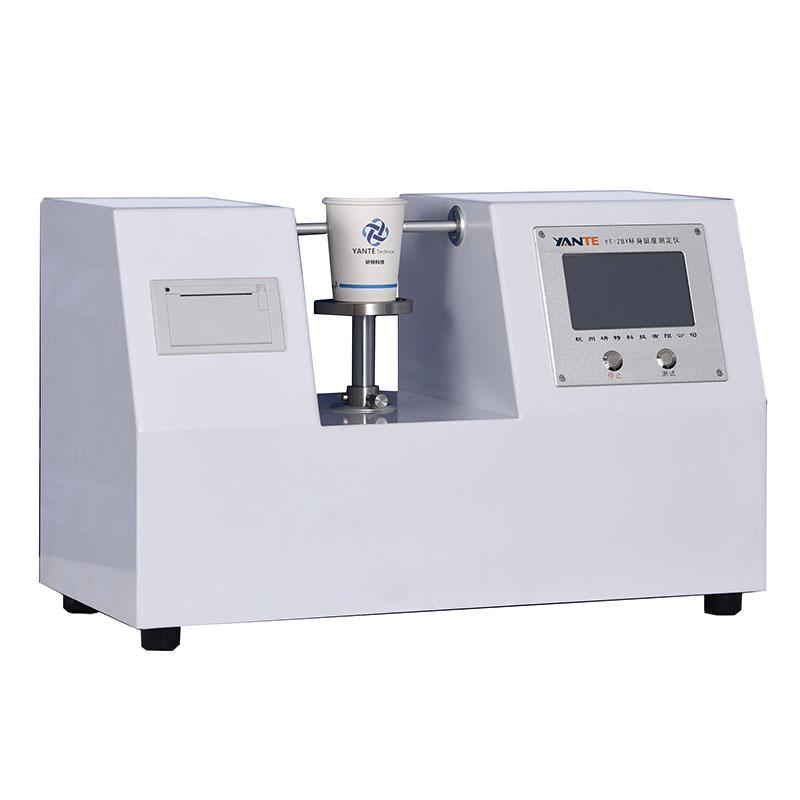

YT-ZBY cup body stiffness tester is an intelligent testing instrument designed according to GB/T 27950-2011 "paper cup" national standard requirements, and is a satisfactory paper cup body stiffness testing instrument.
Features
1. One-click operation of the experimental process to avoid human errors
2. The movable bench can be lifted and locked, suitable for samples of different heights
3. The main board adopts new technology and new design, and the CPU adopts 32-bit ARM processor to improve the processing speed and calculate the data more accurately and quickly
4. Adopt 5-inch color Touchscreen, Chinese display, touch buttons, easy to understand operation, real-time display of anti-pressure-deformation Linear dispersion and time information
5. Double measurement head structure design, more accurate test data
6. The relative distance between the two measurement heads can be preset on the Touchscreen, saving test time
7. The instrument has the function of automatically restoring the initial position after exceeding the range
8. Using thermal printing movement, no need to use inks and color ribbons, no noise when working, fast printing speed
9. Equipped with a standard RS232 interface, it can communicate with microcomputer software (purchased separately)
Principle
The instrument applies pressure to the cup body through the double measurement head structure, real-time measurement of the relationship between anti-pressure and deformation, uses 32-bit ARM processor to calculate the stiffness data quickly and accurately, and displays the test Linear dispersion and results through Touchscreen.
Applications
Paper cups, paper bowls
Standards
GB/T 27950-2011
Steps
1. Turn on the power supply and start the instrument
2. Set the relative distance between the two measurement heads on the Touchscreen
3. Place the sample on the movable stand and adjust the height to lock
4. Start the testing process with one click
5. View real-time display of pressure-deformation Linear dispersion and data
6. After the test is completed, the instrument will automatically return to its original position
7. Output test results through thermal printer
Notice
• Ambient Temperature should be within 10~ 35 ℃
• Working environment relative humidity should be less than 85%
• Power supply voltage range is AC (100~ 240) V, (50/60) Hz
• The height of the paper cup is applicable from 15 to 120mm.
• Paper cup diameter applicable range is 20~ 150mm
• Measurement range is 0~ 20N to avoid over-range use
• If you need to communicate with the microcomputer, you need to purchase an RS232 interface and software separately
