Overview

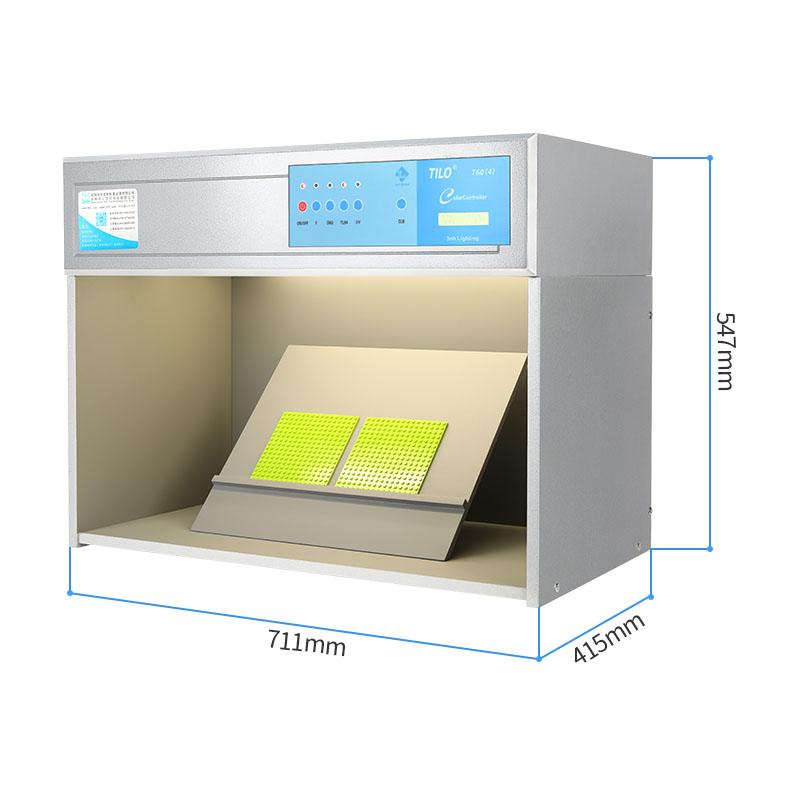

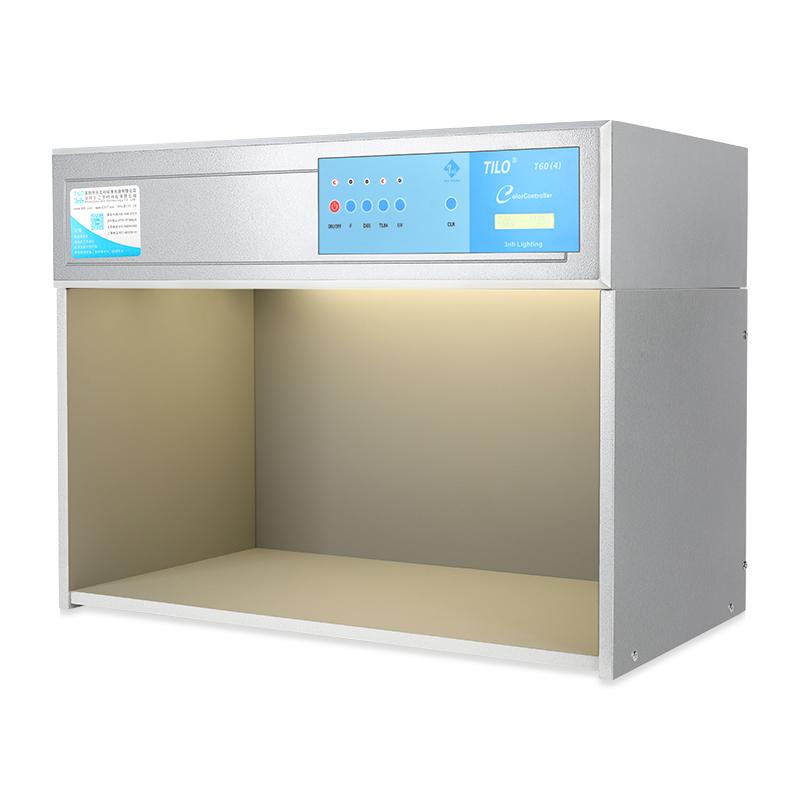

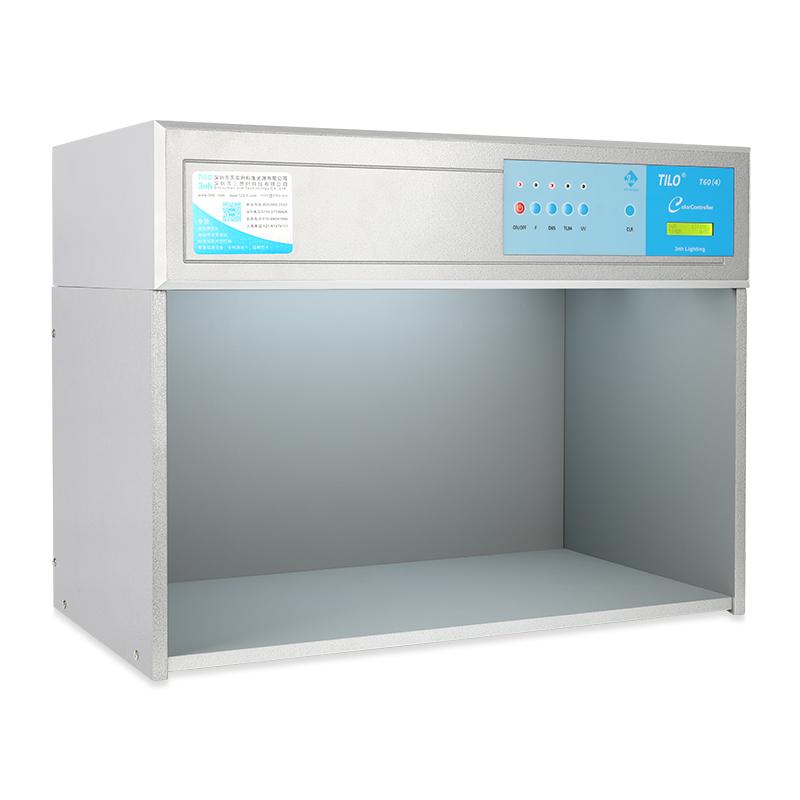

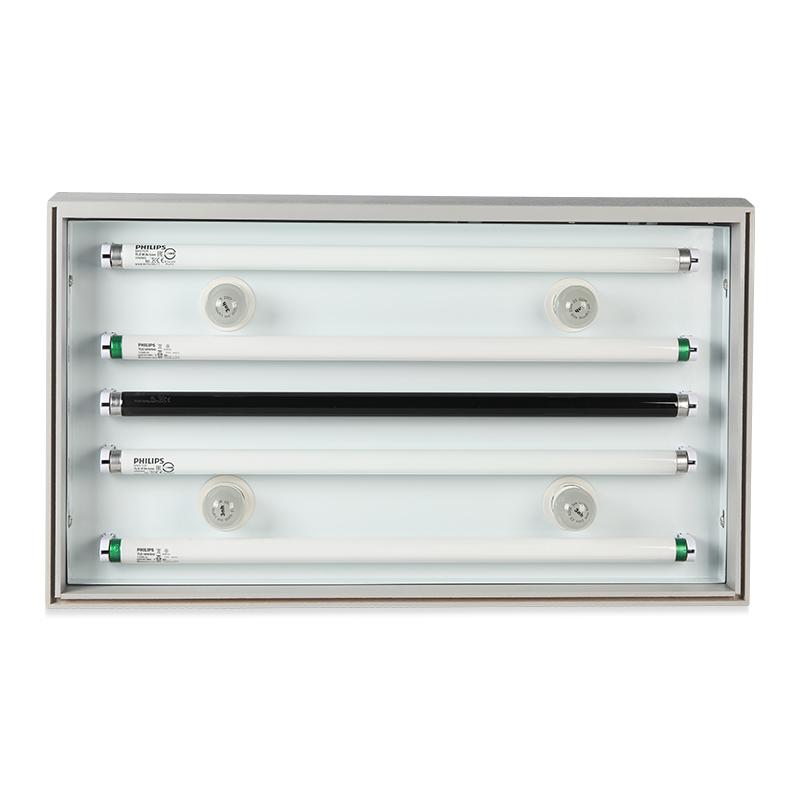

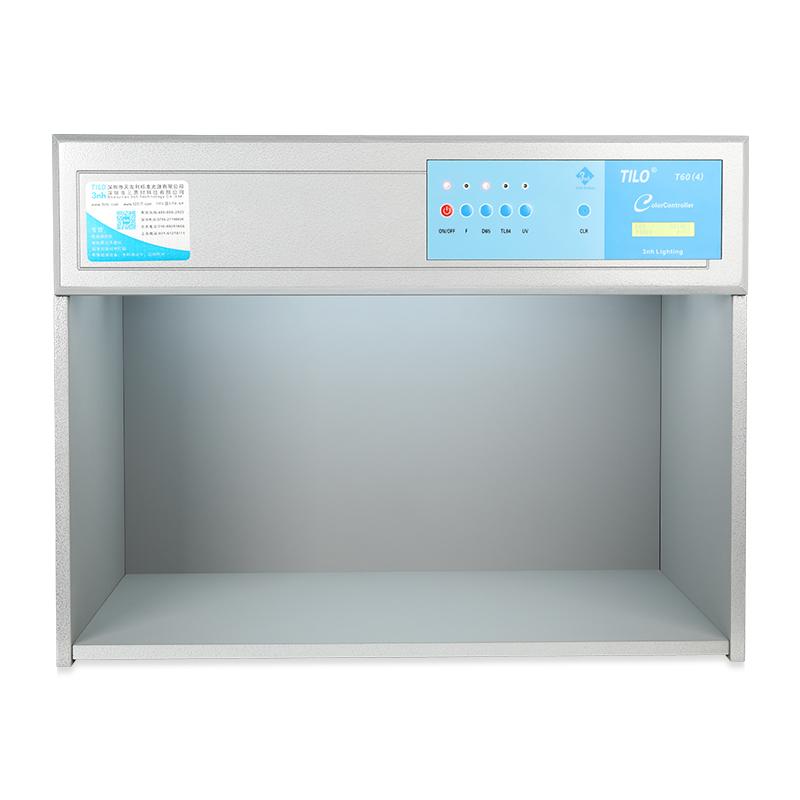

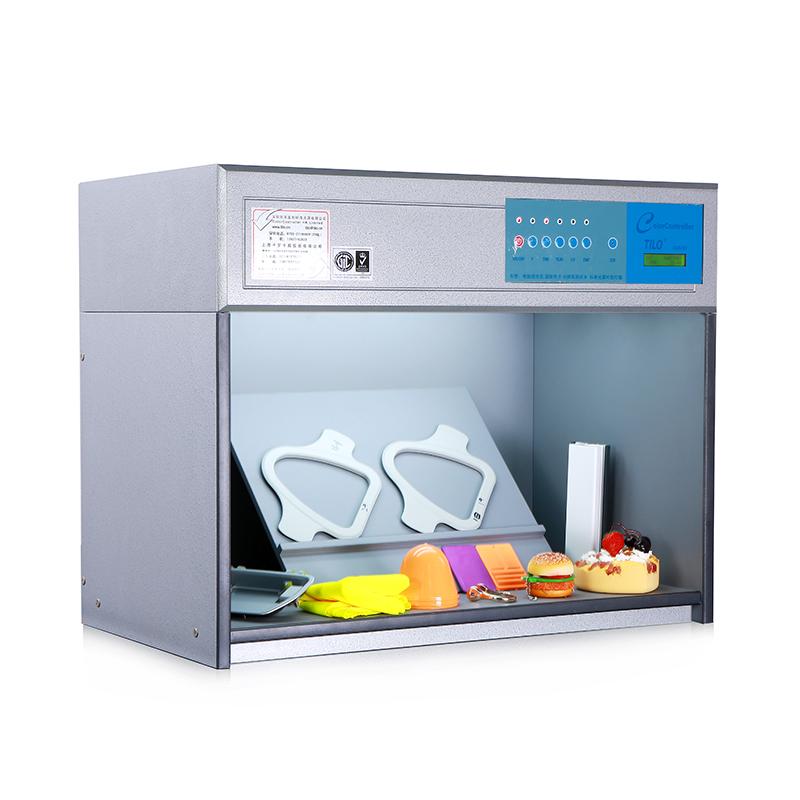

TILO T60 (4) Color Assessment Cabinet is a Color Assessment Cabinet equipped with four Illuminants: D65, TL84, F, and UV. It is used to verify the color performance of products under different Illuminants and provide professional data support.
Features
1. Display the usage time and total time of each Illuminant
2. Illuminant automatic switching, with Metamerism function
3. No preheating, no flashing, can ensure fast and reliable evaluation of Color
4. Low energy consumption, no heat (no heat dissipation required), high luminous efficiency
5. Small size, easy to use, low price
Principle
Standard light sources D65, TL84, F, UV are configured to simulate lighting conditions in different environments, and Illuminant is automatically switched to verify the performance of product colors under different Illuminants to ensure the accuracy and Reliability of color evaluation.
Applications
Color verification, Colorimetric products, quality control
Standards
International standard Artificial Daylight (D65), European, Japanese, Chinese Store Illuminant (TL84), Family Hotel Light (F), Ultraviolet Light Source (UV)
Steps
1. Connect the power supply (220V/50Hz or 110V/60Hz)
2. Turn on the light box power switch
3. Select the desired Illuminant (D65, TL84, F or UV)
4. Place the product to be tested in the light box or on the 45 ° standard stand
5. Observe and record color performance
6. Turn off the power after use
Notice
- Power supply voltage matching (220V/50Hz or 110V/60Hz)
- Check whether the Illuminant is working properly before use
- Avoid use in humid or high temperature environments
- Regularly clean the inside of the light box to maintain Optical Properties
- 45 ° standard stand is an optional accessory, which needs to be customized according to the light box model
