Overview

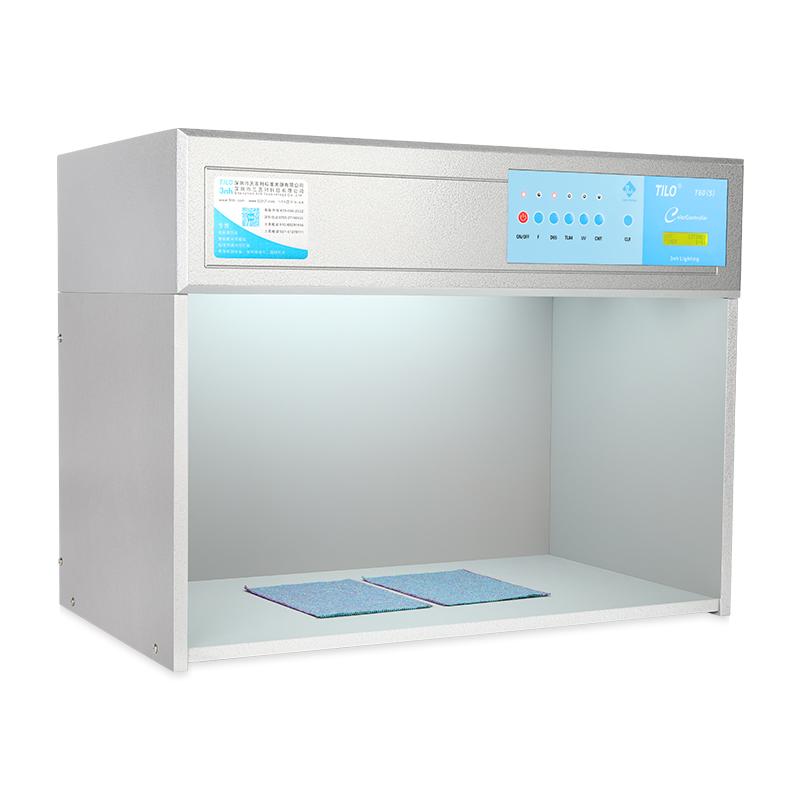

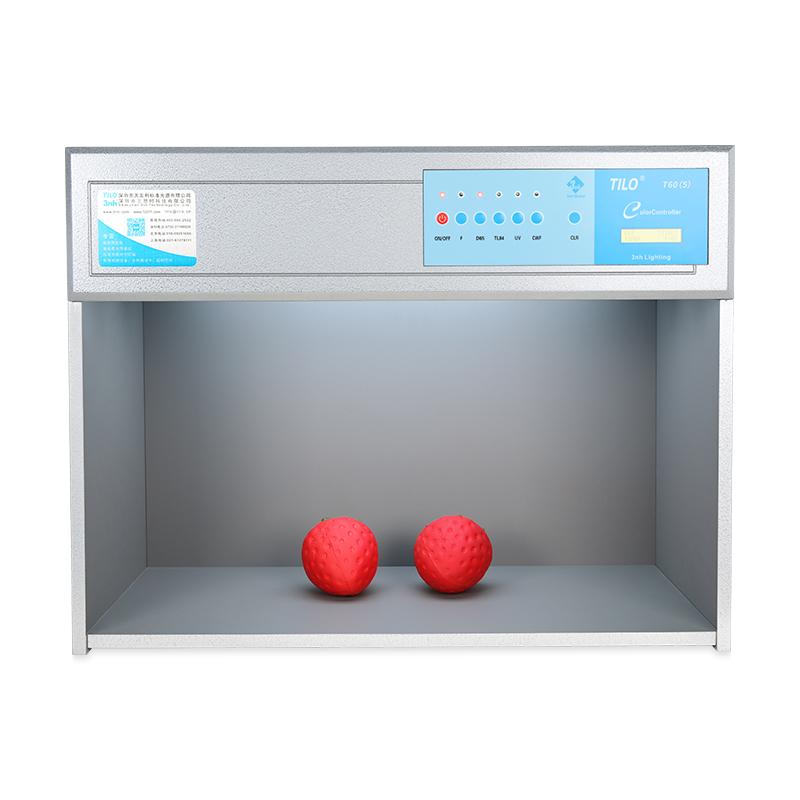

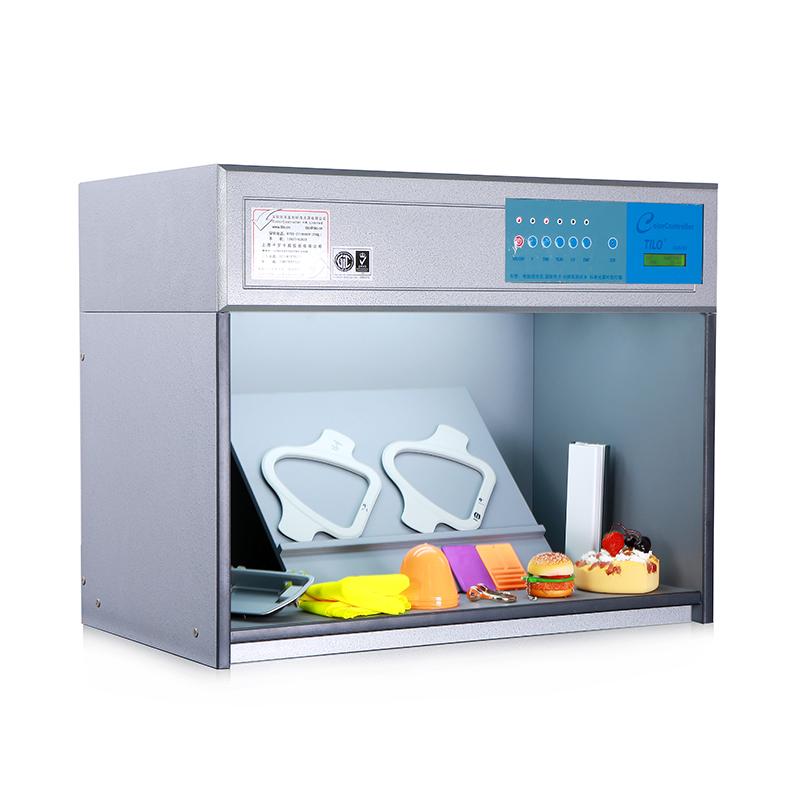

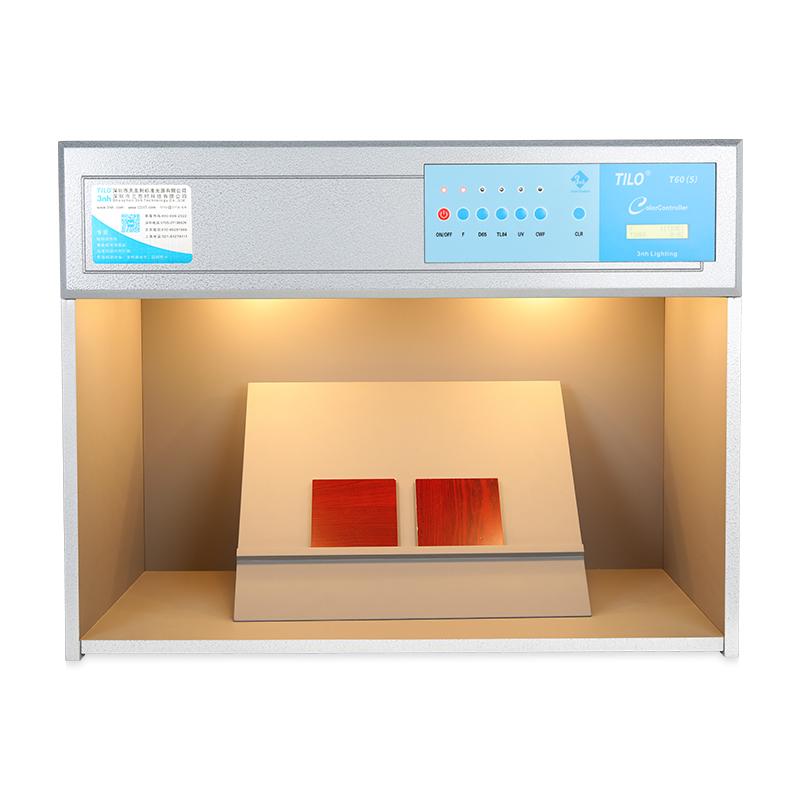

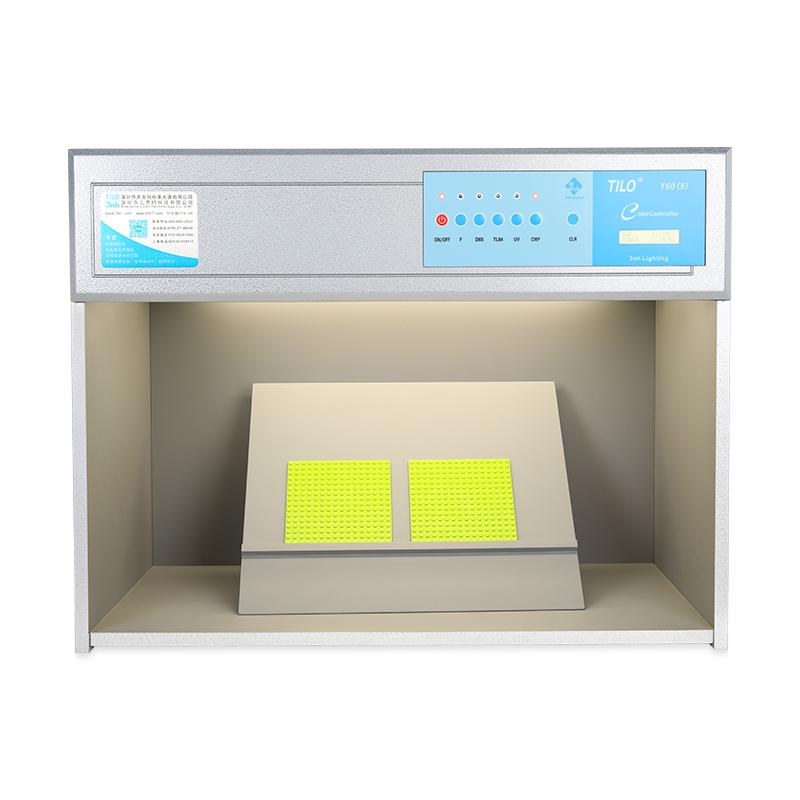

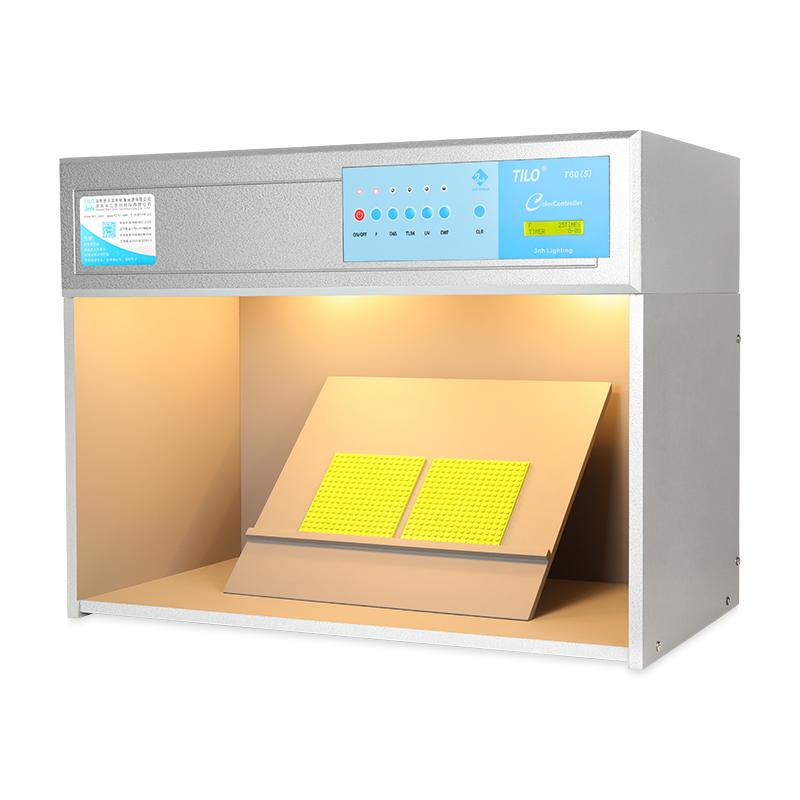

TILO T60 (5) Color Assessment Cabinet is a professional Colorimetric device with five Illuminant configurations. It provides five Illuminant options of D65, TL84, CWF, F, and UV to meet the color comparison needs in a variety of Illuminant environments. The light box can effectively solve the problem of products presenting different colors under different Illuminants and provide users with professional Colorimetric methods.
Features
1. Display the usage time and total time of each Illuminant
2. Illuminant automatic switching function
3. Metamerism function
4. Instant use, no need to preheat, no flashing
5. Low energy consumption, no heat generation, high luminous efficiency
6. Configuration of British and American Standard Common Illuminants
7. Compact size, easy to use
Principle
The Color Assessment Cabinet provides a standardised multi-Illuminant environment for consistent Color effects across Illuminants. Visual Colorimetry allows users to accurately assess Color conformity under controlled Illuminant conditions.
Applications
Color comparison, product quality control, Spinning & weaving clothing, printing Encasement, Coating paints, Plastic products
Standards
D65 international standard artificial daylight, TL84 European store Illuminant, CWF American cold white store Illuminant, F family hotel lamp, UV light source
Steps
1. Power on (220V/50Hz or 110V/60Hz)
2. Select the required Illuminant
3. Put the product to be tested into the light box
4. Colorimetric evaluation
5. Record the comparison results
Notice
• Please select the correct power supply specification (220V/50Hz or 110V/60Hz) according to the area of use
• Make sure the light box is placed on a stable and flat countertop before use
• Avoid use in strong light environment, so as not to affect Colorimetric effect
• Regularly check the use time of Illuminants and replace the aging Illuminants in time
• Optional 45 ° standard stand for more accurate viewing angle
