Overview

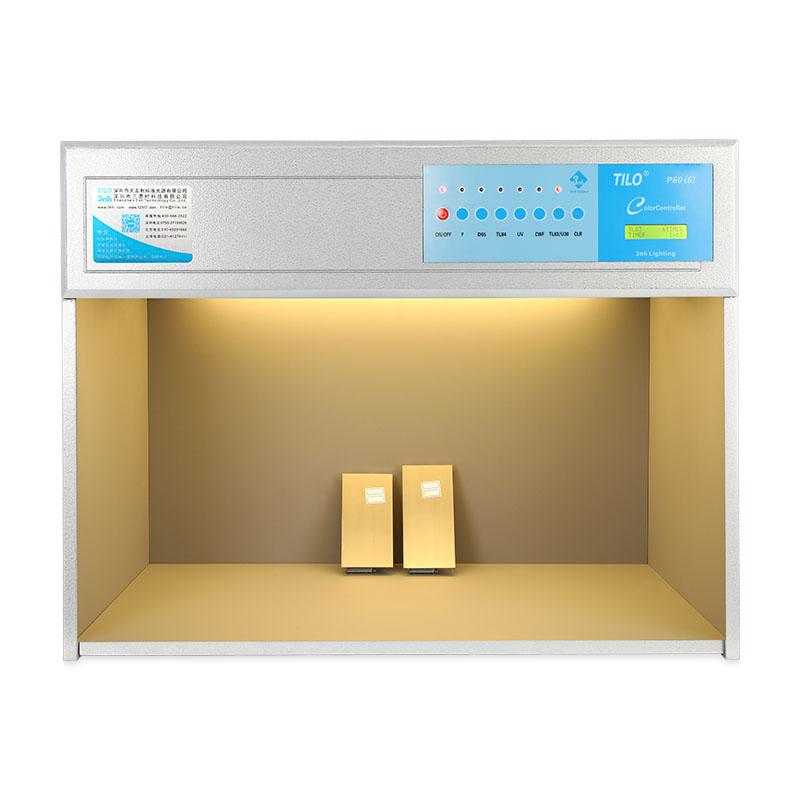

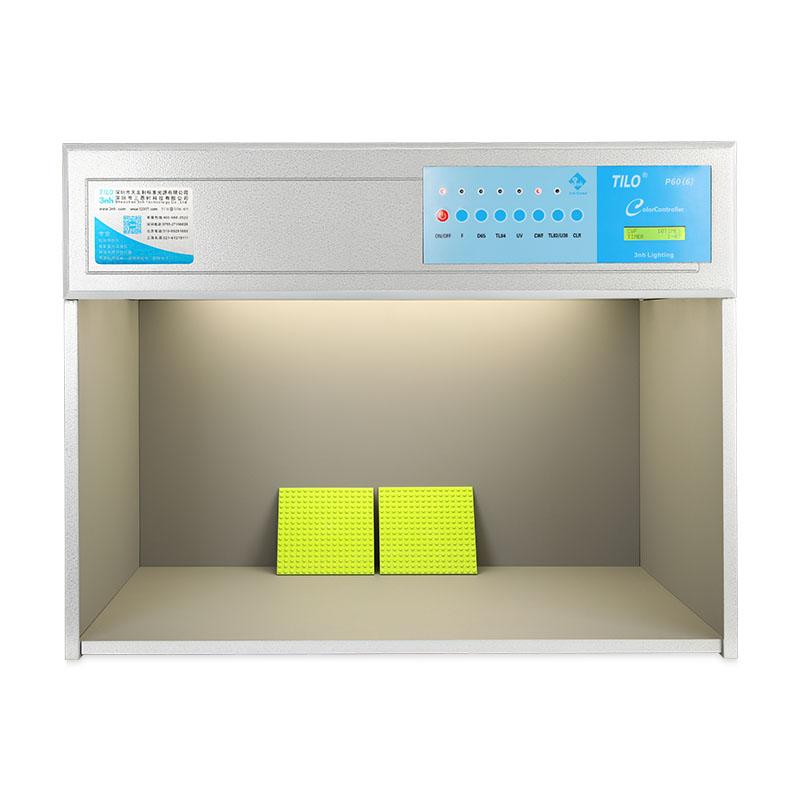

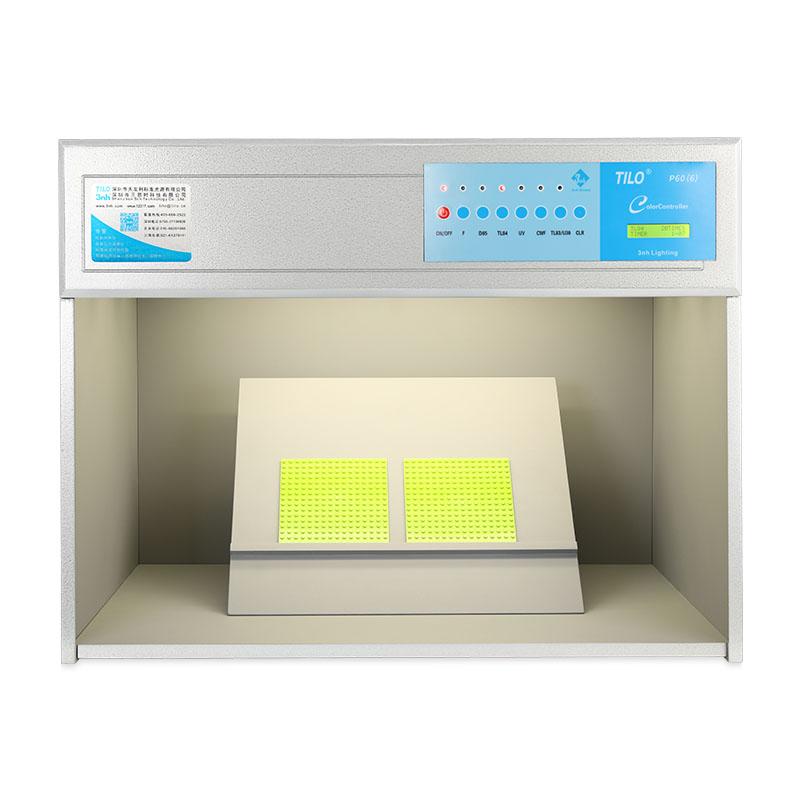

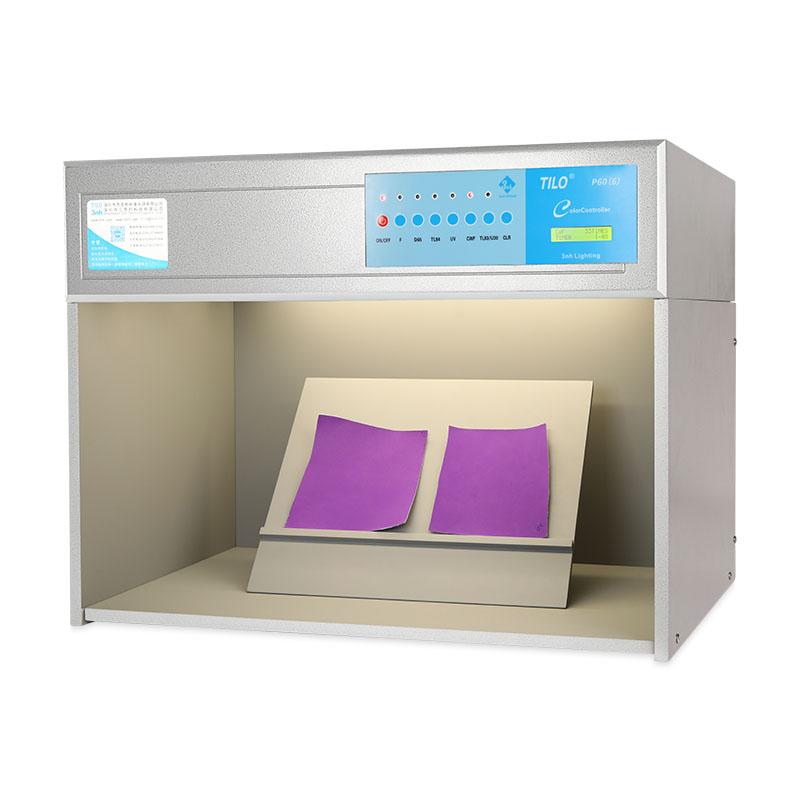

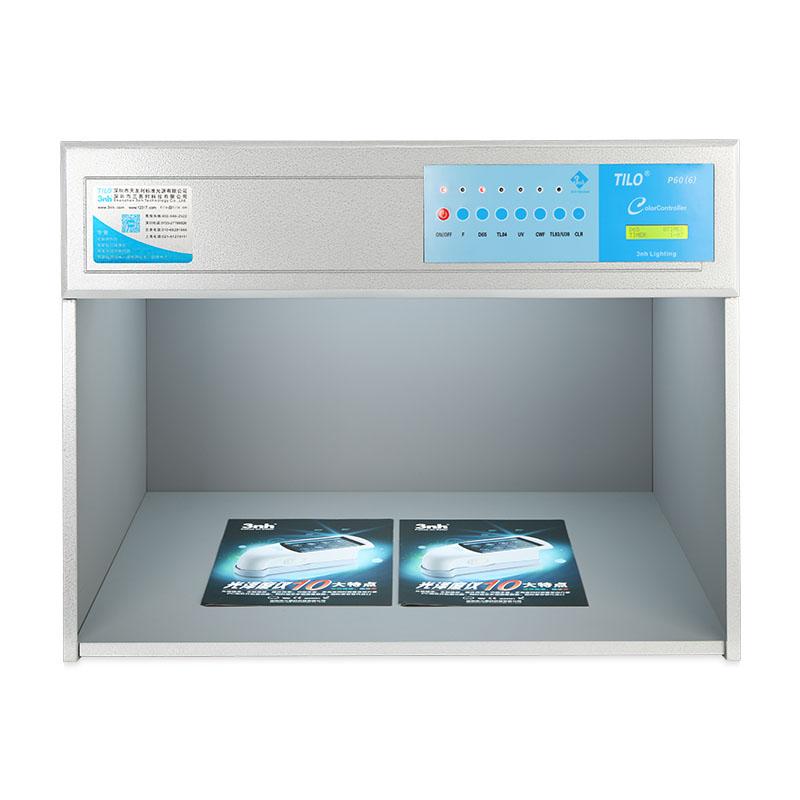

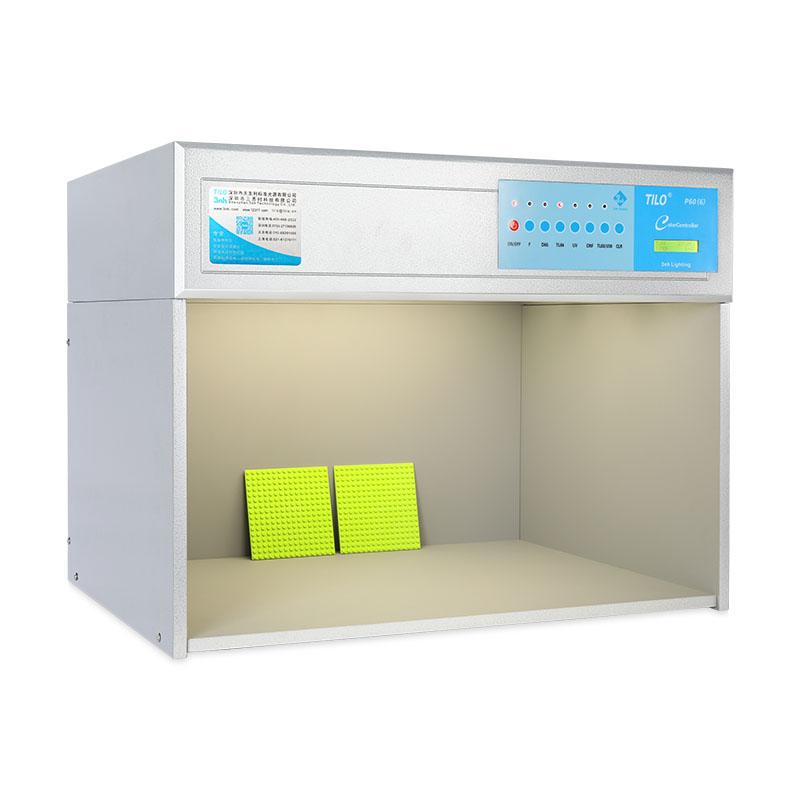

TILO P60 (6) Color Assessment Cabinet is a six Illuminant Color Assessment Cabinet, equipped with six Illuminants D65, TL84, CWF, F, UV, U30, weight 35Kg, volume 710x530x570mm. The product is easy to operate, does not require preheating, does not flash, detects quickly, and can provide accurate Color comparison. It is suitable for Coating, inks, Spinning & Weaving, plastics and other fields.
Features
1. Configure six kinds of Illuminants: D65, TL84, CWF, F, UV, U30 to meet the needs of different Color comparison.
2. Display the usage time, name and number of switches of each Illuminant.
3. With Illuminant automatic switching and Metamerism function.
4. No need to preheat, easy to use; no flickering, stable and reliable; fast detection to ensure reliable evaluation of Color.
5. Illuminant cold design, low energy consumption, no heat, no heat dissipation, high luminous efficiency.
6. Equipped with British and American standard commonly used Illuminants to meet the needs of different engineers.
7. Illuminant name can be changed, adding Illuminant is more convenient, and can be set according to needs.
Principle
The Color Assessment Cabinet provides a stable, flicker-free lighting environment under cold Illuminant technology with six standard light sources (D65, TL84, CWF, F, UV, U30) for accurate Color alignment. Illuminant auto-switching allows users to quickly select different Illuminants, while Metamerism helps identify changes in Color under different lighting conditions.
Applications
Coatings, inks, Spinning & weaving, Plastic
Standards
D65 international standard artificial daylight, TL84 European, Japanese, Chinese store Illuminant, CWF American cold white store Illuminant, F family hotel lamp Colorimetric reference Illuminant, UV light source, U30 American warm white store Illuminant
Steps
1. Turn on the light box power.
2. Select the desired Illuminant (such as D65, TL84, etc.) for automatic switching.
3. Place the item to be tested in the light box or on the optional 45-degree standard stand.
4. Observe Color Comparison Results and Record Illuminant Use Information.
5. Turn off the power after use.
Notice
• Power supply voltage matching (220V/50Hz or 110V/60Hz).
• Optional accessories 45-degree standard stands need to be customized according to the light box model.
• Avoid use in high temperature or humid environments to keep the equipment stable.
• Regularly check the Illuminant status to ensure accurate display of usage time and switching times.
