Overview

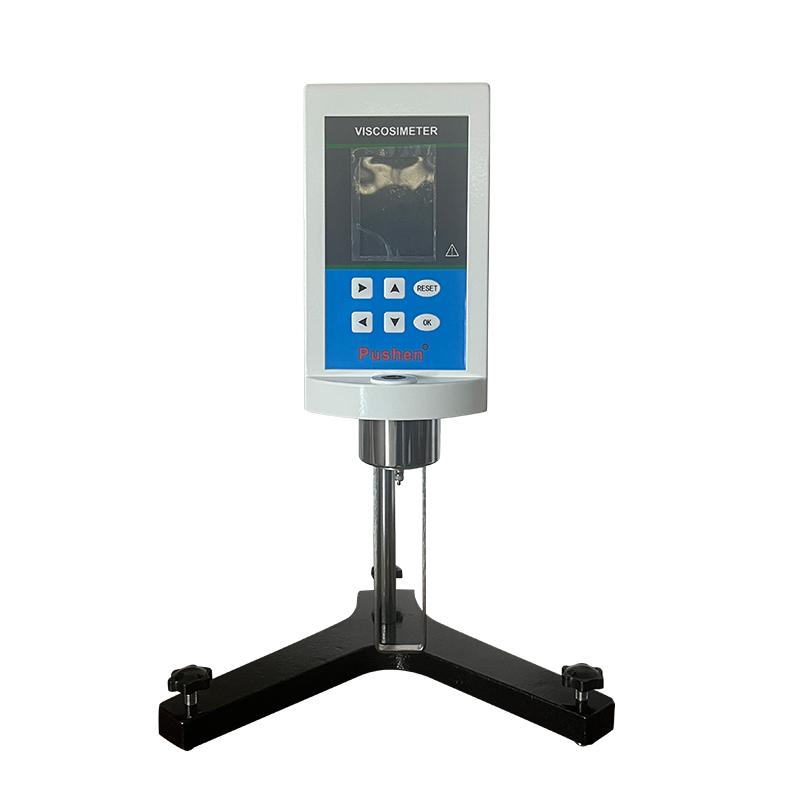

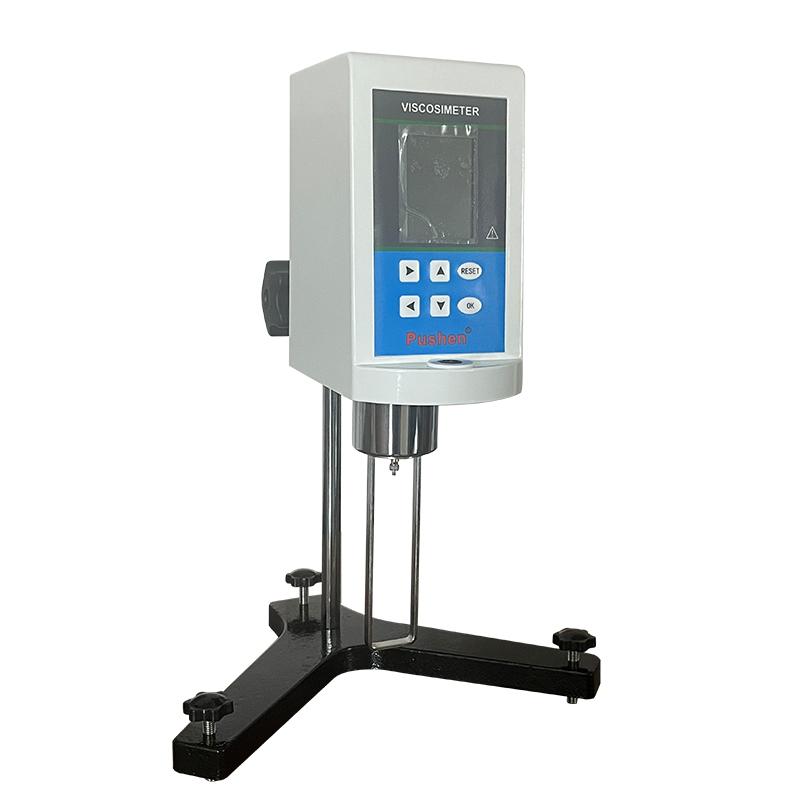

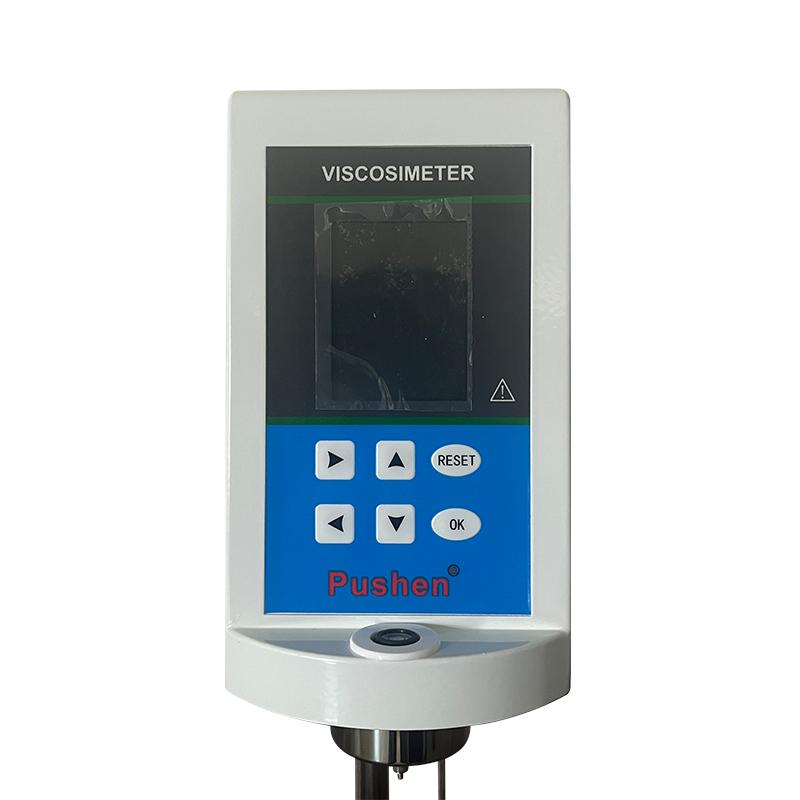

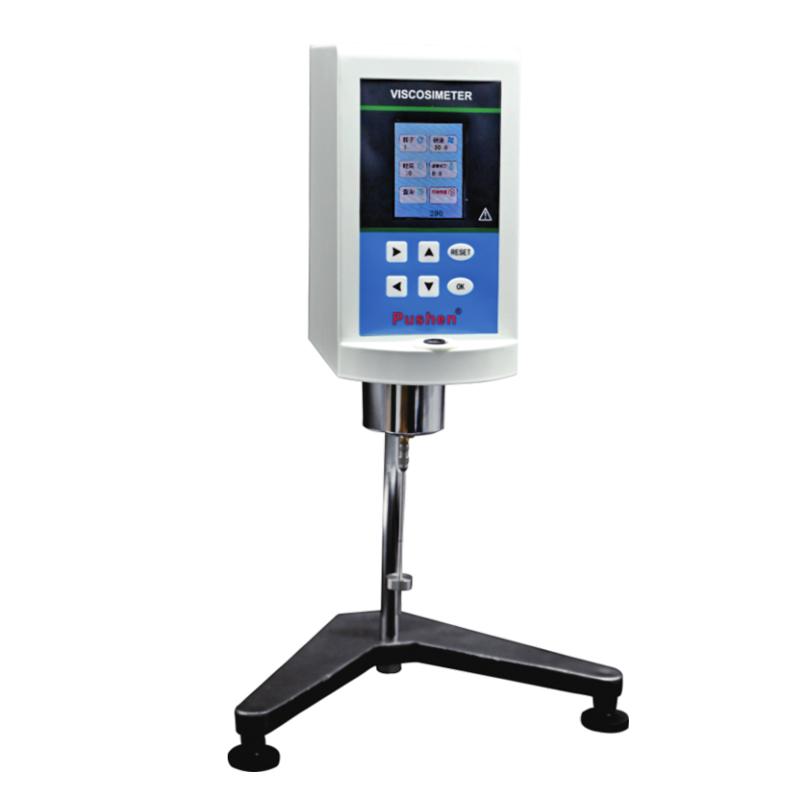

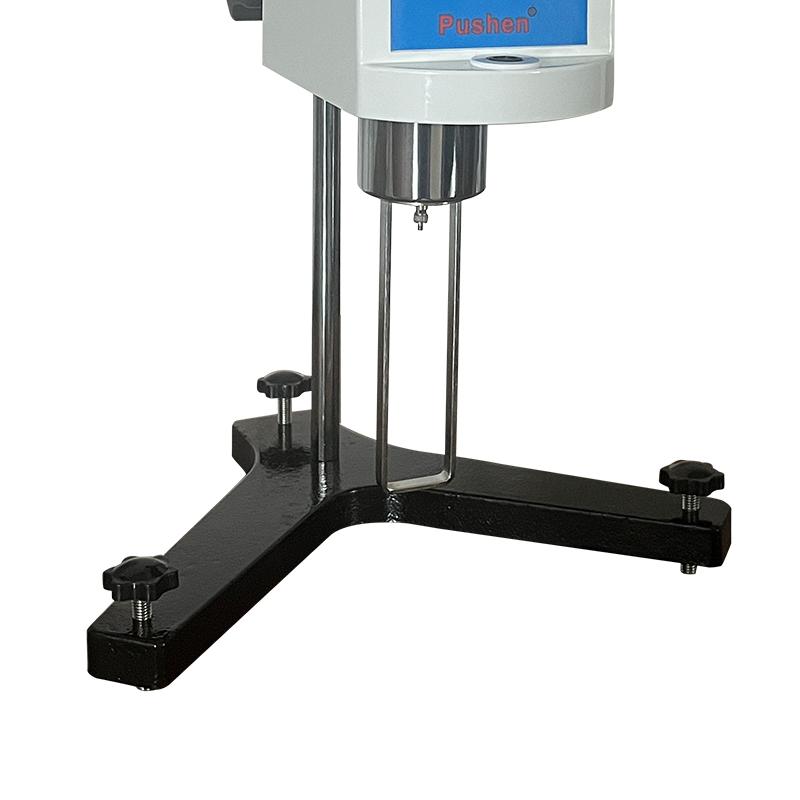

NDJ-5 (8) SB swirl/spin digital display Viscometer is an intelligent instrument under the PUSHEN brand, controlled by a single chip microcomputer, with data collection, processing and Chinese character display functions. The instrument can be widely used to determine the viscosity of solvent Adhesive, emulsion, biochemical products, paints, Coatings, cosmetics, inks, Pulp, starch, food and other samples.
Features
1. Easy operation, Rotation speed stability, Measurement accuracy
2. Operating voltage range
3. With automatic search function, it is possible to search for the appropriate rotor and Rotation speed required for measurement of unknown samples
4. Single chip control, with data collection, processing and Chinese character display function
5. reproducibility ： +/- 1% F.S, Measurement accuracy ： +/- 5% F.S
Principle
The instrument controls the stepper motor to run accurately and smoothly according to the set Rotation speed, and drives the rotor to rotate through the hairspring. When the rotor is not subject to resistance, the rotor and the motor swirl/spin synchronously; when the rotor is subject to the measured liquid resistance, the rotor swirl/spin lags behind the motor. When the hairspring tension and the liquid resistance reach equilibrate, the rotor lags behind the motor's opening angle and is fixed. Through the measurement of the opening angle, according to the set Rotation speed and rotor, the instrument calculates the measured liquid viscosity and displays it on the LCD screen.
Applications
Solvent Adhesives, Emulsions, Biochemical Products, paints, Coatings, Cosmetics, inks, Pulp, Starch, Food
Steps
1. Choose the right rotor and Rotation speed combination
2. Immerse the rotor in the tested liquid
3. Start the instrument for measurement
4. Read the viscosity value displayed on the LCD screen
Notice
• Please refer to the viscosity range table corresponding to the combination of rotor and Rotation speed to select the appropriate Measurement parameters
• Power supply voltage 220V AC 50Hz
• The instrument weight is 8kg, please pay attention to safety when handling
• Make sure the rotor is clean and free of contamination before measurement
