Overview

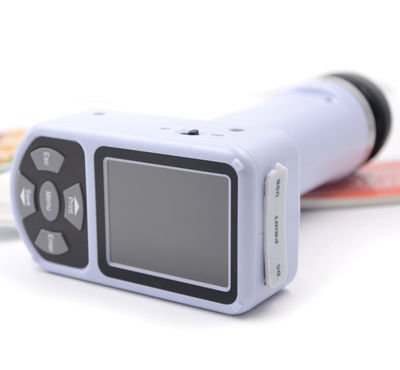

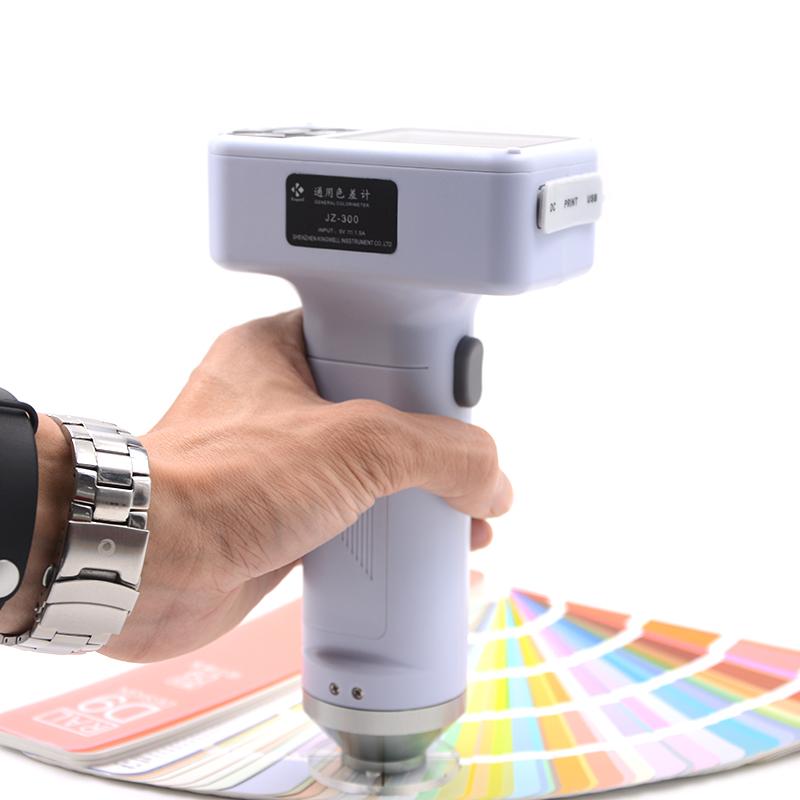

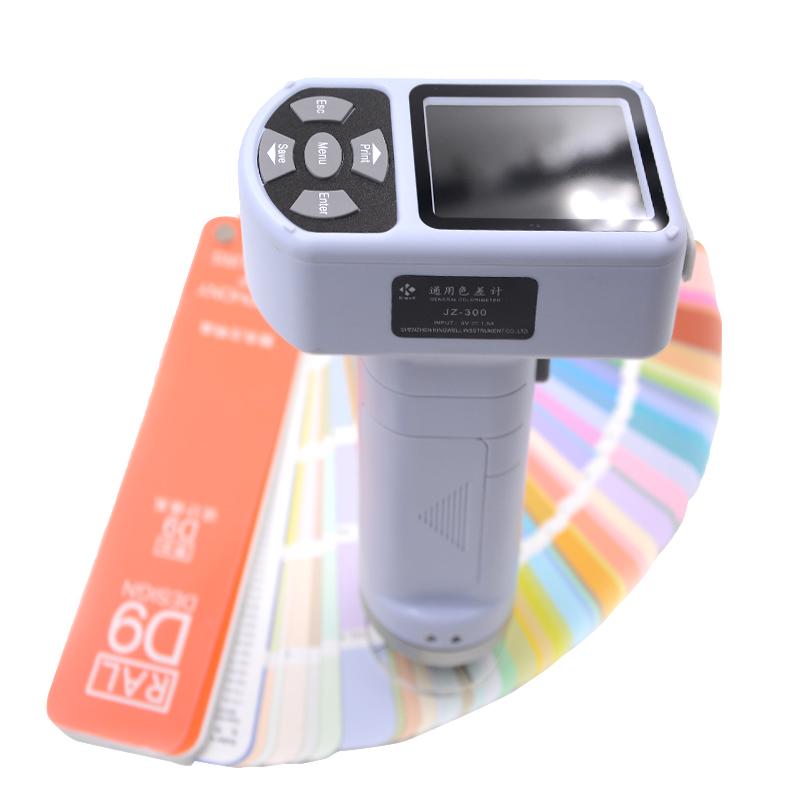

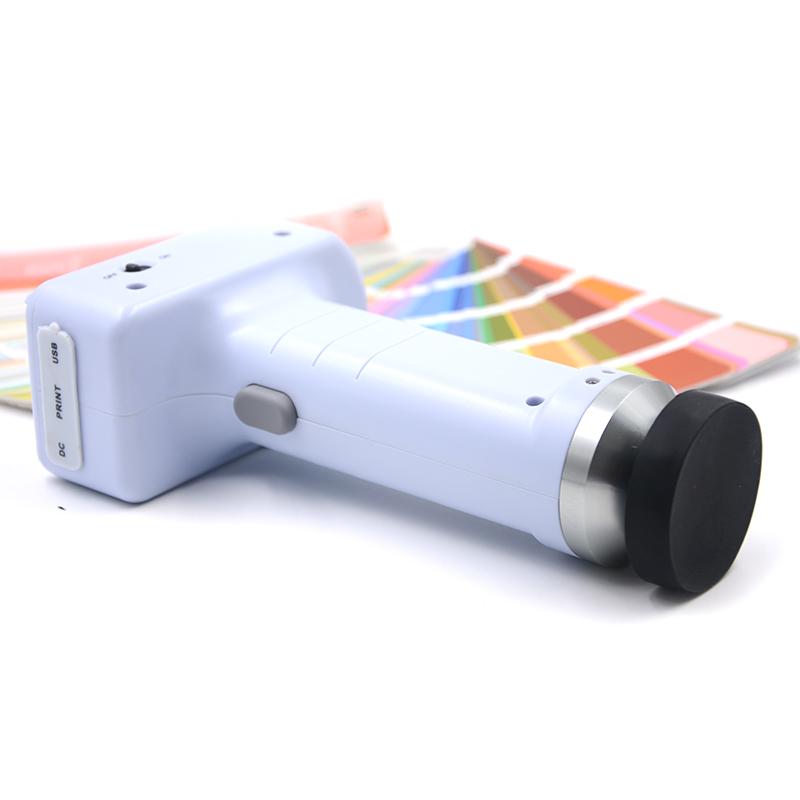

KINGWELL JZ-300 universal color difference meter is an economical and practical Handheld color difference meter, developed and designed in strict accordance with international CIE1931, 1976 and other relevant standards and relevant national standards. Using light purple shell, T-shaped structure, large LCD screen, small size and easy to carry. Using 45/0 illumination light receiving system, measurement diameter is 8mm, with single and average two Measurement modes, measurement is fast and simple. Using imported LED Illuminant and Sensor, it has the characteristics of stability, durability and economy.
Features
1. Menu display, simple and easy to understand operation, affordable and cost-effective
2. Color space has two modes of Lab and Lch, which can be freely switched for measurement
3. Clear color difference measurement interface, user-friendly automatic identification of color differences and biases
4. Practical average mode, surface color uneven surface can also be measured
5. Color quality software can analyze and communicate color charts and data
6. External micro printer can instantly output color difference data
Principle
The JZ-300 universal color difference meter uses a 45/0 illumination light receiving system to analyze the color difference between the measurement sample and the standard. The color difference calculation formula is: Delta E *= [ (Delta L *) 2 + (Delta a *) 2 + (Delta b *) 2] 1/2, where Delta L * represents the luminance difference (+ white, - dark), Delta a * represents the red-green color difference (+ reddish, - green), and Delta b * represents the yellow-blue color difference (+ yellowish, - bluish).
Applications
Plastic, lame plating, design, printing, clothing, printing and dyeing, injection molding color scheme, printing color difference detection, painting, Eletroplating, metal processing, outdoor color difference quality inspection of bulk products, online monitoring of product color difference during production
Standards
CIE1931、CIE1974、GB/T 5698-2001、GB/T3978-1994
Steps
1. Turn on the device power supply
2. Select Measurement mode (Single or Average)
3. Select Color space mode (Lab or Lch)
4. Align the measurement aperture to the tested sample
5. Carry out measurements
6. View measurement results
7. Data can be output through an external micro printer
Notice
• Operating Ambient Temperature 0 to 40 ° C (32 to 104 ° F) with relative humidity below 85%
• Storage Ambient Temperature 10-30 ℃, relative humidity below 70%

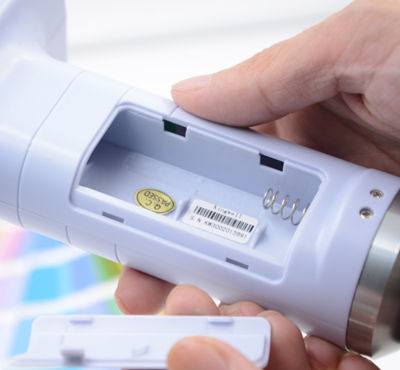

• Powered by 4 AA batteries or a dedicated AC adapter

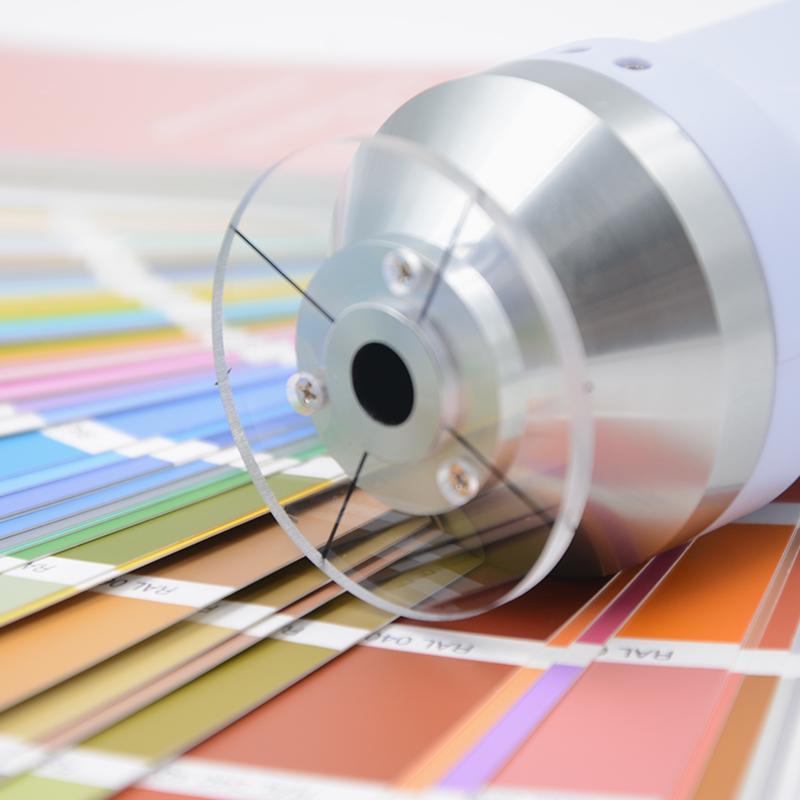

• The measurement diameter is φ 8mm to ensure that the measurement area meets the requirements
Measurement time of about 2 seconds to keep the device stable
• Repeatability Standard Deviation ≤ E * within 0.1
