Overview
Putty applicator is designed and manufactured according to the coating and scraping method in GB1727-89 "General Preparative Method of Lacquer Film". This product is suitable for preparing putty film and thick paint film uniformly on various substrates (tinplate, steel plate, Aluminum Panel) for measuring the general performance of the film.
Features
1. Made of stainless steel, strong durability

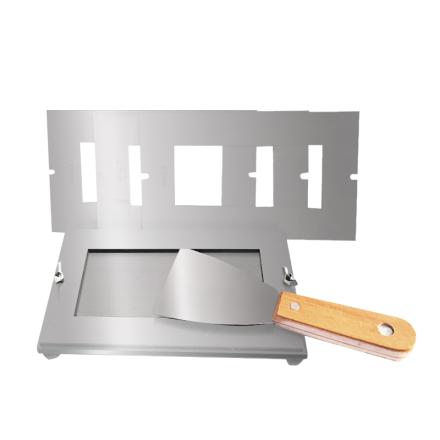

2. Three standard film plate thicknesses (0.5mm, 0.7mm, 1.0mm) are available for selection and combination
3. Moulding size is 145 × 60mm, drawdown blade inner frame is 150 × 70mm
4. Compact, Dimension 280 × 130 × 25mm

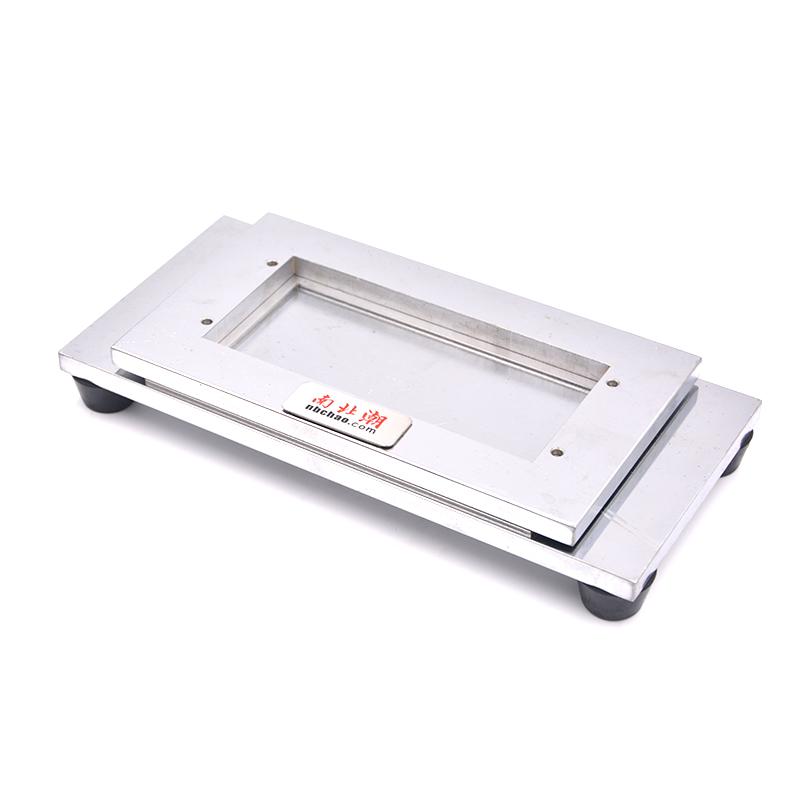

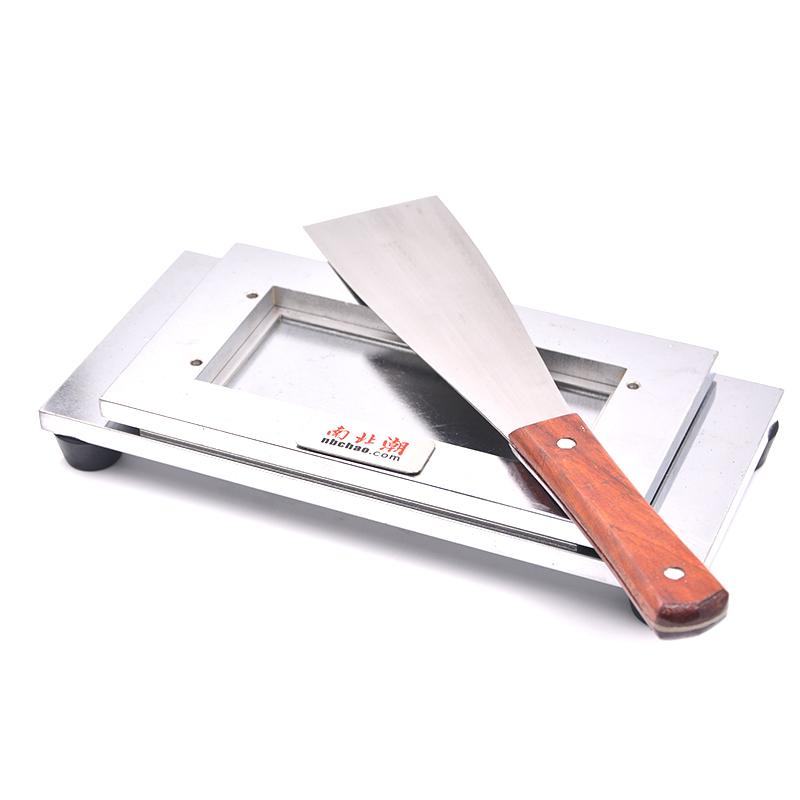

5. Equipped with baseplate, platen, membrane frame and drawdown blade complete components
Principle
After fixing the standard film frame with a pressing plate on the baseplate, use a drawdown blade to press and scrape hard from top to bottom to form a uniform putty film thickness under the thickness of the film plate. The standard film plate of the putty sprayer has three different thicknesses (1 +/- 0.05, 0.7 +/- 0.035, 0.5 +/- 0.03) mm According to the product standard requirements, the putty thickness can be selected and combined. Due to the different solid compositions in the Coating, when the wet-film becomes Dry-Film, the dry-film thickness formed is also different, so this should be fully considered when choosing to use the standard thickness film frame.
Applications
Putty film preparatory, thick paint film preparatory, film performance measurement
Standards
GB1727-89 "General preparatory method for paint film"
Steps
1. Place a standard film frame on the baseplate
2. Secure the membrane frame with a pressing plate
3. Scrape with drawdown blade from top to bottom
4. Form uniform putty under the film thickness
Notice
• Due to the different solid compositions in Coating, when wet-film becomes Dry-Film, the dry-film thickness formed is also different. This should be fully considered when choosing to use a standard thickness film frame
• Select the appropriate film thickness according to the product standard requirements
• When using, make sure that the pressing plate is firmly fixed to the membrane frame
