Overview

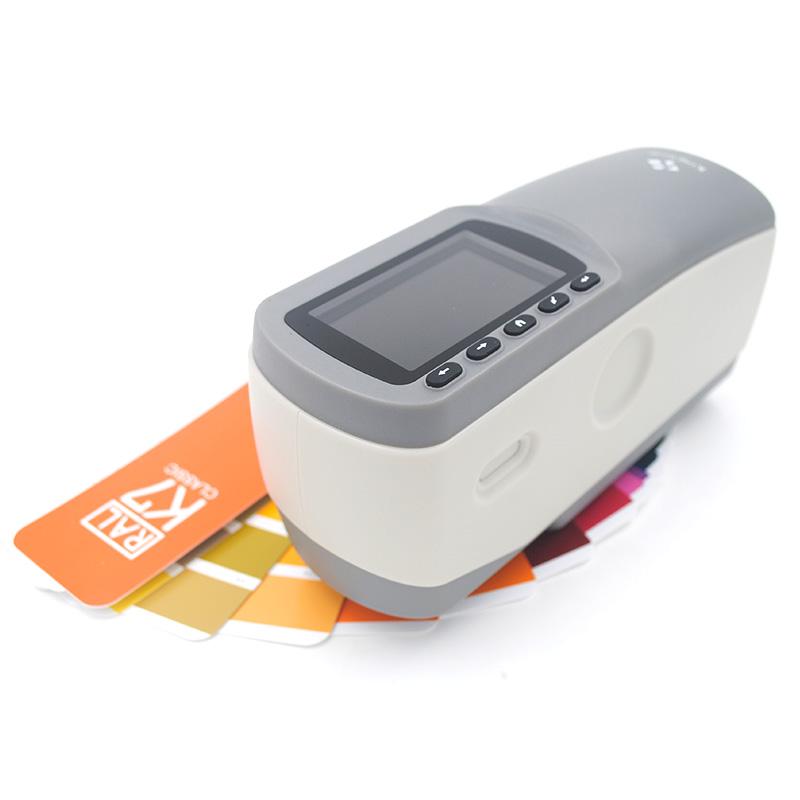

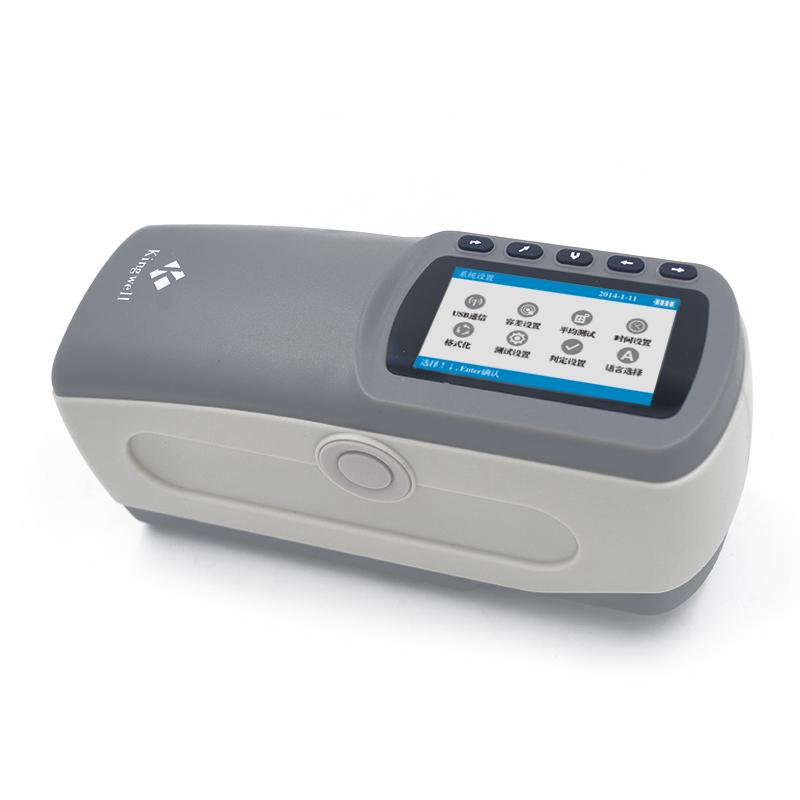

KINGWELL JZ-600 high-precision color difference meter is a high-precision computer color difference meter developed and designed according to a variety of domestic and foreign standards. It adopts high-quality Sensor and Illuminant parts imported from Germany, and the performance is stable and reliable. The instrument adopts Benchtop structure, integrating ball coating has good durability, and is suitable for color scheme analysis and color quality control in the plastic industry. With long life, cheap maintenance and stable performance, it is a powerful tool for color quality control, research and production personnel.
Features
1. Professionally designed streamlined Appearance, in line with human mechanics requirements, easy to operate high-end
2. Features novel size aperture measurement switch, making different measurement aperture data more superior
3. Implement international color standards to meet customer color data exchanges in different industries
4. Small aperture design can measure narrow surfaces and curved surfaces, solving the problem that China color difference meter cannot measure special-shaped surfaces
5. Large capacity 3200mAh lithium battery, safe and convenient to use, to meet long-term measurement requirements
6. Adopt German High Sensitivity Sensor and Illuminant, with more than 96% high diffusion coating integrating sphere structure, superior measurement data
7. Auxiliary accessories can be used for measurement of large textured items, powders and slurry objects

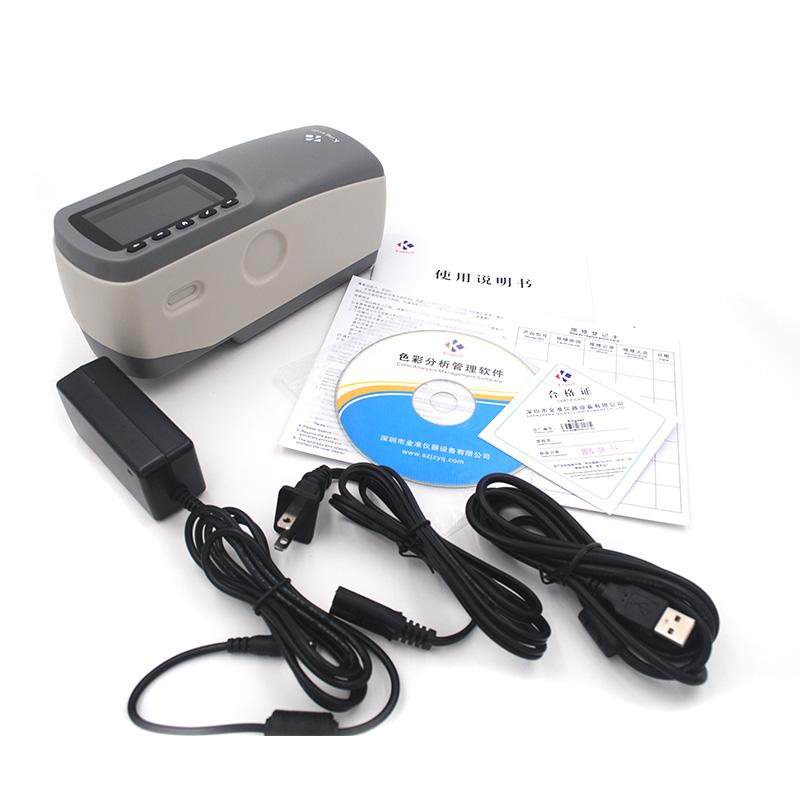

8. Standard computer software for detailed color data exchange
Principle
The KINGWELL JZ-600 high-precision color difference meter uses an 8 °/d Optical inspection geometry with SCI and SCE simultaneous test modes to capture color data through a silicon photodiode array Sensor system. The instrument utilizes a high-diffuse coating integrating sphere and a variety of standard Available Light Sources (D65, D50, C, F11, etc.), at a CIE 2 °/10 ° viewing angle, through chroma space (L * a * b, L * c * h, Yxy, RGB) and Color difference formula (Delta E * ab, Delta E * ch) for accurate color analysis and comparison.
Applications
Curved, Paste, Powder, Spinning & weaving, Plastic, Hardware, lame plating, printing
Standards
International color standard
Steps

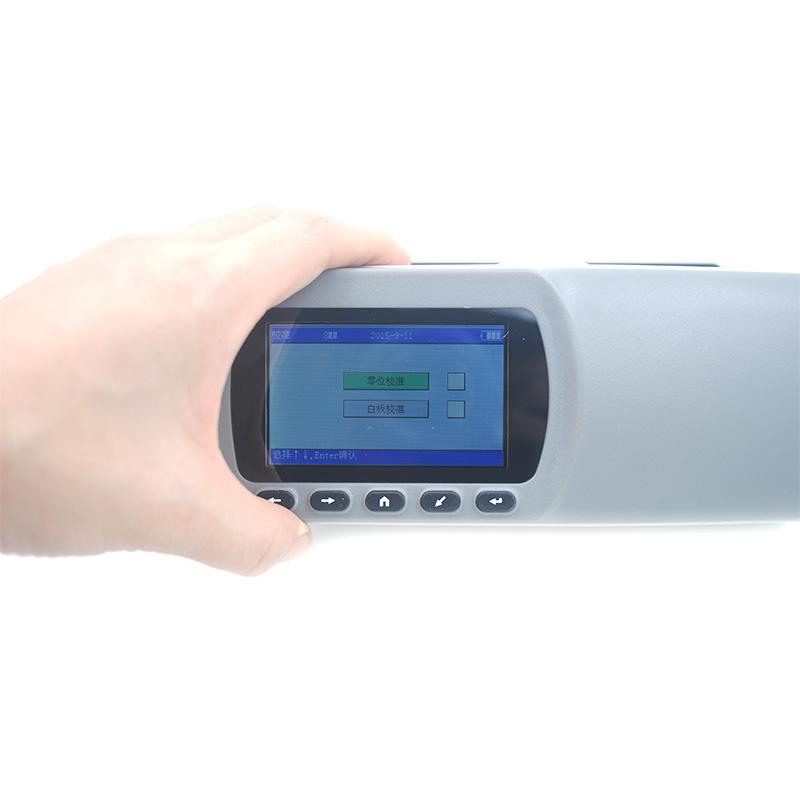

1. Use a black and white correction board for instrument calibration
2. Select the appropriate measurement aperture (φ 8mm)
3. Align the instrument to the surface of the sample to be tested
4. Press the measurement button to get the color data
5. Connect to the computer via USB interface and use standard software for Data analysis
6. View the color difference value, chromatic value, color space diagram and other display results
7. Conduct pass/fail determination and color scheme analysis
Notice
• Operating Ambient Temperature should be kept at 0-40 ℃, relative humidity below 80%, no frost
Storage Ambient Temperature should be kept at 10-30 ℃, relative humidity below 70%
• Regularly calibrate instruments using standard black and white calibration plates
• Ensure that the sample surface is clean and free of contamination before measurement
• Powered by a dedicated 3200mAh lithium battery or AC adapter
• Avoid severe vibration or impact on the instrument
• When not in use for a long time, it should be properly stored in a drying environment
