Overview

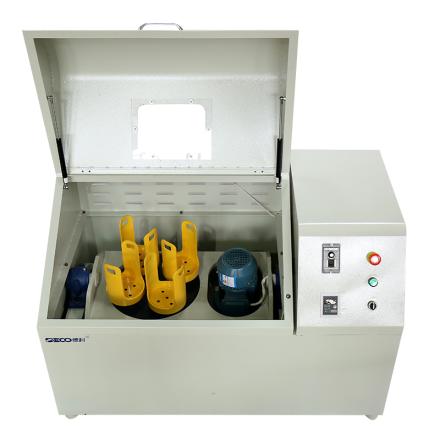

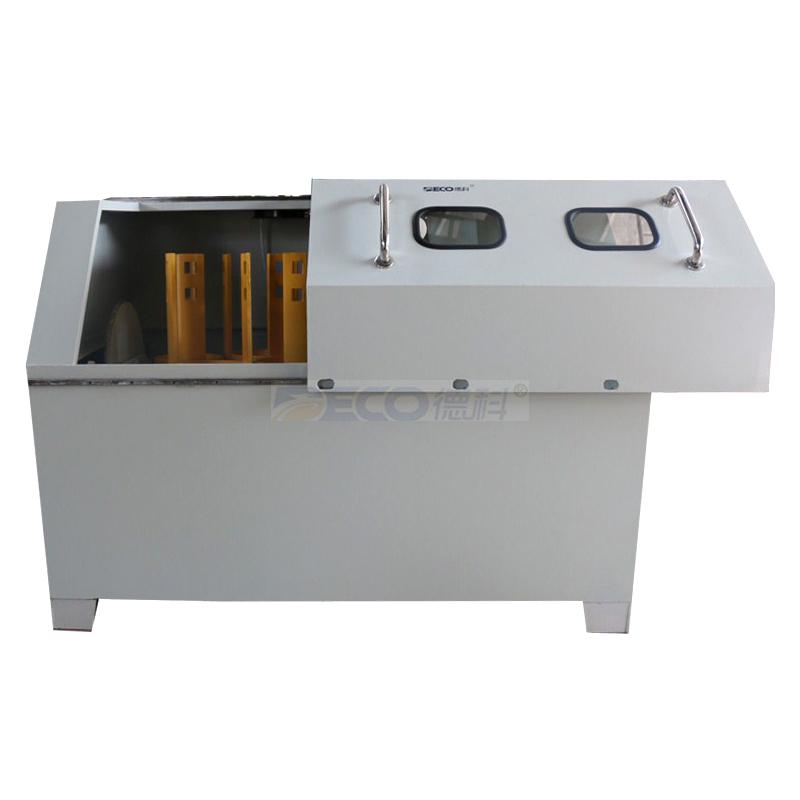

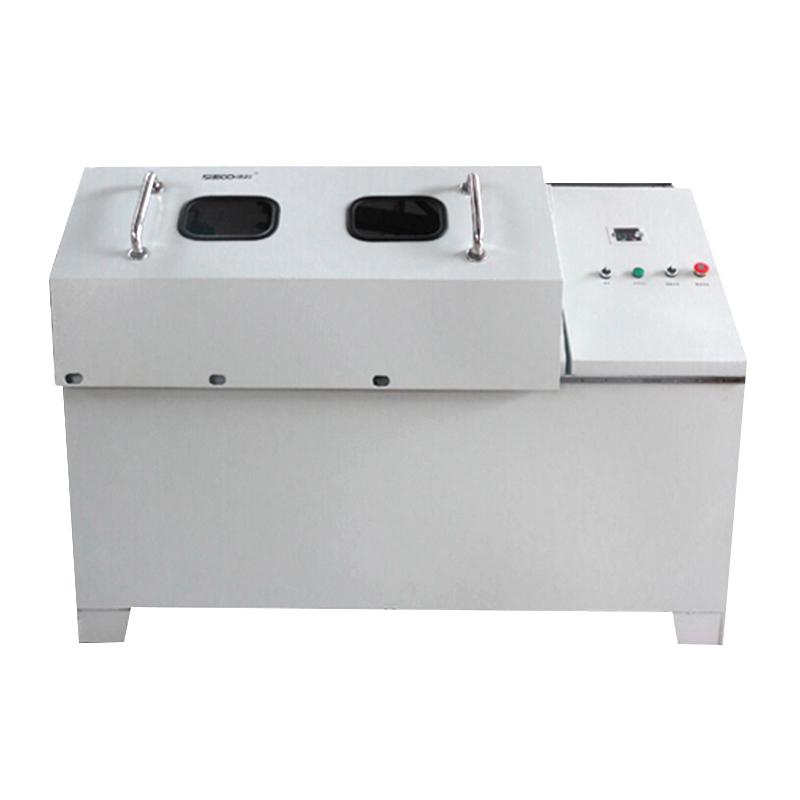

DECO-PBM-AD-20L Comprehensive Planetary Ball mill is a production batch grinding equipment produced by DECO, which has the characteristics of large Processing capacity, uniform discharge, safe and simple use, and diverse grinding materials.
Features
1. Strong, fast, comprehensive grinding, can achieve High Accuracy and highly consistent discharge effect
2. Fine grinding, no pollution, a wide range of materials suitable for grinding
3. Rotation speed, time and other ground data control can ensure the sample ground Repeatability and conformity
4. It can control the rolling speed of the planetary disk and improve the effect of grinding
5. Configure a variety of ball milling tanks of different materials to grind at the same time to improve the diversity of grinding samples
6. Support dry grinding, wet grinding, vacuum/pressurized grinding, inert gas grinding a variety of grinding methods
7. The ground room and control room are equipped with highly ventilated heat dissipation
8. Control system with strong controllability, convenient parameter setting, diverse functions, intuitive digital display, simple operation, one-piece operation and safe use
9. Power-off protection function, automatic storage of ground data
10. Standardized production process, exquisite craftsmanship, exquisite material selection, environmentally friendly and energy-saving, with a good service life
11. Ball mill and ball mill are easy to use
12. Maintenance and overhaul are simple and convenient
Principle

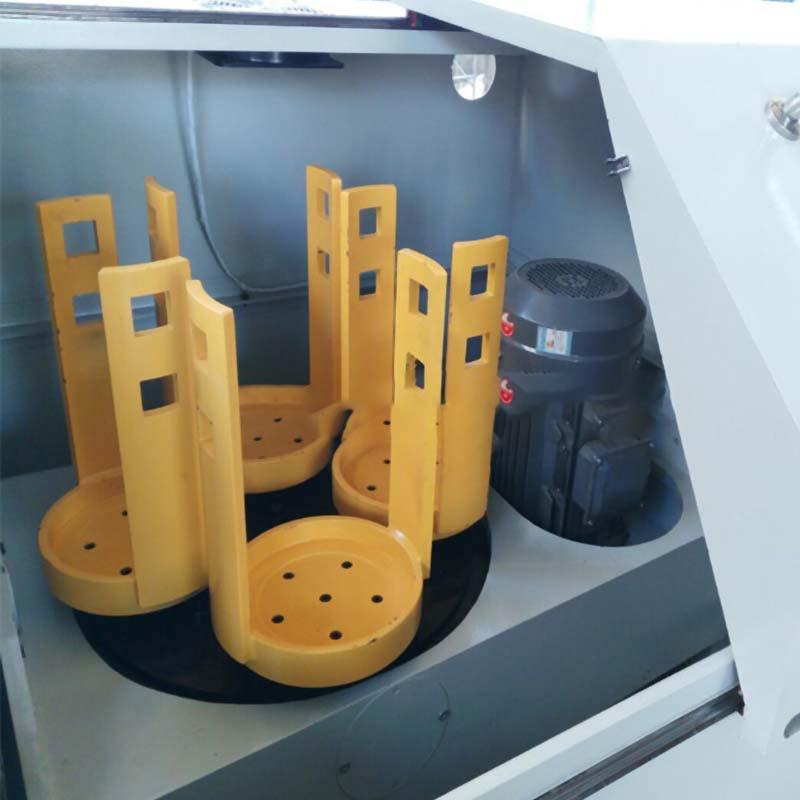

In the planetary Ball mill, the four ball mill cans placed on the planetary disk in the planetary disk high-speed swirl/spin under its own reverse high-speed swirl/spin, at the same time, the planetary disk and the ball mill as a whole under the power of the motor for 360 ° tumbling, in this direction of non-stop change process, more intense and uniform friction between the material and the ground ball, impact energy, this energy makes the ball mill tank material to be fully pulverized, mixed, homogenized.
Applications
Pharmaceuticals, Food, Chemicals, Synthetic Materials, Electronics, Engineering, Metallurgy, Glass, Ceramics, Biology
Steps
1. Set parameters such as grinding time, pause time, and intermittent operation time
2. Select the function mode: run, pause, reverse operation, alternating positive and negative operation, intermittent operation, adjustable speed tumbling, adjustable speed swirl/spin
3. Start the equipment for ground operation
Notice
• The maximum feed size should be less than 2mm
• Power supply voltage is 380V three-phase AC
• Equipment Protection Rating is IP53 and needs to be used in the corresponding environment
• Regular maintenance
• Please read the instructions carefully before use
