Overview

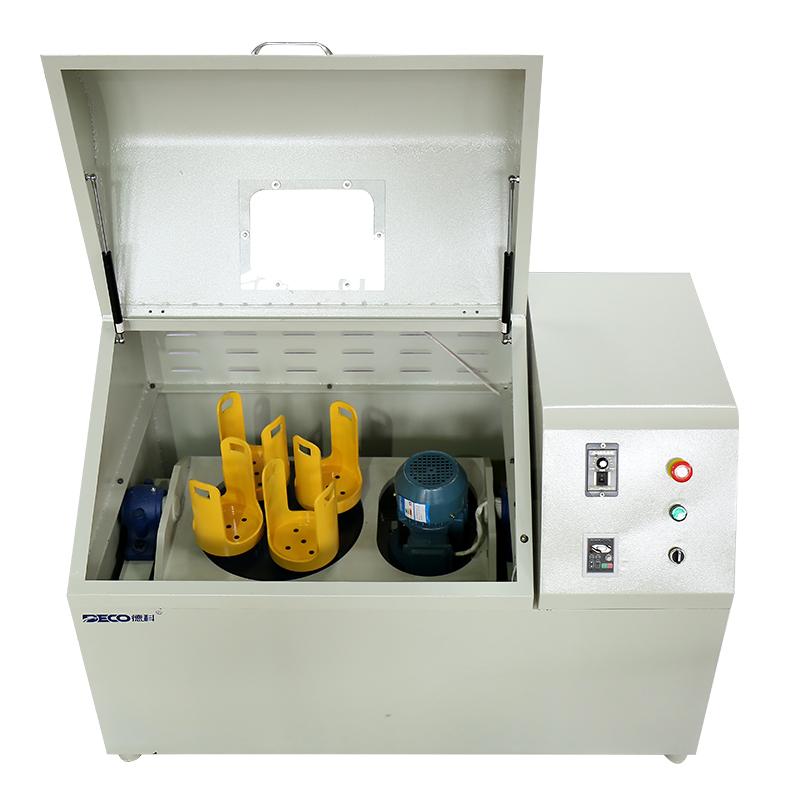

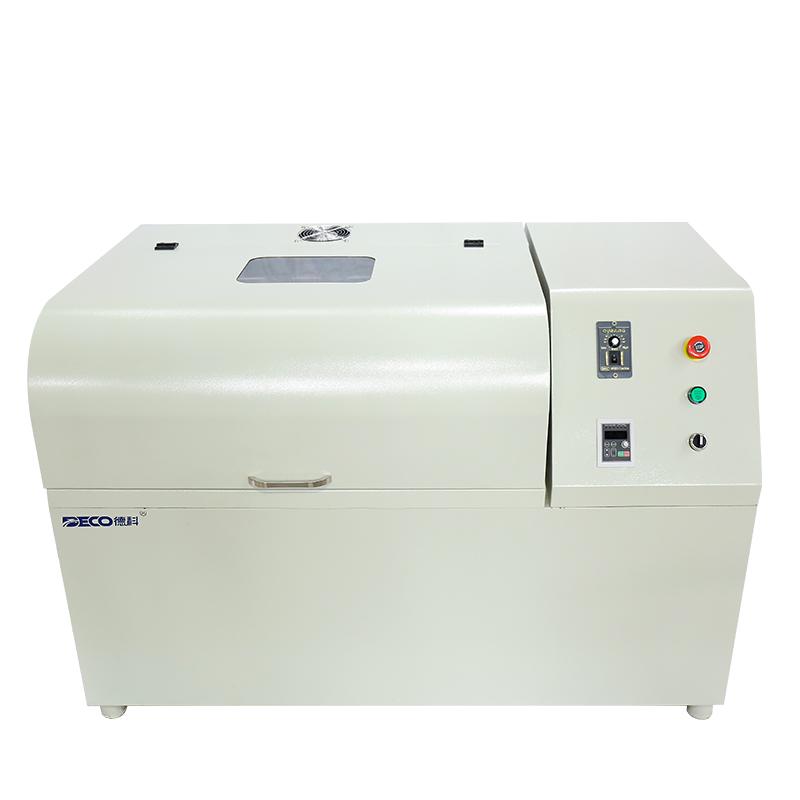

DECO-PBM-AD-0.4L omni-directional planetary Ball mill is a laboratory powder system sample equipment produced by DECO, which can make the material achieve ultra-effective three-dimensional full grinding, and can be used for sample crushing, mixing and homogenization processes. The equipment combines the characteristics of vertical and horizontal planetary Ball mills, and forms a better crushing effect and greatly improves the discharge uniformity through the 360 ° rolling form of the planetary disc and the ball mill tank as a whole.
Features
1. Strong, fast, comprehensive grinding, can achieve High Accuracy and highly consistent discharge effect
2. Fine grinding, no pollution, a wide range of materials suitable for grinding
3. Rotation speed, time and other ground data control can ensure the sample ground Repeatability and conformity
4. It can control the rolling speed of the planetary disk and improve the effect of grinding
5. Configure a variety of ball milling tanks of different materials to grind at the same time to improve the diversity of grinding samples
6. Support dry grinding, wet grinding, vacuum/pressurized grinding, inert gas grinding a variety of grinding methods
7. The ground room and control room are equipped with highly ventilated heat dissipation

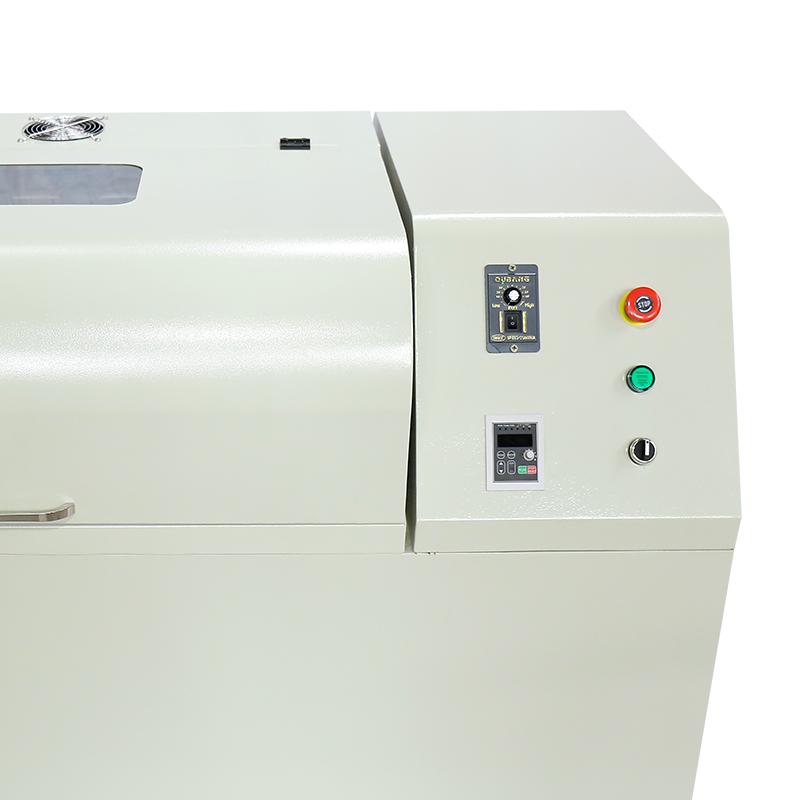

8. Control system with strong controllability, convenient parameter setting, diverse functions, intuitive digital display, simple operation, one-piece operation and safe use
9. Power-off protection function, automatic storage of ground data
10. Standardized production process, exquisite craftsmanship, exquisite material selection, environmentally friendly and energy-saving, with a good service life
11. Ball mill and ball mill are easy to use
12. Simple methods of maintenance and overhaul
Principle

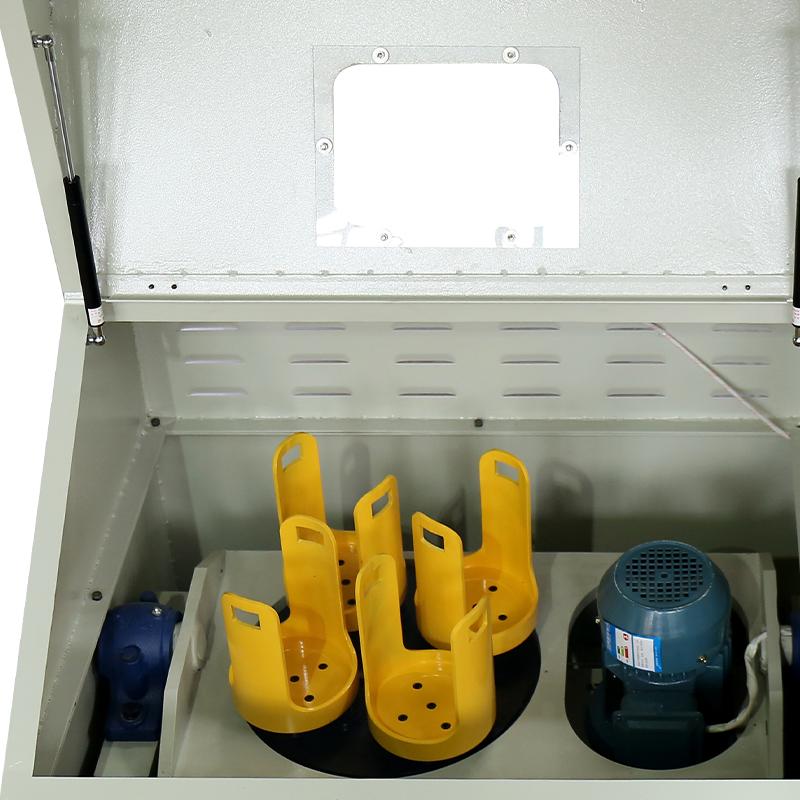

In the planetary ball mill, the four ball mill tanks placed on the planetary disk also perform reverse high-speed swirl/spin under the high-speed swirl/spin of the planetary disk, and the planetary disk and the ball mill tank as a whole are rolled 360 ° under the power of the motor. In the process of continuous change of orientation, more intense and uniform friction and impact energy are generated between the material and the ground ball, so that the material in the ball mill tank can be fully crushed, mixed and homogenized.
Applications
Pharmaceuticals, Food, Chemicals, Synthetic Materials, Electronics, Engineering, Metallurgy, Glass, Ceramics, Biology
Steps
1. Select the appropriate ball mill material and grinding ball according to the sample characteristics
2. Set parameters such as grinding time and intermittent time
3. Select the appropriate ground mode (run, pause, reverse operation, alternating positive and negative operation, intermittent operation, etc.)
4. Start the equipment for grinding
5. Remove the sample after the grinding is completed
Notice
• The maximum feed size should be less than 2mm
• Select the appropriate grinding method and parameters according to the sample characteristics
• Make sure the power supply of the device is connected correctly before operation
• Regular equipment maintenance
• Pay attention to safety protection during use
