Overview

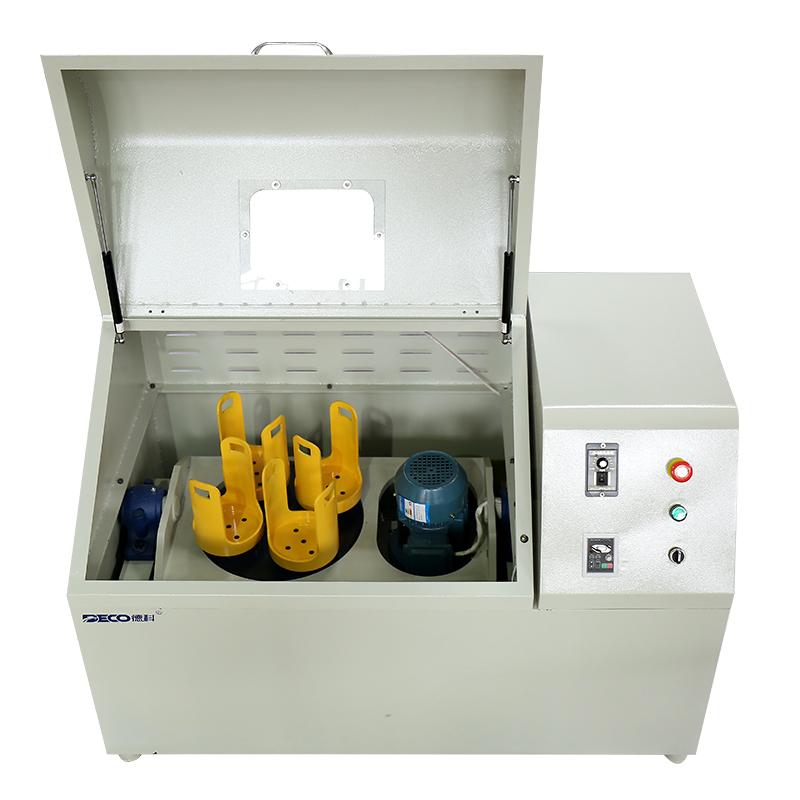

DECO-PBM-AD-2L omnidirectional planetary Ball mill is a laboratory powder system sample equipment produced by DECO, which can make the material achieve ultra-effective three-dimensional full grinding, and can be used for sample crushing, mixing and homogenization processes. The equipment combines the characteristics of vertical and horizontal planetary Ball mills. Through the 360 ° rolling form of the planetary disc and ball mill tank as a whole, better crushing effect and higher discharge uniformity are achieved, and efficiency and discharge mass are improved.
Features
1. Provide 2L, 4L, 6L three different grinding volume specifications;
2. Strong, fast and comprehensive grinding to achieve High Accuracy and highly consistent discharge effect;
3. Fine grinding, no pollution, a wide range of materials suitable for grinding;
4. Rotation speed, time and other ground data control to ensure the sample ground Repeatability and conformity;
5. It can control the rolling speed of the planetary disk and improve the grinding effect;
6. Configure a variety of ball milling tanks of different materials to grind at the same time to improve the diversity of grinding samples;
7. Support dry grinding, wet grinding, vacuum/pressurized grinding, inert gas grinding a variety of grinding methods;
8. The grinding room and control room are equipped with highly ventilated heat dissipation;
9. Control system can be controlled, convenient parameter setting, diverse functions, intuitive digital display, simple operation, one-piece operation and safe use;
10. Power-off protection function, automatic storage of ground data;
11. Standardized production process, exquisite craftsmanship, exquisite material selection, environmentally friendly and energy-saving, with a good service life;
12. Ball mill and ball mill tank use method is simple;
13. Maintenance and overhaul are simple and convenient.
Principle
In the planetary ball mill, the four ball mill tanks placed on the planetary disk perform reverse high-speed swirl/spin under the high-speed swirl/spin of the planetary disk, and the planetary disk and the ball mill tank as a whole are rolled 360 ° under the power of the motor. During this continuous change of orientation, more intense and uniform friction and impact energy are generated between the material and the ground ball, so that the material in the ball mill tank can be fully crushed, mixed and homogenized.
Applications
Pharmaceuticals, Food, Chemicals, Synthetic Materials, Electronics, Engineering, Metallurgy, Glass, Ceramics, Biology
Steps
1. Set parameters such as grinding time, pause time, and intermittent operation time;
2. Select the function mode (such as running, pausing, reverse running, alternating positive and negative running, intermittent running);
3. Adjust the planetary disk roll speed and ball mill tank swirl/spin speed;
4. Start the equipment for grinding;
5. Equipment runs automatically and stores data.
6. Remove the sample after the grinding is completed.
Notice
The maximum feed size should be less than 20mm.
• Power supply voltage in the range of 110-120V or 220-240V;
• Check whether the material of the ball mill tank and grinding ball is suitable for the sample before use;
• Pay attention to ventilating the equipment during operation;
• Regular maintenance;
• Follow the instructions for safe operation.
