Overview

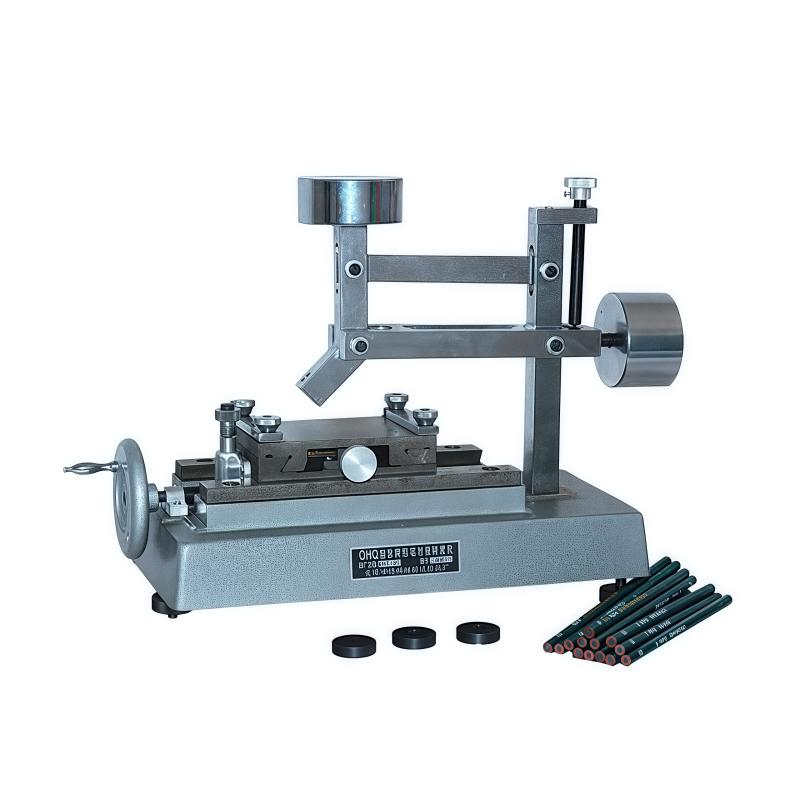

JINGKELIAN QHQ film pencil Scratch Hardness Tester is a hand-cranked Benchtop pencil Scratch Hardness Tester, suitable for measuring paint film Hardness by plowing the pencil Hardness level of the paint film. Its load value is 1000 +/- 1g, and the scratch speed is about 1mm/s.
Features
1. Hand-cranked Benchtop design, easy to operate
2. High load accuracy, 1000 +/- 1g
3. Stable scratch speed, about 1mm/s
4. Standard pencils have a wide range, covering 6B to 6H
5. The test angle is fixed at 45 ° to ensure conformity of the results
Principle
By applying a fixed load on the work rod and scratching the surface of the paint film with a pencil, the paint film Hardness is expressed by the pencil Hardness level of the paint film broken by ploughing. During the test, the pencil moves at a speed of about 1mm/s, and the Hardness level is determined according to the scratch result.
Applications
Film hardness testing
Standards
GB/T 6739-86、JIS K5401、ASTMD2197
Steps
1. Prepare test samples and standard pencils
2. Adjust the equipment to the test angle of 45 °
3. Install the pencil and apply a 1000g load
4. Hand crank operation makes the pencil scratch at a speed of about 1mm/s
5. Observe and record the Pencil Hardness Level of the Plow Broken Paint Film
6. Clean the equipment and reset it
Notice
• Ensure that the load is accurately 1000 +/- 1g
• calibrate scratch speed to about 1mm/s before testing
• Use standard pencils and replace them regularly
• Keep the test surface clean and flat
• Avoid damage to the equipment with excessive force during operation
