JINGKELIAN QSG Iron and Cobalt TintoMeter varnish Color Tester GB/T1722-92 Standard

Name: JINGKELIAN QSG Iron and Cobalt TintoMeter varnish Color Tester GB/T1722-92 Standard
Brand: JingKeLian
SKU: NB000644
Price: 135.0 USD
Availability: InStock

$ 135.00Ex works

Equipped with 18 standard color scale solution, prepared according to GB/T1722-92 standard, using an inner diaMeter of 10.75mm Glass testtube, Color comparison is carried out in the Color Assessment Cabinet to ensure accurate measurement results.

Model

Get Quote

Category : Colorimeter

Brand : JingKeLian

SKU : NB000644

Service :The delivery and service By NBCLab.Com

Overview

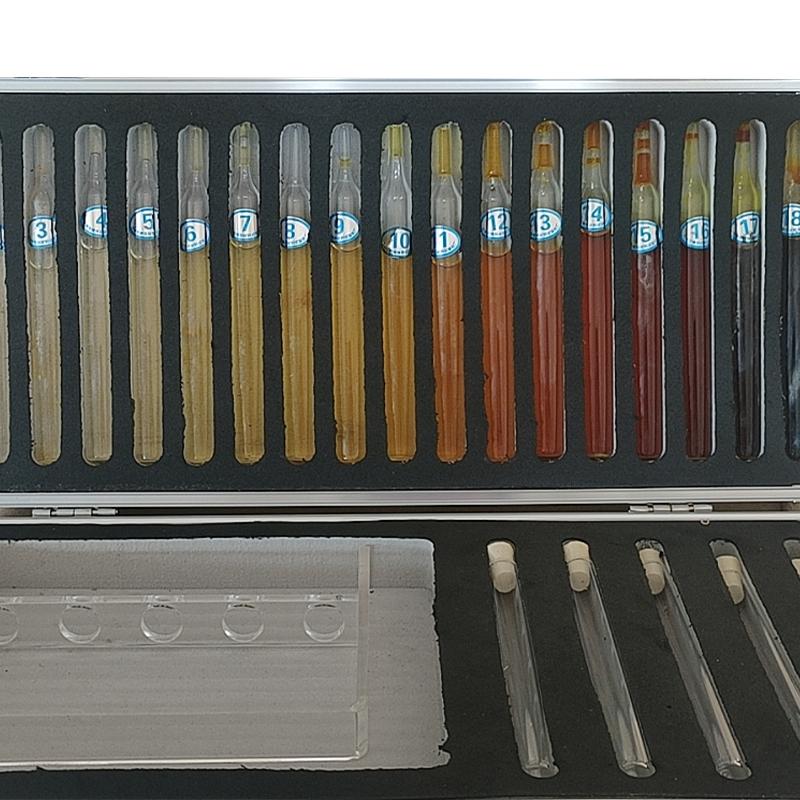

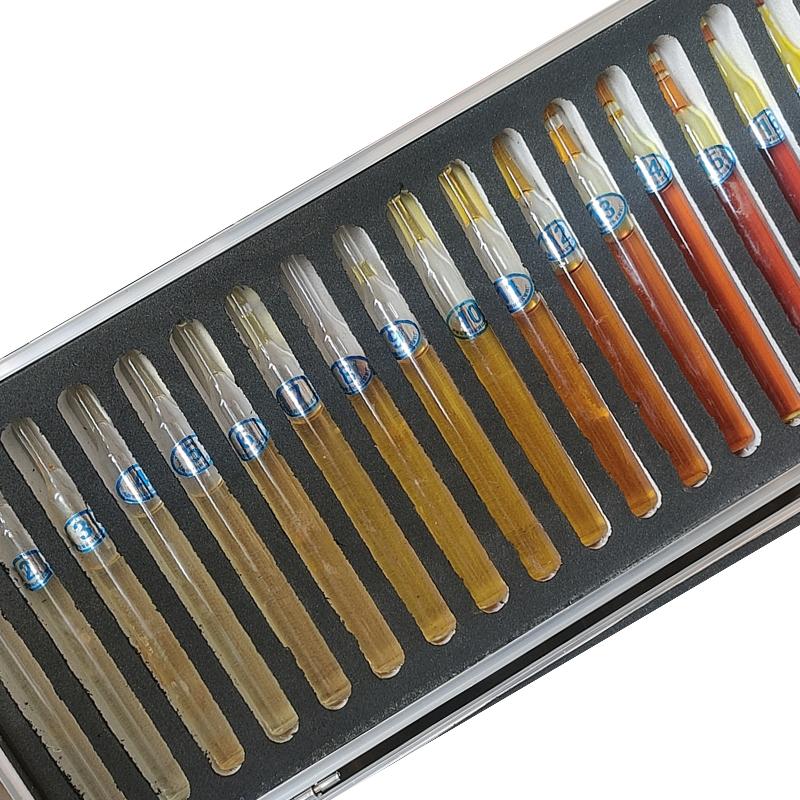

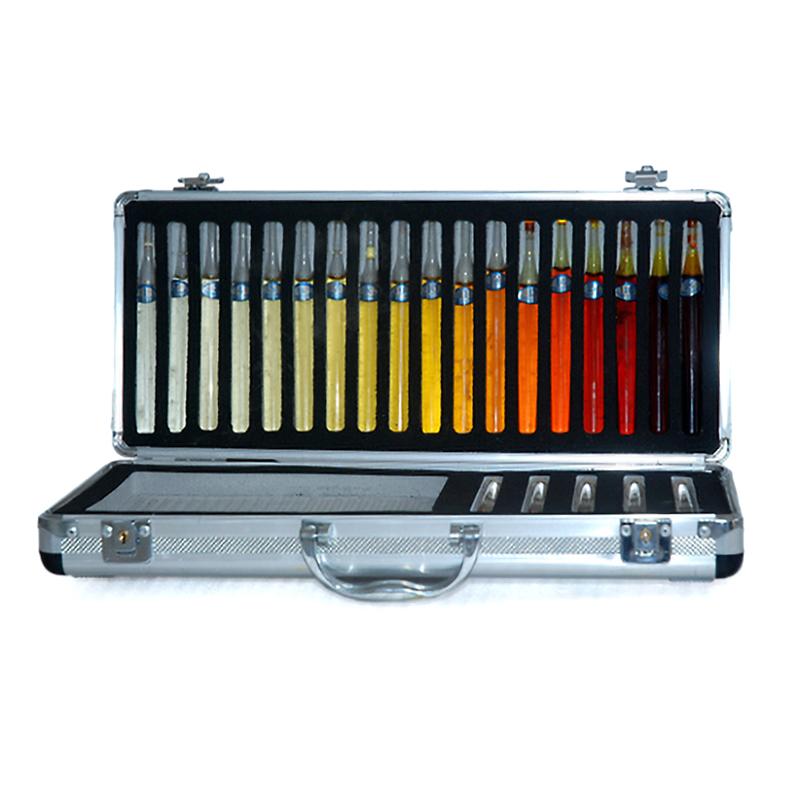

The QSG Iron-Cobalt Tintometer is designed according to GB/T 1722-92 standard and is suitable for the determination of varnish, clear oil and thinners Color. The instrument consists of 18 different concentrations of solutions composed of 0-18 color scale labels, and the color number is determined by comparing the sample Color with the color scale solution in the Color Assessment Cabinet. Glass testtube specifications are 10.75 +/- 0.05mm in inner diameter and 114 +/- 1mm in height.

Features

1. Designed according to GB/T 1722-92 standard 2. Provide 18 standard color levels 3. Color grade solutions are prepared according to national standards 4. Glass testtube with standard specifications 5. Suitable for varnish, oil and thinners Color determination

Principle

The iron-cobalt Tintometer uses ferric chloride, cobalt chloride and dilute muriatic acid solutions to prepare 18 different shades of color level solutions in standard proportions, aliquot in the sealing testtube. When measuring, the sample is loaded into the testtube, and the color of the sample is compared with the standard color level under the transmitted light of the dark box, and the closest color number is selected to indicate the sample Color.

Applications

Varnish, oil, thinners

Standards

GB/T 1722-92

Steps

1. Load the sample into the testtube 2. Observing in the Color Assessment Cabinet 3. Compare Sample Color with 18 Grades 4. Select the closest color scale 5. Color of the sample by color number

Notice

• The testtube needs to be sealed Measurements should be performed under Standard light source conditions • The color level solution needs to be prepared according to the standard • When comparing, it is necessary to observe under transmitted light • The larger the color number, the darker the Color.

performance indicators
GB/T1722-92
standard color scale
18th gear
Color scale solution
Formulated according to GB/T1722-92

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
